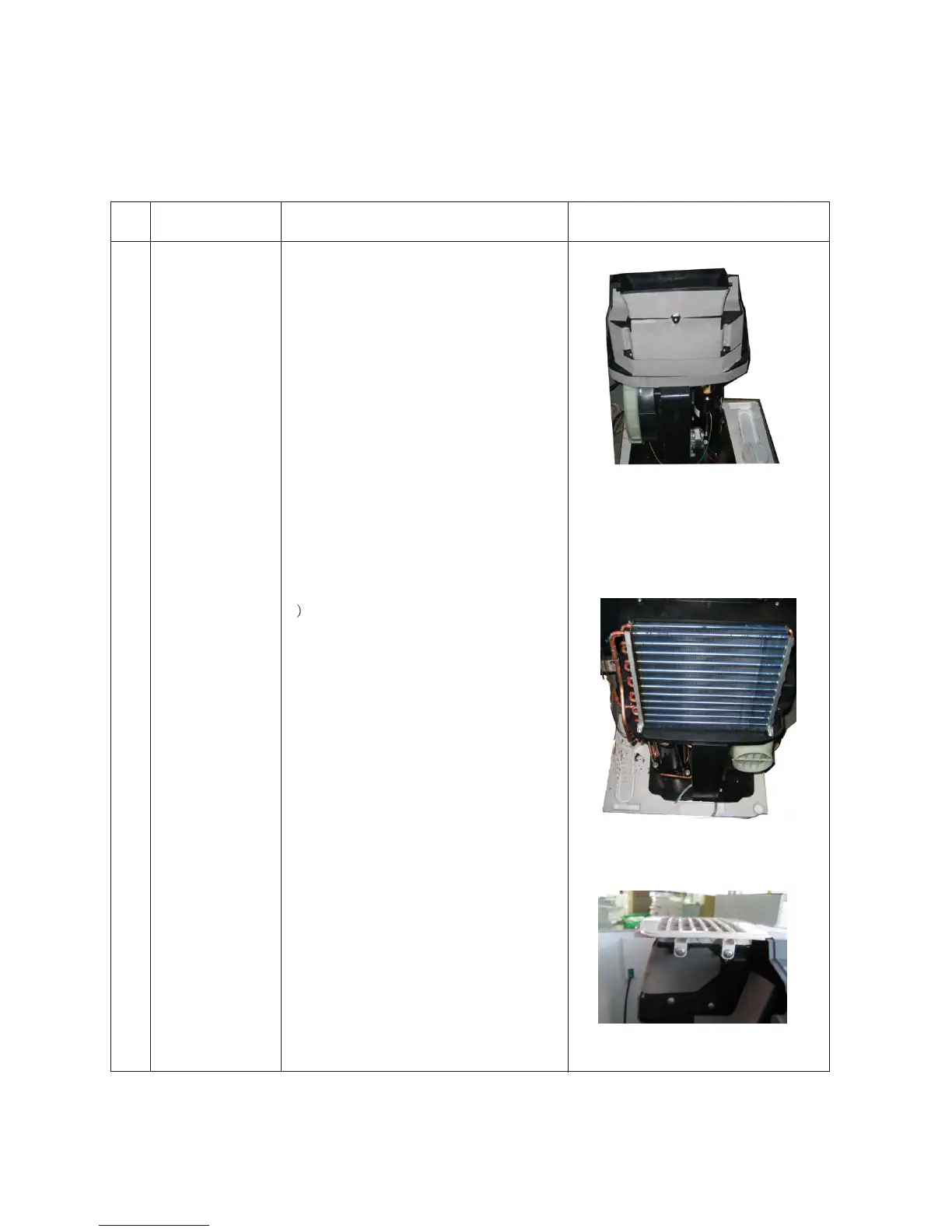

3.Disassenbly and reassembly
Before maintenance, switch off air conditioner and draw out the pin from power supply socket.
3-1 disassembly process
No
Components
Process
Remark
1
2
3
Front panel assembly
Back panel
1)similarly,using screwdriver loosen
bolts in front panel assembly and take
off front panel (2 bolts at upper,middle and
bottom respectively)
1 loosen bolts on the back panel and take
them off.
5
Components of
top cover board
loosen two bolts around the top cover board with
"+" shape screwdriver and take it off..
