Components
Process
Remark
6
7
8

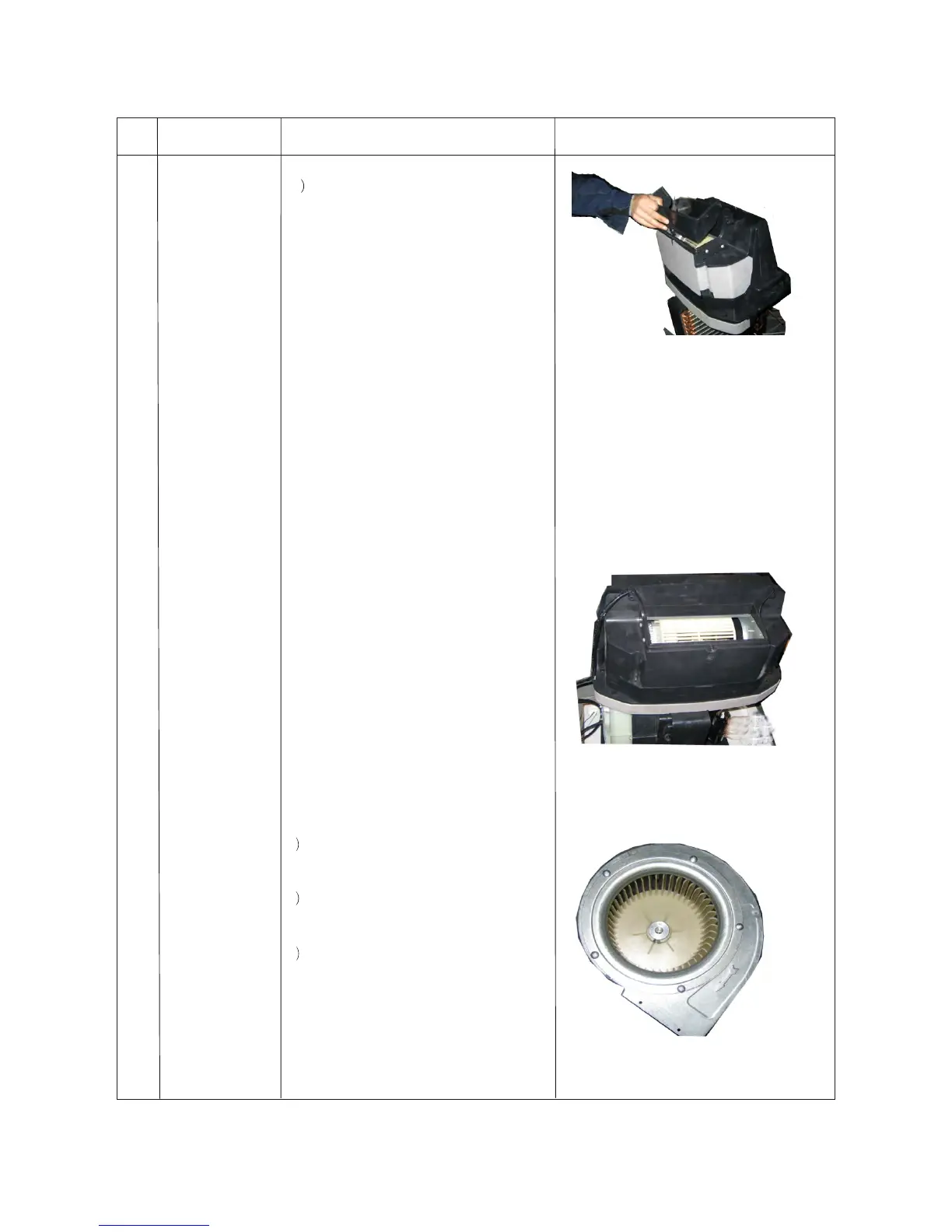

Air out-let vent assembly
Upper hodmadod shell B
1 loosen three bolts at both ends of synchronous motor
and take out the air out-let vent assembly.
1)loosen four bolts fixing upper hodmadod shell B(2 bolts at
evaporator side, 2 at outside) and take them out
7
Upper centrifugal fan
1 find the through hole position at middle of upper
centrifugal fan and rotate it into the position arrow indicating.
2 get through the hole on the direction of arrow by
screwdriver and loosen screw, and then take out screwdriver.
3 holding upper section of fan by hands and rotate slightly the
fan with force and lift it up at thesame time, and then take out the fan.
