4 Technical Information
4.1 Specications
CDL12P / CDL 10P
Owner’s Manual
12
4 Technical Information
4.1 Specifications
CDL 12P CDL 10P
Type Active 2-way Active 2-way
LF Driver 12” (2.5” Voice Coil) 10” (2.5” Voice Coil)
HF Driver 8x 2” (1” Voice Coil) 6 x 2”(1”Voice Coil)
Amplier Type Class D Class D
Total System Power 2000W Peak, 1000W Program (500W RMS) 2000W Peak, 1000W Program (500W RMS)
LF Driver Power 1000W Peak, 500W Program (250W RMS) 1000W Peak, 500W Program (250W RMS)
HF Driver Power 1000W Peak, 500W Program (250W RMS) 1000W Peak, 500WProgram (250W RMS)
Frequency Range (+/- 3dB) 48 Hz – 18 kHz 48 Hz – 18 khz
Crossover Frequency 420 Hz 420 Hz
Maximum Peak SPL 130 dB 130 dB
Horizontal Coverage 120˚ 120˚
Vertical Coverage 15˚ per enclosure 15˚ per enclosure
Input Line (XLR) Line (XLR)
Output Direct Line Out (XLR) Direct Line Out (XLR)
Mains Connection Locking 3 conductor AC connector In and Out Locking 3 conductor AC connector In and Out
DSP Functions HPF On/O, No. arrayed boxes, PreSonus
subwoofer conguration preset
HPF On/O, No. arrayed boxes, PreSonus
subwoofer conguration preset
Indicators Signal, -3 dB, Limiter, Clip Signal, -3 dB, Limiter, Clip
Enclosure 15 mm Polypropylene 15 mm Polypropylene
Mounting Dual-position pole mount (0˚ and 7.5˚),
Integrated Rigging (10:1 load)
Dual-position pole mount (0˚ and 7.5˚),
Integrated Rigging (10:1 load)
Dimensions (H x W x D) 18.7” x 20.7” x 17.5” (475 mm x 525 mm x
445 mm)
14.4” x 19.7” x 15.6” (365 mm x 500 mm x
395 mm)
Weight 63 lbs (28.6 kg) 46.8 lbs (21.2 kg)
Optional Accessories CDL12P-Tote Tote Bag CDL10P-Tote Tote Bag

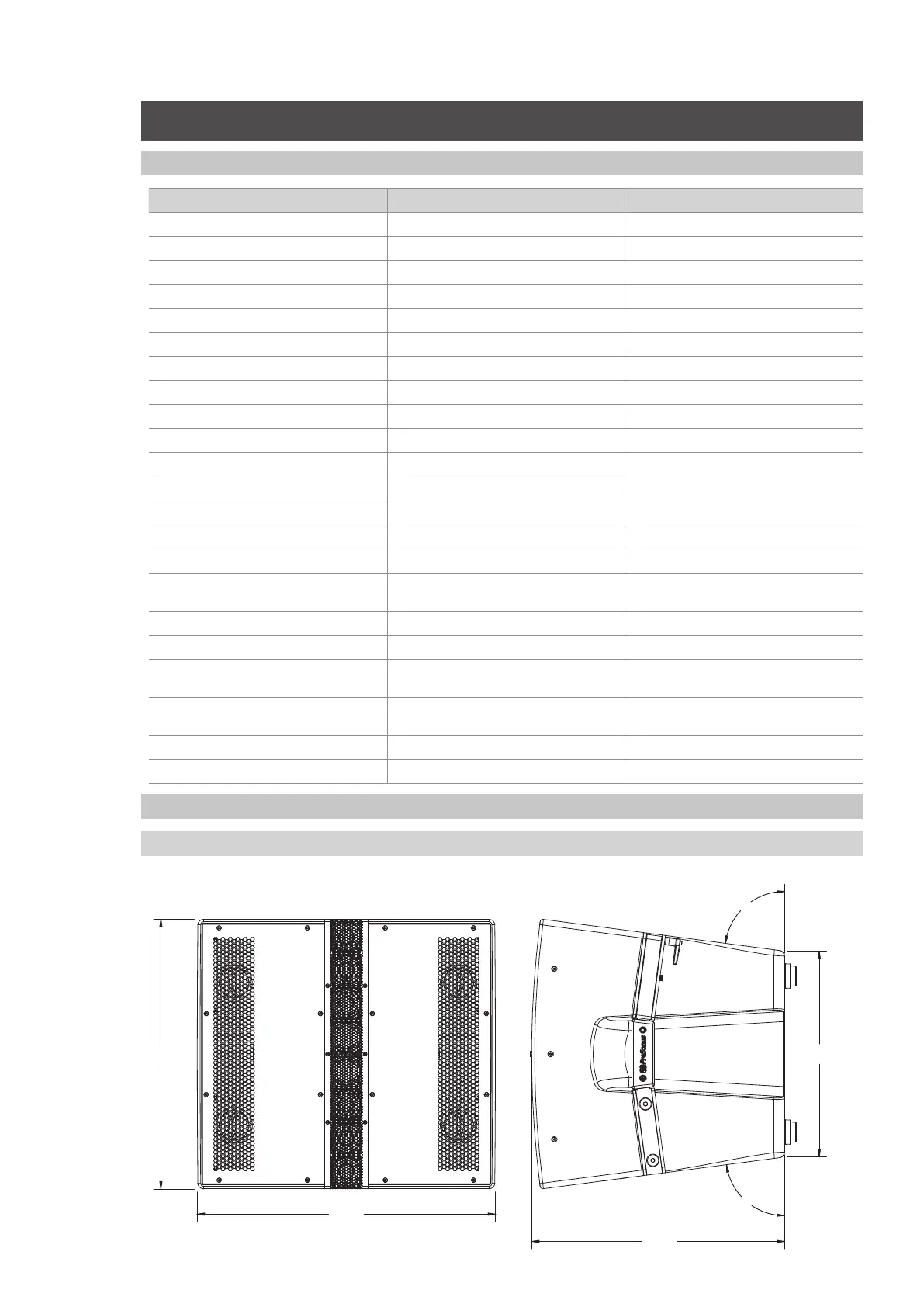

4.2 Mechanical Drawings
4.2.1 CDL 12P
82.50°
82.50°
475 mm
[18.7 in]
525 mm
[20.7 in]
445 mm
[17.5 in]
362 mm
[14.25 in]
CDL 12P
82.50°
82.50°
264 mm
[10.4 in]
395 mm
[15.6 in]
500 mm
[19.7 in]
365 mm
[14.4 in]
CDL 10P
