PRESONUS DIGIMAX - CONTROLS & CONNECTIONS; FRONT PANEL BASIC LAYOUT

2 CONTROLS & CONNECTIONS
8

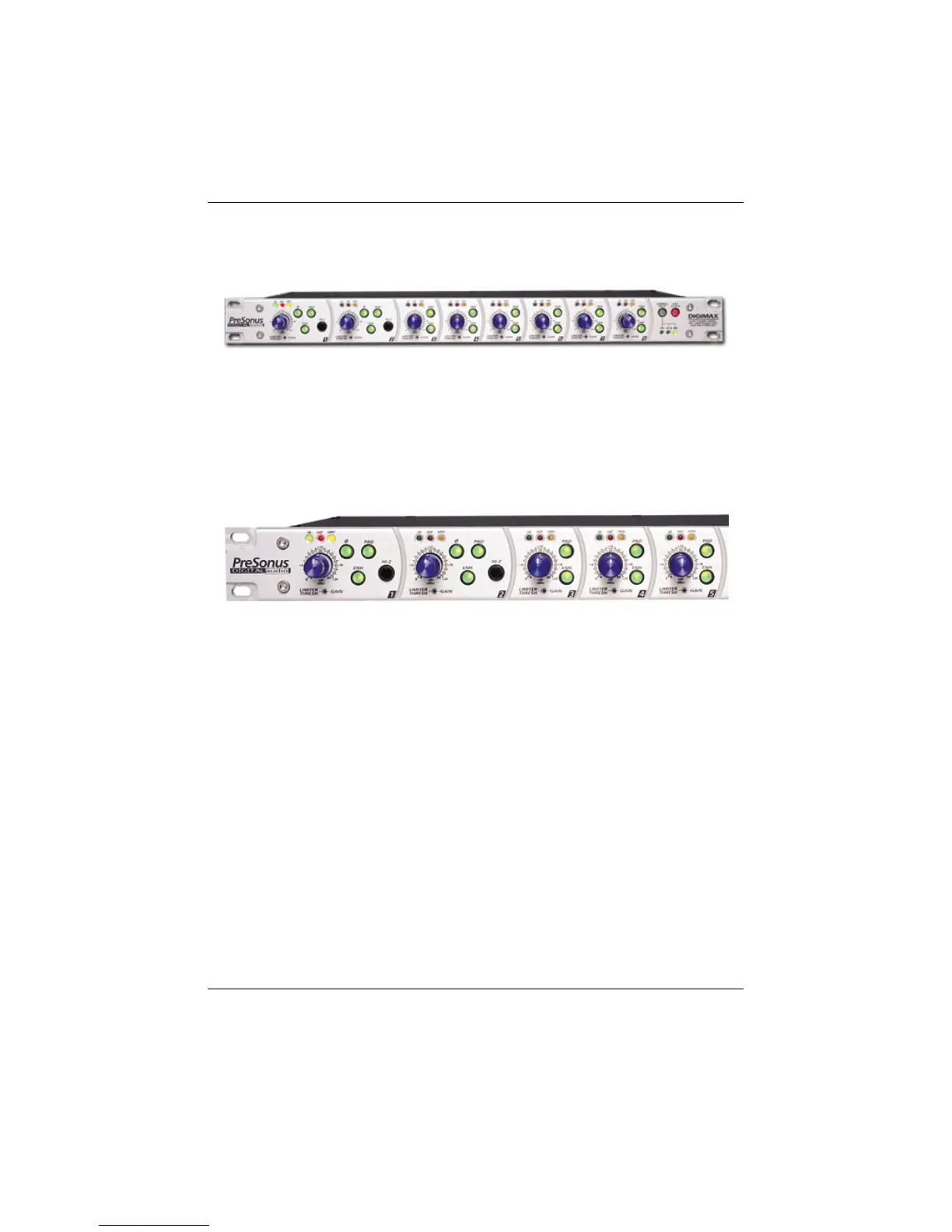

2.1 FRONT PANEL BASIC LAYOUT
Notice that the front panel is divided into Eight Preamplifier sections,
Sample Rate Selector with Indicators and External Clock Switch.
Channel One and Channel Two each have a Hi-Z input (Channel Three through
Channel Eight do not have a Hi-Z input).
Both Channels One and Two contain:
• Phase Reverse Switch
• -20dB Pad
• Enhancement Switch
• Hi-Z Input
• Dual Concentric Control
(Inner-Gain / Outer-Limiter Threshold)
• -20/Clip/Limit LED’s
Channels Three through Eight contain:
• PAD
