2 Hookup
2.1 Rear Panel Connections and Controls
2.1.1 Inputs

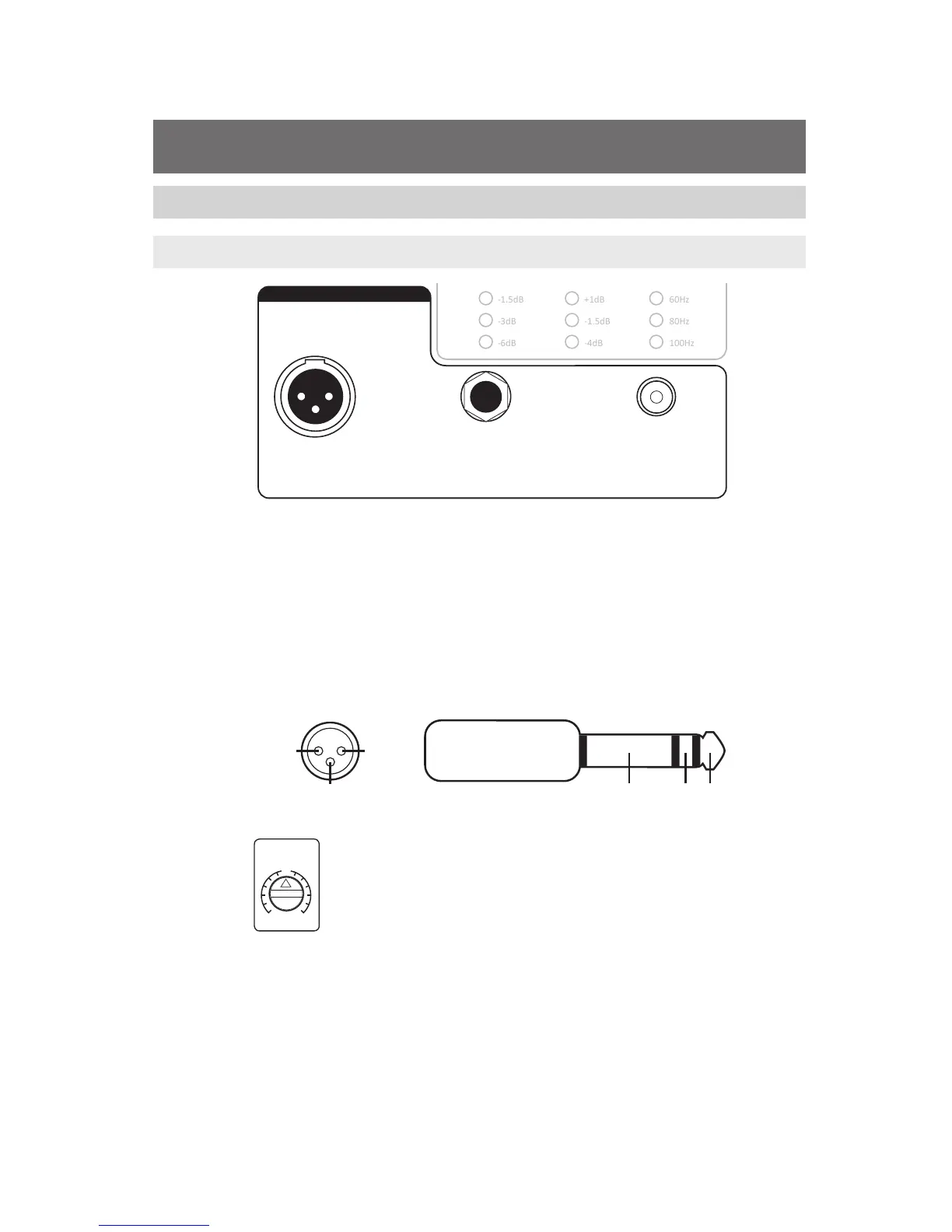

Line-level Inputs. The R65/R80 provides a choice of
three inputs: two balanced (XLR and 1/4” TRS) and one
unbalanced (RCA). These inputs accept a line-level signal
from your audio source and feed that signal to the monitor’s
built-in power amplifiers. When both balanced connections
are in use, the TRS input supersedes the XLR input.
Note: Make sure your audio source’s XLR or ¼” TRS
wiring corresponds to that of the R65/R80.
Input Level: Sets the amount of gain applied to the
input signal. This is not a volume control in the traditional
sense; instead, it sets the level of the input signal before
it is amplified.
