Prestige 420 - Page 37

- 37 -

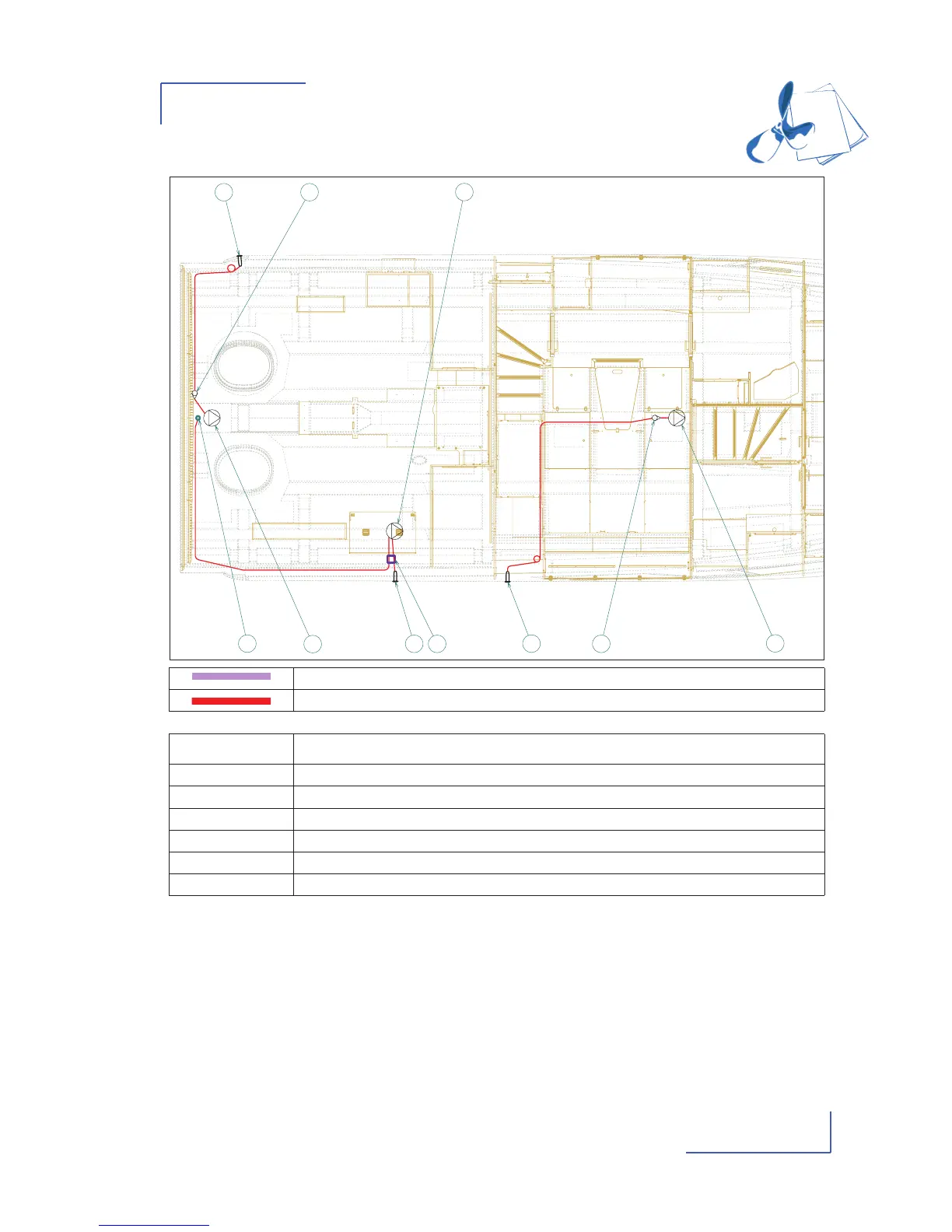

Diagram of the layout - Drying out the bilge
Pipe - Bilge pump system (20 mm diameter)
Pipe - Bilge pump system (25 mm diameter)
Reference Designation
1 Electric bilge pump (Engine compartment)
2 Manual bilge pump
3 Non-return valve
4 Intake strainer
5 Thru-hull fitting - Bilge pump draining
6 Connector
5
3
1
2
1
4
3
5
5
6
5
E
M
E
SAFETY
