Prestige 420 - Gas System Layout Diagrams

- 90 -

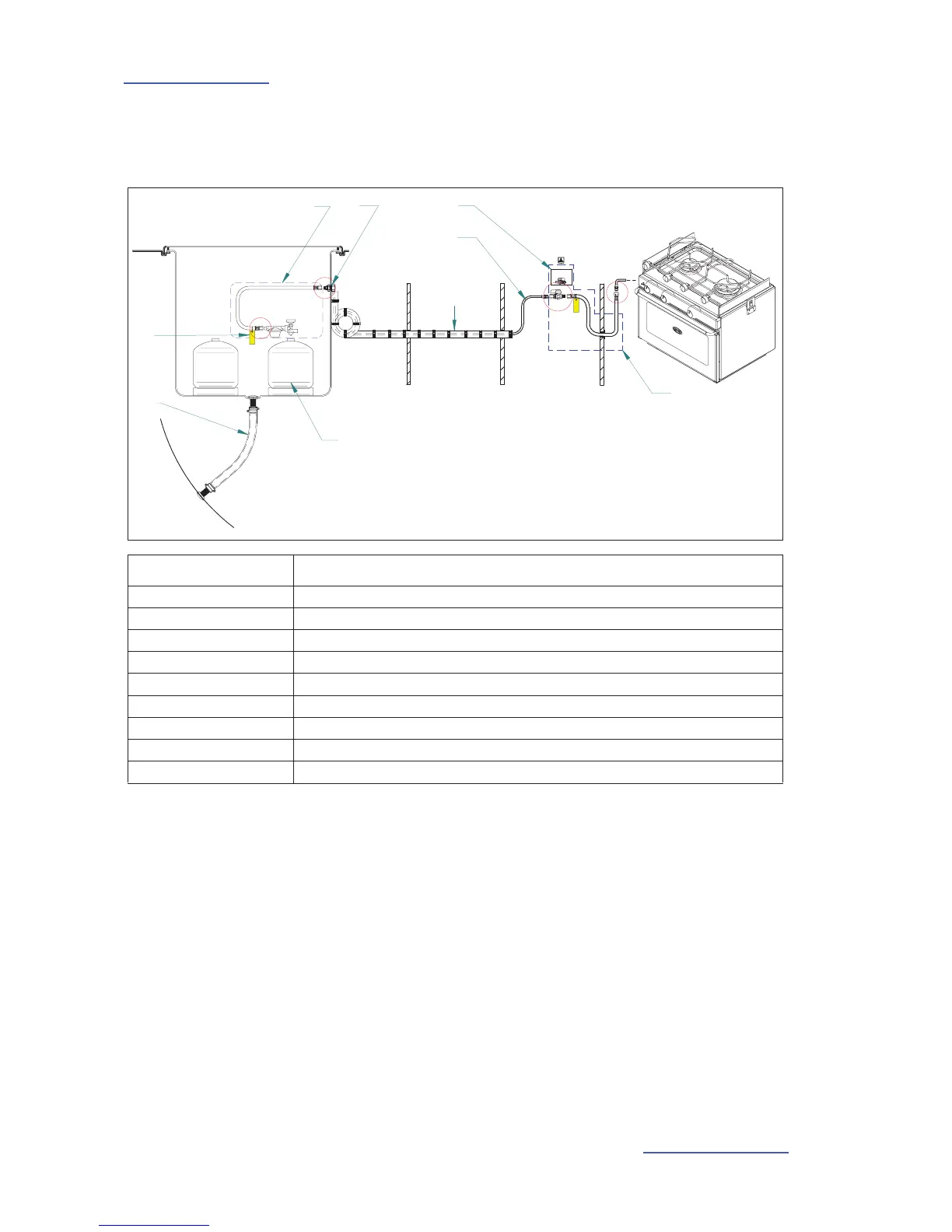

8.2 LAYOUT DIAGRAM
Version: Europe
Reference Designation
1 Regulator valve
2 Gas cylinder
3 Drain
4 Connection kit - gas bottle
5 Rubber washers
6 Pictogram
7 Connection kit - gas copper
8 PVC girdled sleeve
9 Gas appliance connection kit
gaz
GAZ
8
3
2
4
1
6
9
7
5
