OPERATION
Waste water from the sink, washbasins and heads is drained off by thru-hull fittings with ball
valves (the valve is closed when the valve handle is perpendicular to the hose, the valve is
open when the valve handle is in line with the hose).
All the floors have holes (limber holes) for the water flow.
A watertight bilge tray under the engine receives the possible oil leaks.
A main sump located above the ballast receives water from the bilges.
The main sump is partially drained by an electric or a manual pump. Regularly dry the sump
with a sponge.
Close the valves and turn off the taps after use.

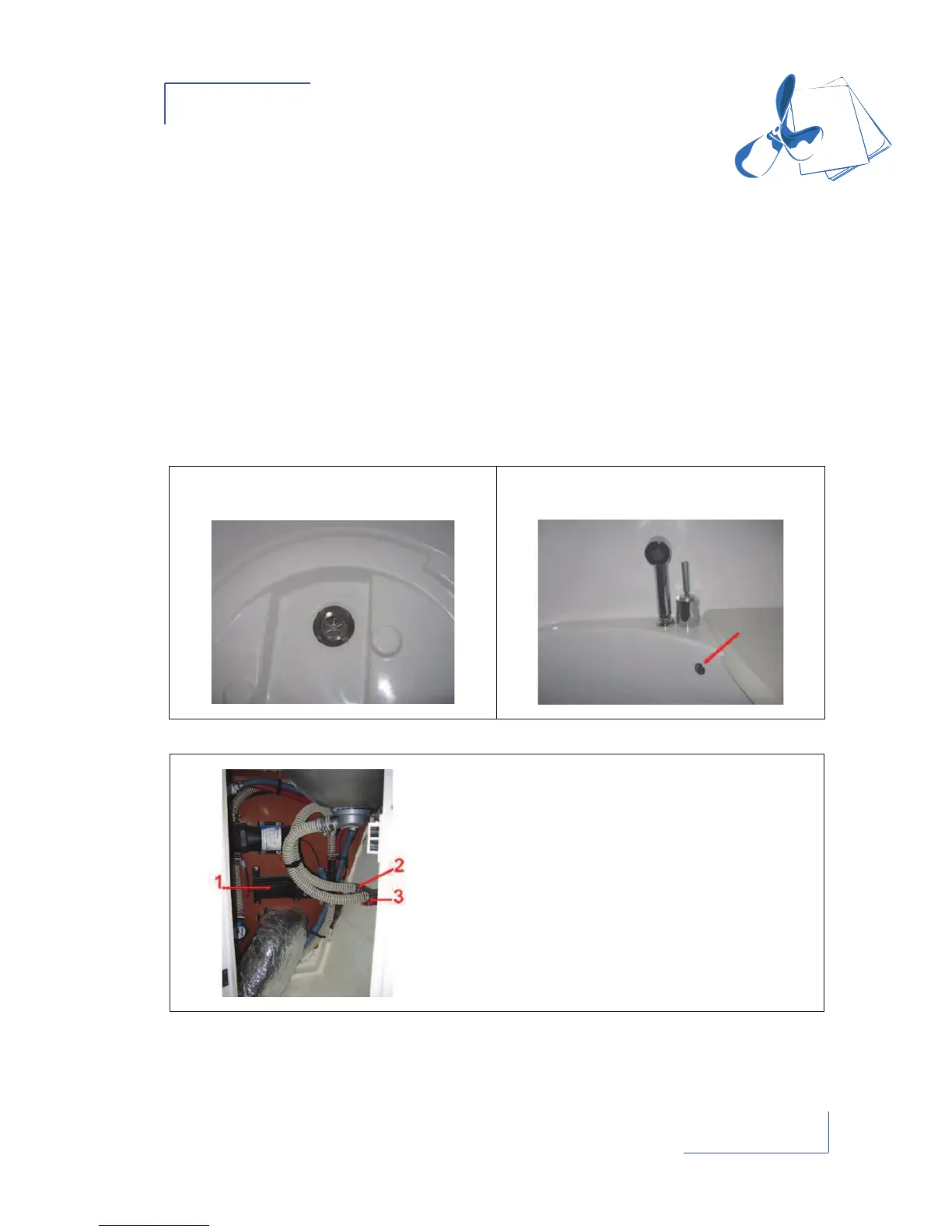

WASHROOM DRAINING
Shower
Drain plug - Drainage
Control
Draining pump for shower
1. Draining pump for shower
2. Shower draining
3. Washbasin draining
