Start Inhibit Relay
(When Used)
Remote Start Connection
Neutral Safety Switch
Closed In Park & Neutral
In both mechanical and electrical neutral start switch congurations, the connection of the Yellow wire
will be made to the low current start solenoid wire of the ignition switch harness. This wire will have +12
volts when the ignition switch is turned to the start (crank) position only. This wire will have 0 volts in all
other ignition switch positions.
NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the
electrical neutral switch conguration, this connection must be made between the starter inhibit relay,
(when used) and the neutral safety switch as shown in the following diagram.
WARNING! Failure to connect this wire to the ignition switch side of the of the neutral safety switch can
result in personal injury and property damage.
SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.

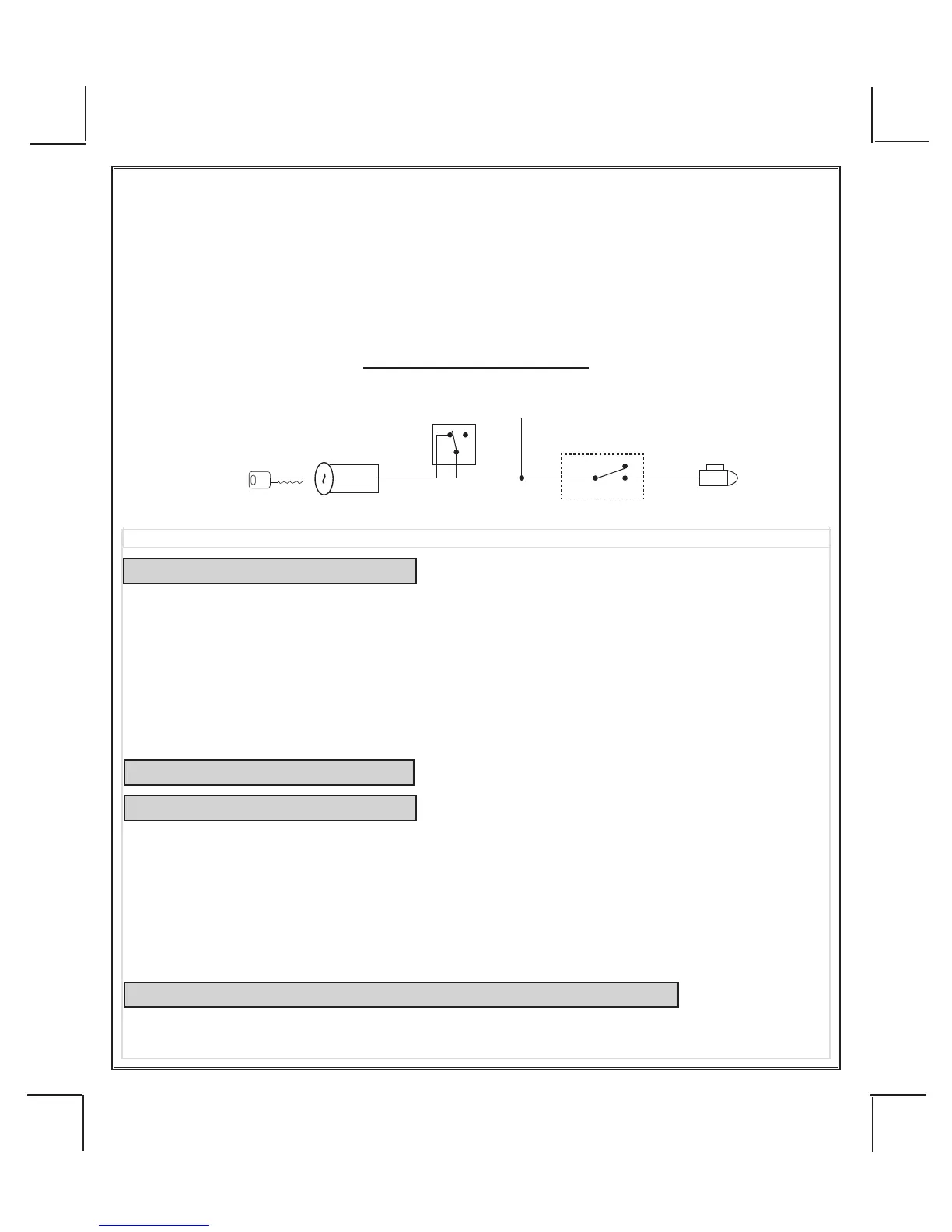

YELLOW START WIRE DETAIL
WIRING CONNECTIONS: 20 Pin Accessory Input/Output Harness PART # 1124324
1 Brown Wire: (-) Negative Door Trigger
If the vehicle's door courtesy light switches ground when the door is opened, (Most GMs and Imports),
you must connect this wire to the negative output from one of the vehicle's door pin switches. In most
cases the Brown wire will need to be connected to only one door switch no matter how many doors the
vehicle has as most door lighting circuits are wired in parallel. This wire will be shunted when remote
starting the vehicle and will remain shunted, if active, while running under command of the remote start.
If this wire is active when the system is armed, the siren will emit three chirps. When the zone clears,
the siren will emit 1 chirp to conrm full arming.
NOTE: for vehicles with interior delay lighting see programming under title "Completing The Installa-
tion"
2 Empty Cavity / No Connection
3 Purple Wire: (+) Door Trigger Input
If the vehicle's door courtesy light switches + 12 volts when the door is opened, (Some Fords and some
Imports), you must connect this wire to the positive output from one of the vehicle's door pin switches. In
most cases, the Purple wire will need to be connected to only one door switch no matter how many doors
the vehicle has as most door lighting circuits are wired in parallel. This wire will be shunted when remote
starting the vehicle and will remain shunted, if active, while running under command of the remote start.
If this wire is active when the system is armed, the siren will emit three chirps. When the zone clears,
the siren will emit 1 chirp to conrm full arming.
Note: for vehicles with interior delay lighting see programming under title "Completing The Installation"
4 Brown w/ Black trace Wire: Positive Inhibit Input Plus Trigger When Armed
The Brown w/ Black Trace wire provides an instant shutdown for the Remote Start Control module whenever
it gets + 12 volts also triggers the alarm when armed. If the Brake lights switch in the vehicle switches
