PREVOST PA1561 User Manual

Section 00 : GENERAL INFORMATION
PA1561 5

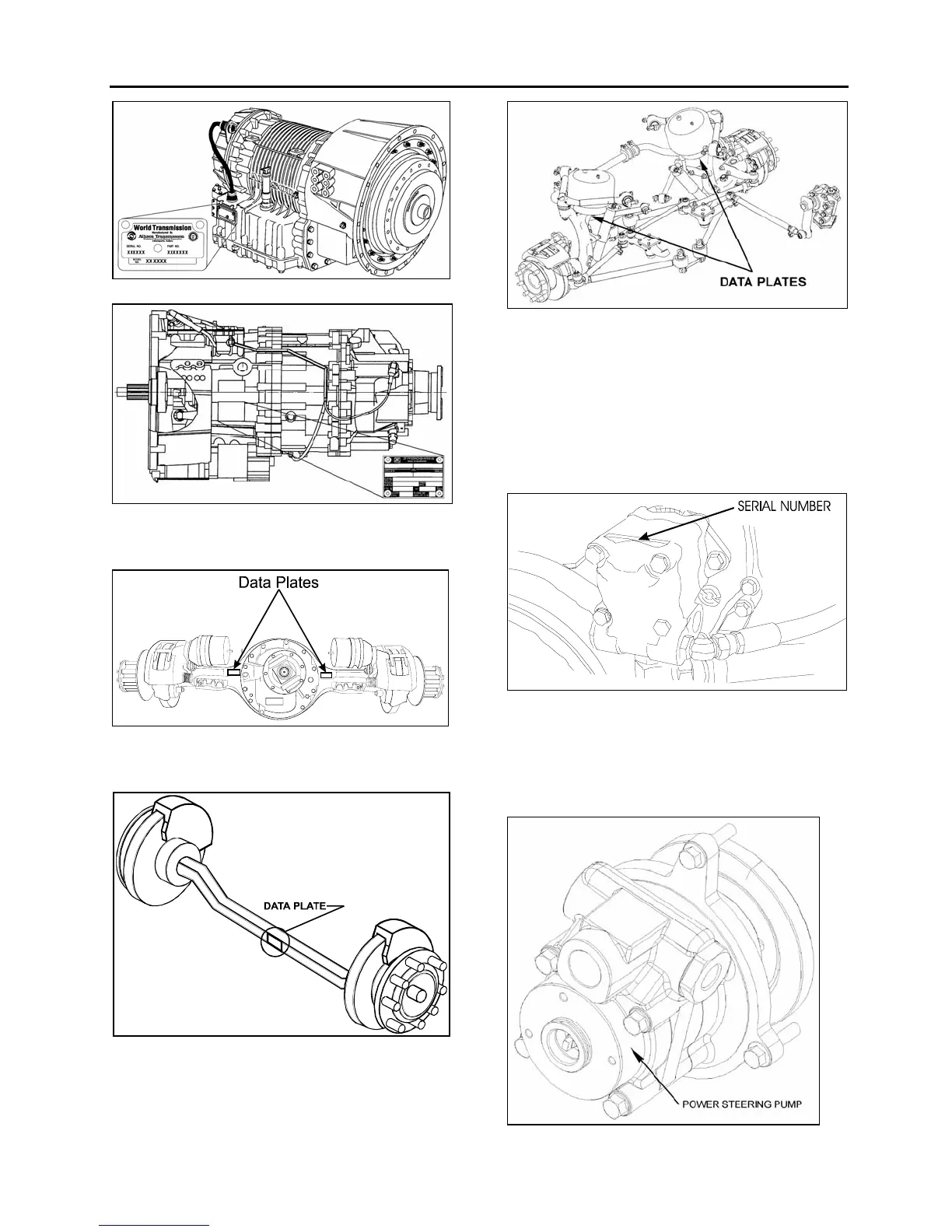

FIGURE 3: WORLD TRANSMISSION 07076
FIGURE 4: ZF-ASTRONIC TRANSMISSION 00040
4.1.3 Drive Axle
FIGURE 5: TYPICAL SERIAL & MODEL NUMBERS 11019
4.1.4 Front Axle
FIGURE 6 : TYPICAL SERIAL AND MODEL NUMBERS
10024
FIGURE 7: ISS TYPICAL SERIAL & MODEL NUMBERS0025
4.1.5 Power Steering Pump
• DDC Series 60 Engine
Power steering pump serial number is engraved
on the pump casing (Fig. 8). The pump is
mounted on the engine beside the crankshaft
pulley.
FIGURE 8 : POWER STEERING PUMP SERIAL NUMBER
00035
• Volvo D13 Engine
Power steering pump is mounted on the engine
and located underneath the air compressor
(Fig.9).
FIGURE 9: POWER STEERING PUMP
