Vehicle Exterior
Most serviceable parts may be accessed
through exterior compartments. There may be
slight differences in the location of parts and in
the configuration of compartments between
models, depending on options.

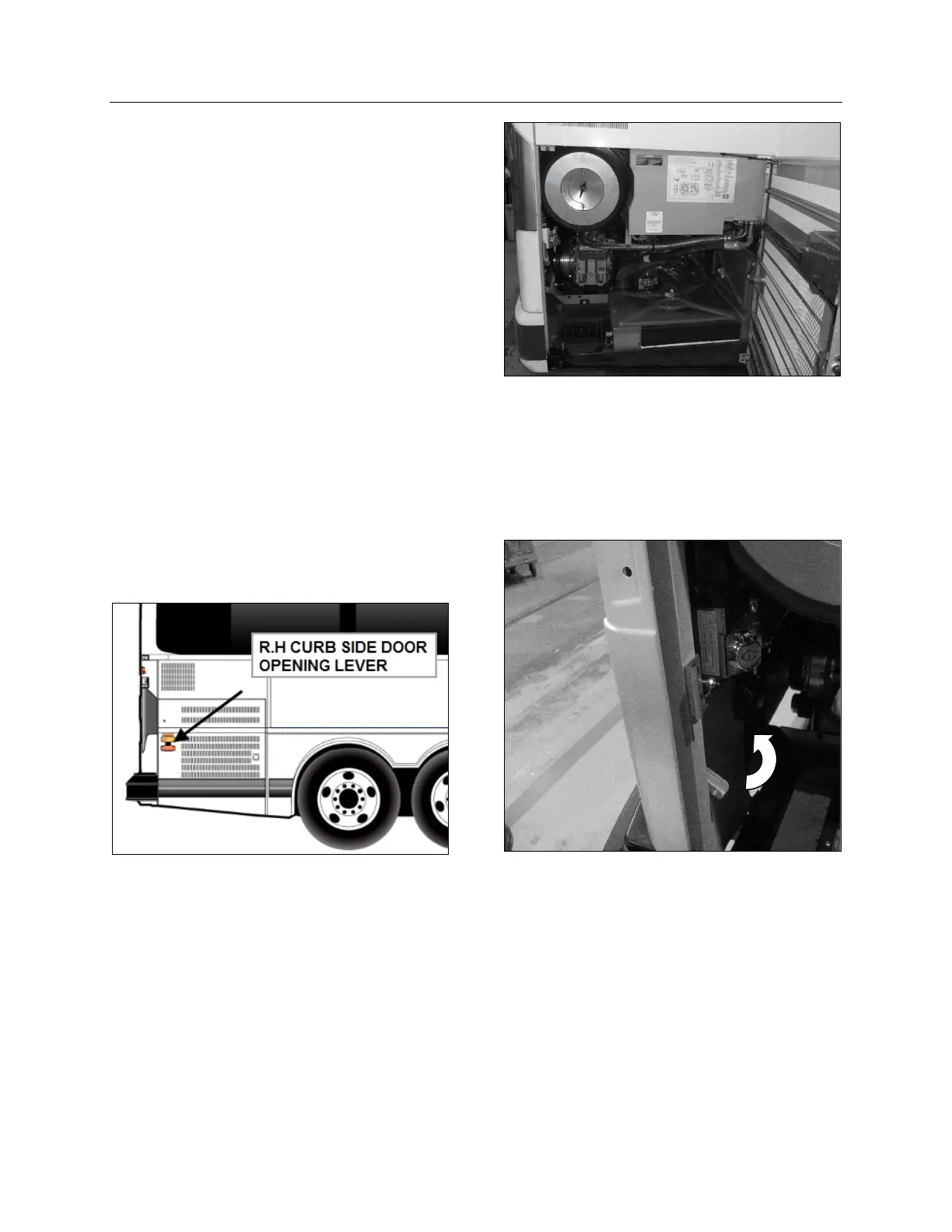

ENGINE COMPARTMENT R.H. SIDE DOOR
The engine compartment R.H. side door
provides access to the following (if equipped):
o Engine compartment rear door release
lever;
o Batteries;
o Battery equalizer;
o Rear Electrical Panel;
o Rear Junction Panel;
o Booster terminals;
o Primary air circuit fill valve and drain cock;
o Fuel filter/water separator;
o 110-120 volt connector.
o A/C Compressor.
ENGINE COMPARTMENT R.H. DOOR 18559_2
This door can be locked or unlocked using the
exterior compartment key or, if so equipped, by
the central door locking system. To open, push
sideways the small lever located between the
marker lights.
ENGINE COMPARTMENT R.H. SIDE 18607_1
ENGINE COMPARTMENT REAR DOOR
To open the engine compartment rear door,
open the engine compartment curb side door
and pull the yellow handle located on the rear
door, grab the side of the door in the middle, pull
and lift the door.
OPENING THE ENGINE COMPARTMENT REAR DOOR
FROM R.H. SIDE DOOR
18608
