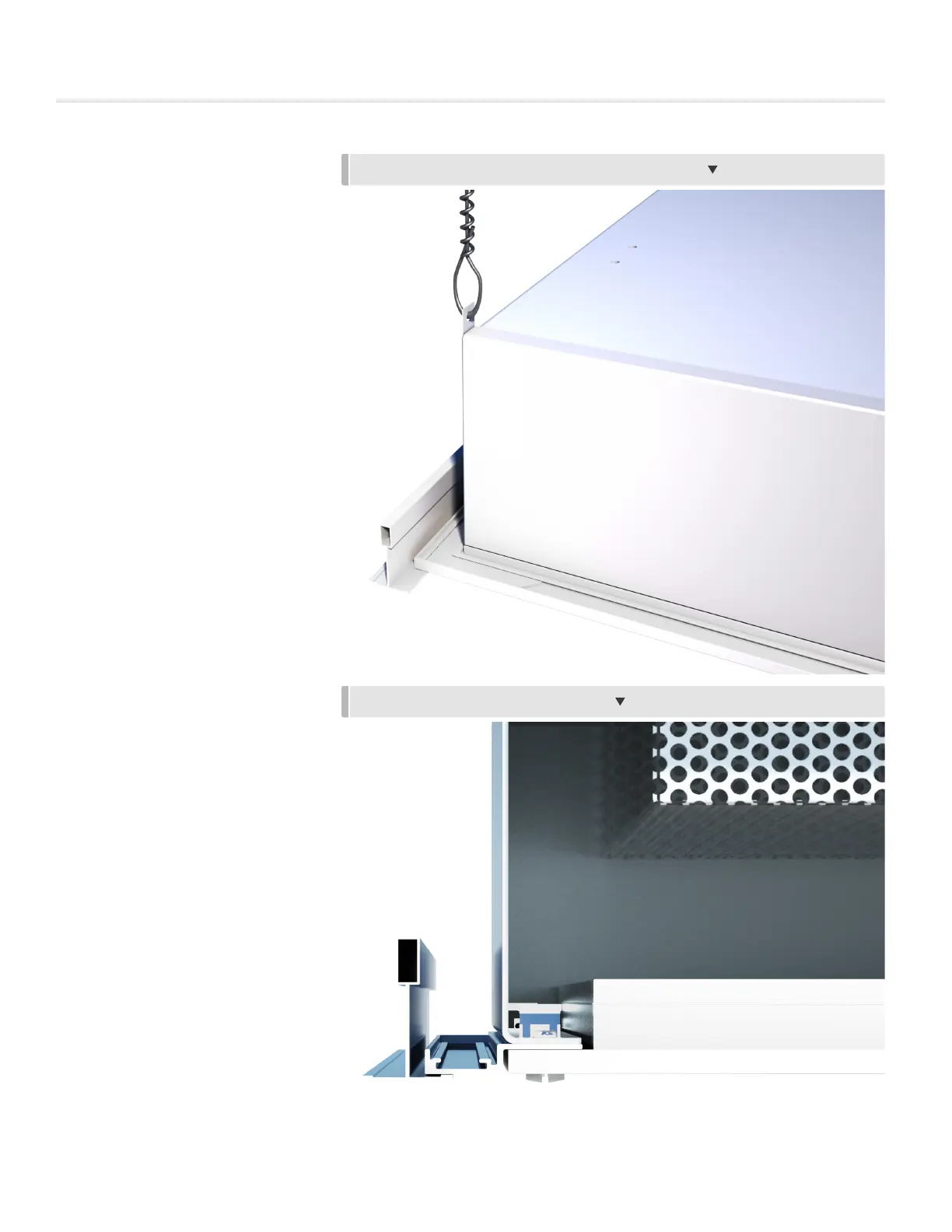

FIGURE 2: LAY THE DIFFUSER ON THE T-BAR TO MOUNT
FIGURE 3: T-BAR MOUNTING (CUTAWAY)
T-Bar Mounting
Step 4: Ensure product size is
consistent with grid module size.
Step 5: Lay the Diffuser on the T-bar
so that all 4 sides are resting evenly on
the grid. Use shims to center diffuser if
required (Figures 2 & 3).
Step 6: Secure the diffuser with hanger
wire at all four corners, or other field-
approved support method.
