III. YOUR SCOOTER
Hi-Low Switch
This switch toggles the scooter’s speed between HI
and LOW.
Toggle the switch forward (HI) and your scooter’s
maximum speed is 12.87 km/h (8 mph).
Toggle the switch rearward (LOW) and your
scooter’s maximum speed is 6.43 km/h (4 mph).
Handbrake Lever
This lever provides you with emergency stopping
power. When in motion, release the throttle control
lever and gently squeeze the handbrake lever to come
to a stop.
The handbrake can be locked and used as as a parking
brake by squeezing the handbrake lever fully and
moving the brake lock to the locked position. See fig-
ure 5. To release the brake lock, fully squeeze the
hand brake.
WARNING! The handbrake is
intended for use as an emergency
brake and or parking brake only.
Off-board Charger Port
The off-board charger power lead plugs into this port
during battery charging. The off-board charger port
will be located on the tiller. See figure 6.
Electrical System Fuses
Your scooter is equipped with a series of electrical
system fuses, which help protect the off-board charg-
ing system, key switch and lighting system from
receiving an overload of electrical current. These
fuses are the same type used in automobiles and are
located in a compartment on the tiller. See figure 7.
NOTE: Keep all electrical areas clean and free of
moisture and foreign material.

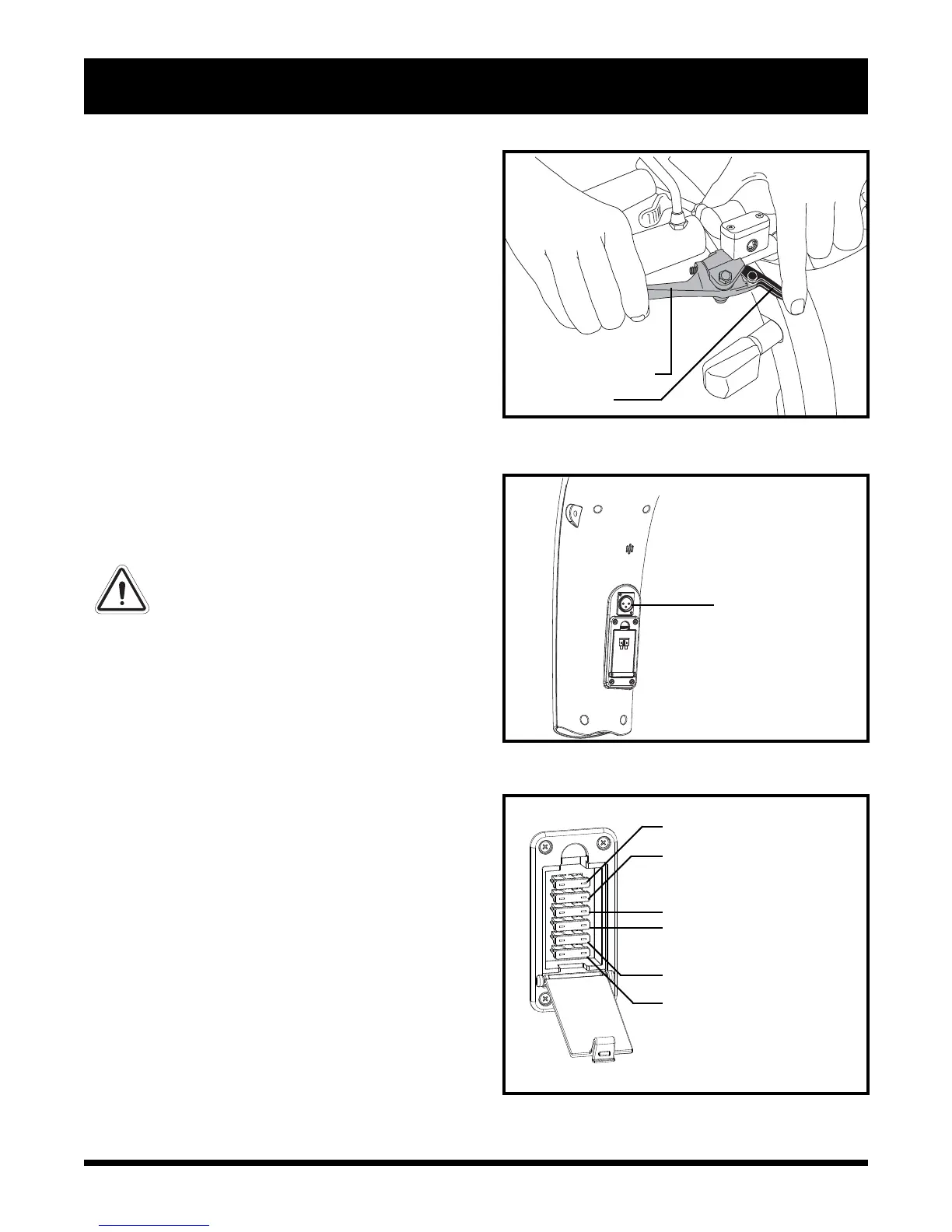

Figure 6. Off-board Charger Port (Tiller Mounted)
Figure 7. Tiller Console Fuses
OFF-BOARD
CHARGER PORT
KEY SWITCH (5A)
OFF-BOARD CHARGER (10A)
REAR TAIL LIGHTS (1A)
LOWER HEADLIGHT (1A)
RIGHT TURN INDICATOR (1A)
LEFT TURN INDICATOR (1A)
Figure 5. Handbrake Lever and Brake Lock (In The
Locked Position)
BRAKE LOCK
HANDBRAKE LEVER
