1. Battery Connectors
2. Controller Power Module
3. Controller Connector
4. Motor Connectors
5. Main Circuit Breaker
Identification Key
III. YOUR POWER CHAIR

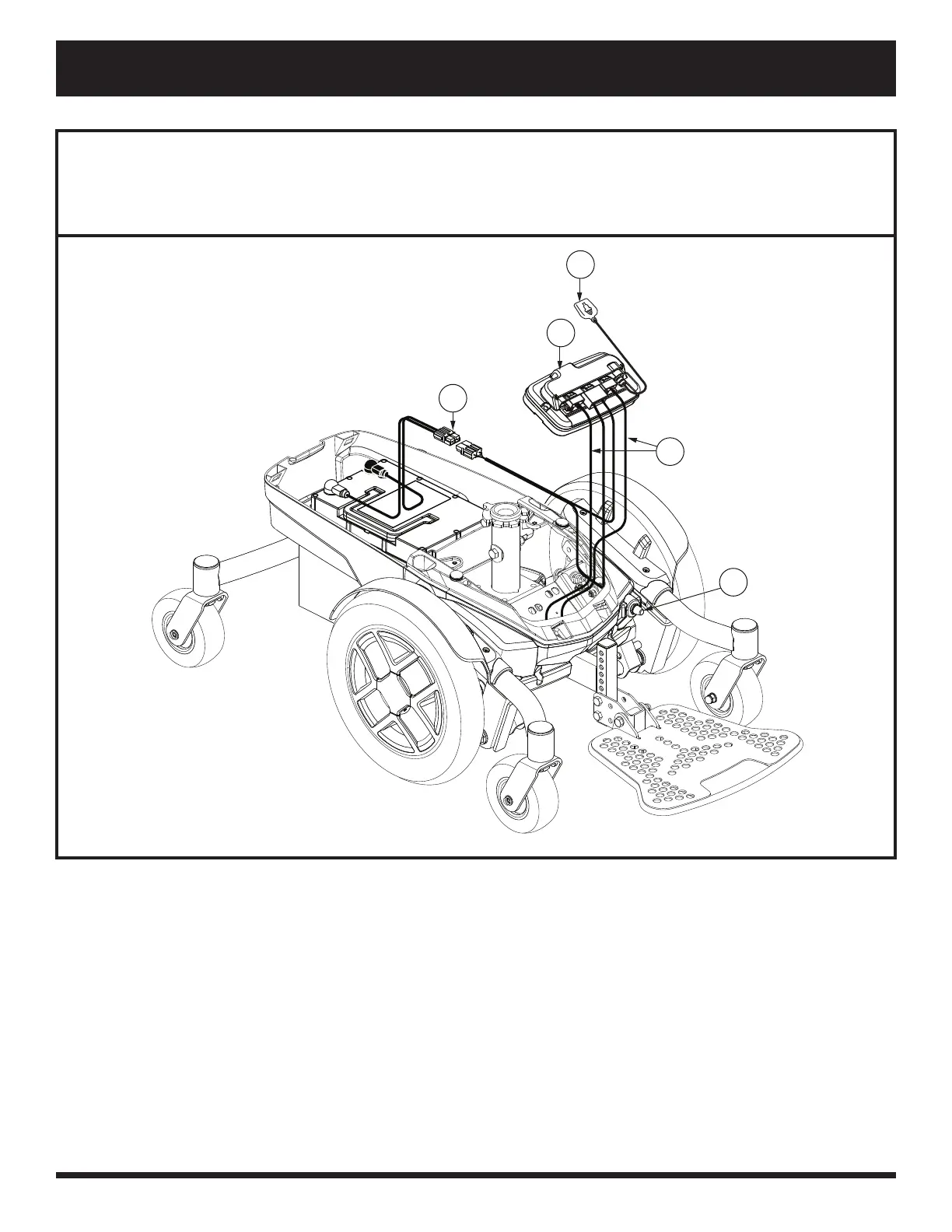

Figure 4. Jazzy EVO 613 Li with Lithium Batteries Electrical Components
2
1
3
5
4
