Pride Mobility Jazzy EVO 613 - COMFORT ADJUSTMENTS

Jazzy EVO Series www.pridemobility.com 13
V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may nd the need to make some adjustments to
increase your comfort, such as seat height, armrest angle, foot platform height and angle, and controller position.
Refer to the following information before making comfort adjustments.
NOTE: If your power chair is equipped with an optional seating system, please refer to the information provided
in separate manuals.
WARNING! The center of gravity of your power chair was factory set to a position that meets
the needs of the demographic majority of users. Your authorized Pride Provider has evaluated
your power chair and made any necessary adjustments to suit your specic requirements. Do
not change your seating conguration without rst contacting Pride Mobility Products or your
authorized Pride Provider.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specications table for specic component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the power chair before making any adjustments.
Seat Height Adjustment
You can change the seat height to one of three
positions in 1-in. (2.5-cm) increments.
To change the seat height:
1. Turn o the power to the controller.
2. Ensure the power chair is in drive mode. See
gure 5.
3. Disconnect the controller connector from the
power base. See gure 8.
4. Disengage the seat release lever. See gure 8.
5. While holding the lever, swivel the seat left or
right and then pull it up and o of the power
base.
6. Loosen the hardware at the rear of the seat post.
See gure 8.
7. Remove the seat height adjustment bolt, washers,
and nut from the seat post. See gure 8.
8. Raise or lower the seat post to the desired
position.
9. Reinstall the seat height adjustment hardware to
the seat post.
10. Tighten the hardware at the rear of the seat post.
11. Reinstall the seat.
12. Reconnect the controller to the power base.
NOTE: To rotate the seat, use the seat release lever
located under the seat.

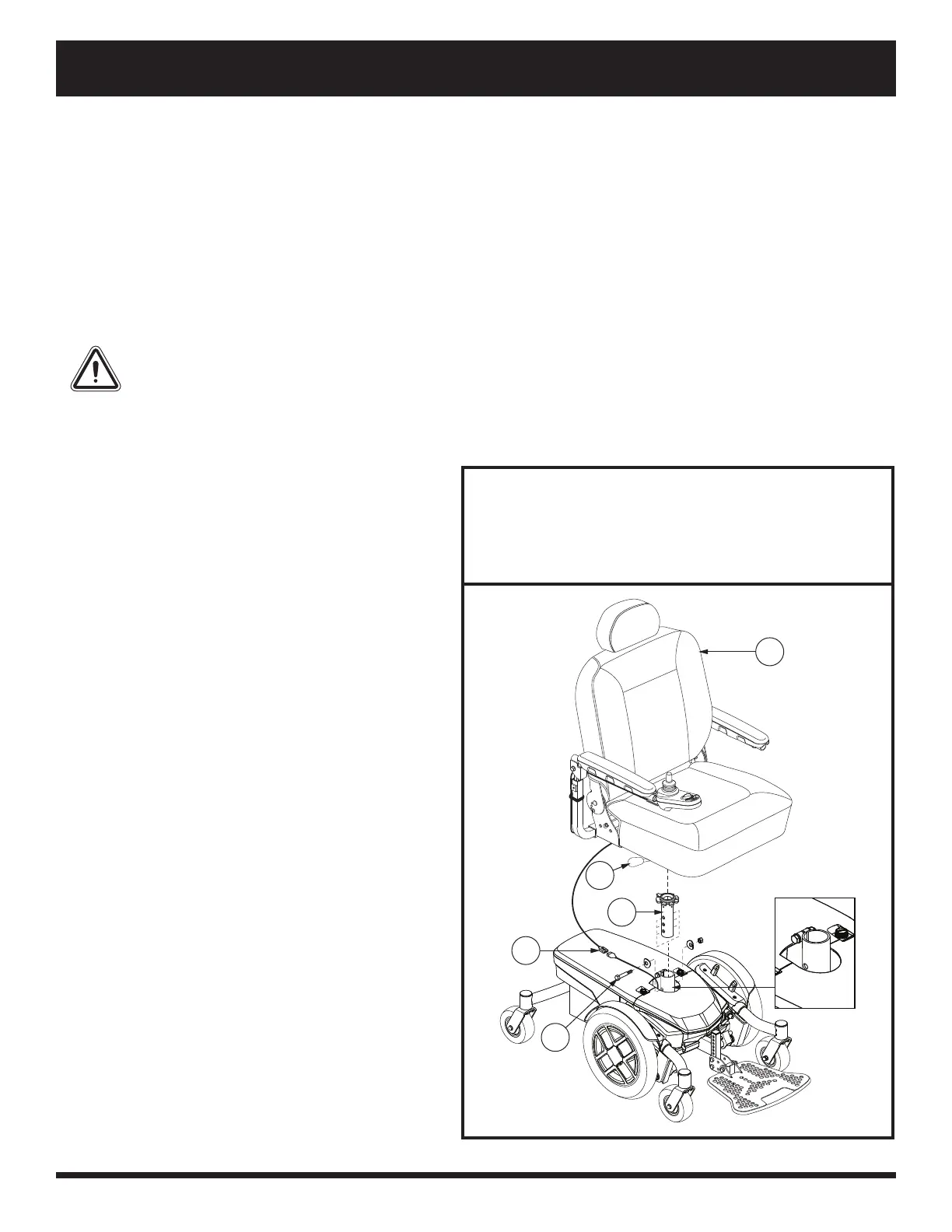

Figure 8. Seat Height Adjustment
1. Seat
2. Seat Post
3. Seat Height
Adjustment Bolt
4. Controller Connector
5. Seat Release Lever
Identification Key
1
5
2
4
3
