III. YOUR POWER CHAIR
THE JAZZY EVO 613 POWER CHAIR
The Jazzy EVO 613 Power Chair has two main assemblies: the seat assembly (A) and the power base assembly (B).
See gure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly
includes two motor/brake assemblies, two drive wheels, two batteries, and wiring harnesses. See gures 1, and 2.

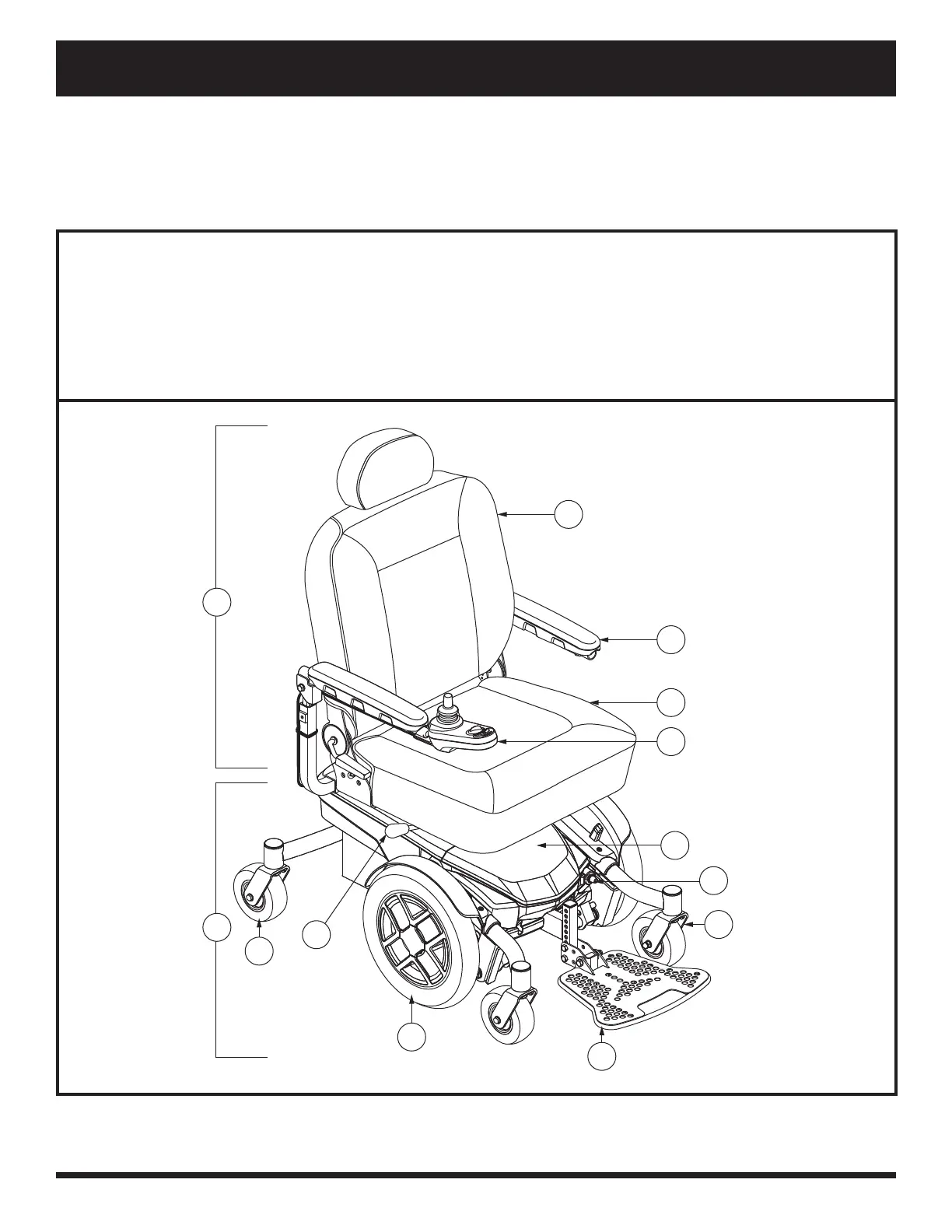

Figure 1. The Jazzy EVO 613 Power Chair
1. Seatback
2. Armrest
3. Seat Base
4. Controller
5. Top Shroud
6. Main Circuit Breaker
7. Front Caster Wheel
8. Front Riggings (Foot Platform Shown)
9. Drive Wheel
10. Seat Release Lever
11. Rear Caster Wheels
Identification Key
A
B
1
2
3
5
7
8
9
11
4
6
10
