24 www.pridemobility.com Jazzy Select 7

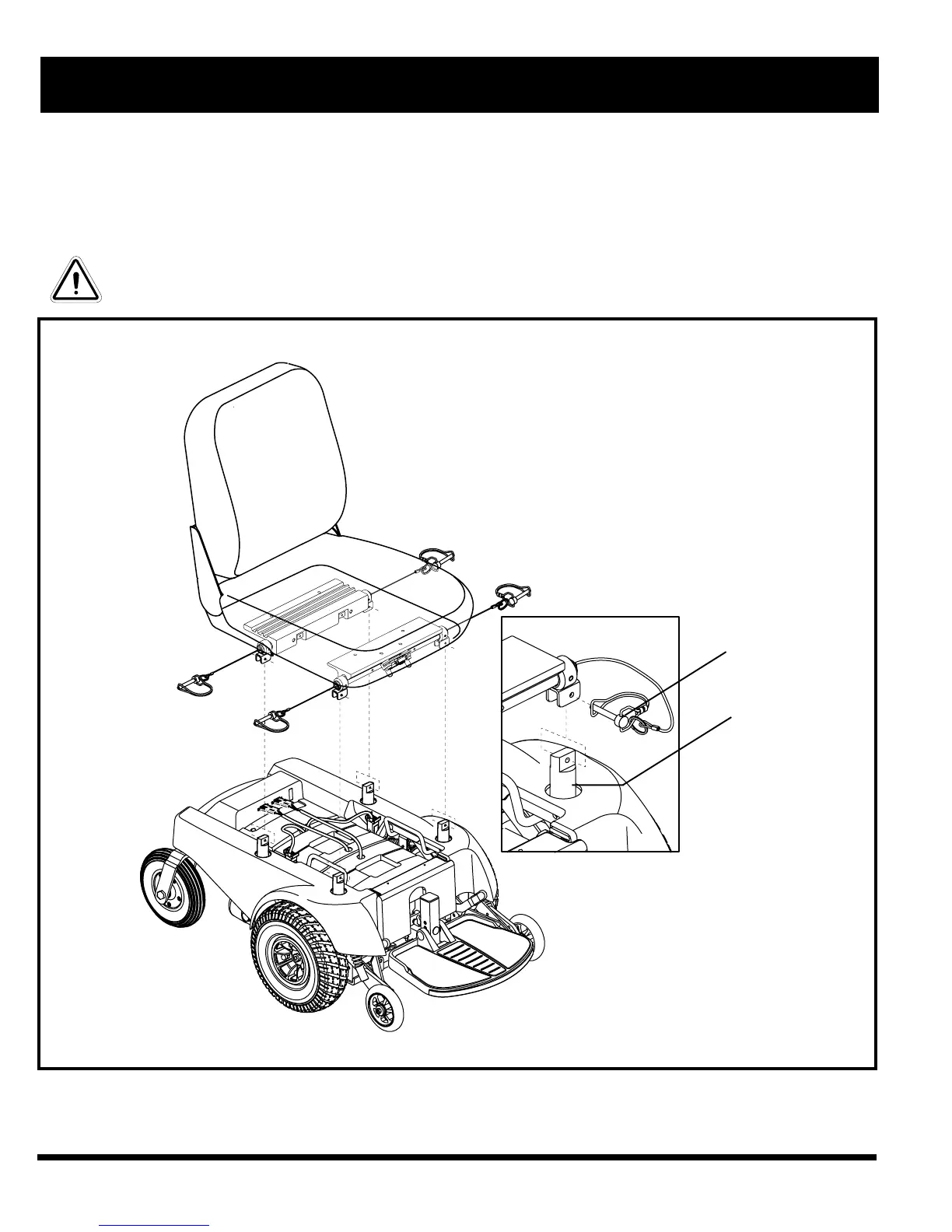

Figure 14. Seat Installation/Removal
V. SERVICE
QUICK-RELEASE
PIN
SEAT TOWER
To dismantle your power chair:
1. Disconnect the controller cable from its connector on the power base. See figure 6. You may need to pull firmly and
gently wiggle the connector.
2. Remove the quick-release pin from each seat tower. See figure 14.
3. Pull up on the seat. You may find it necessary to wiggle the frame gently from side to side to free it from the seat towers.
WARNING! Do not pick up the seat frame by the armrests. They are free to pivot, and you may lose control
of the seat if they do so.
