Pride Mobility Jazzy Select Series - Swing-away Footrests; Elevating Leg Rests

22 www.pridemobility.com Jazzy Select Series
V. COMFORT ADJUSTMENTS
3
2
1

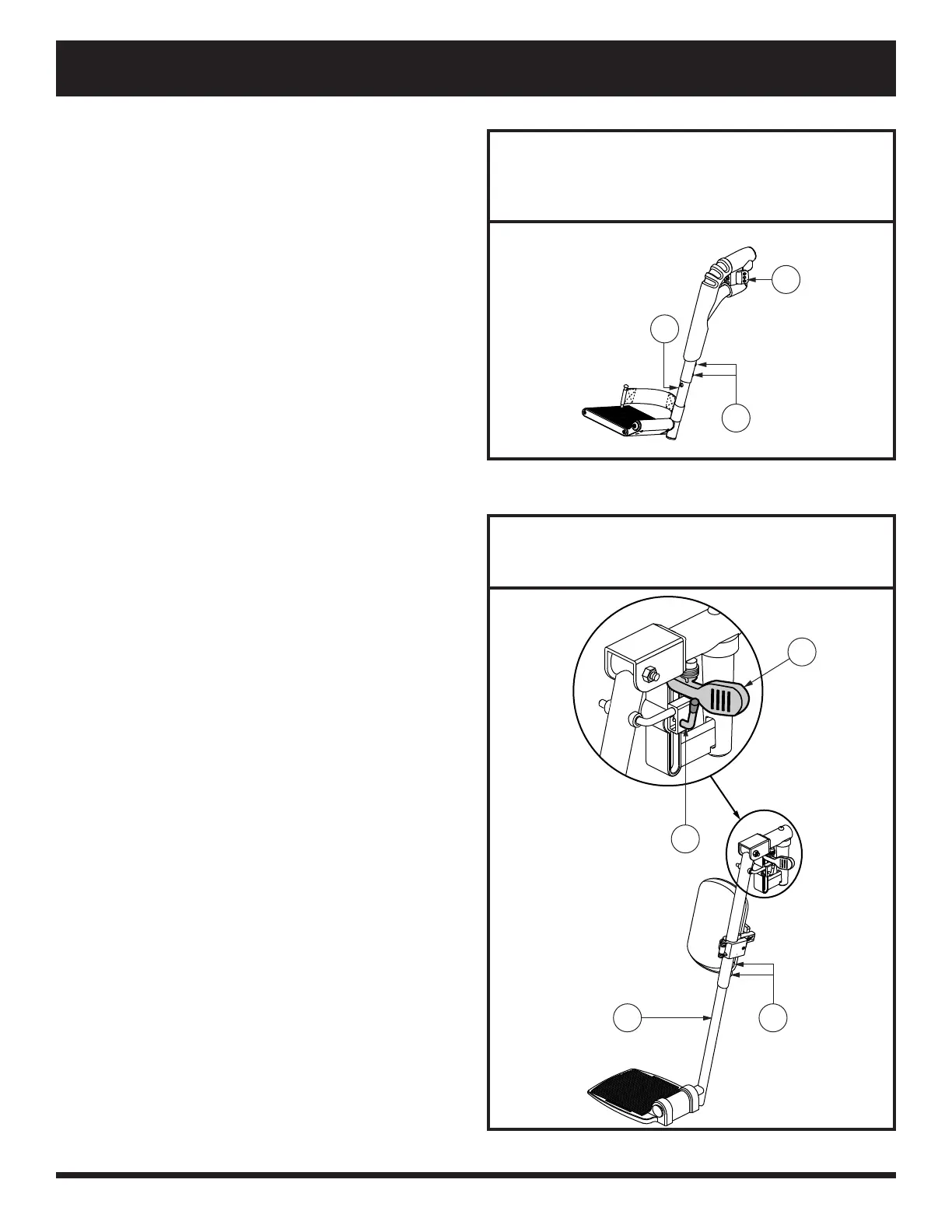

Figure 18. Swing-Away Footrests
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or o of
your power chair. See gure 18.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the adjustment screws from the footrest
extension.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests
Elevating Leg Rests (ELRs) oer an innite range of
adjustment for the leg angle and a footrest adjustment
range of 12-19 in. (30.48-48.26 cm). See gure 19.
To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.
To adjust the ELR angle:
1. Push down release lever B.
2. Move the leg rest to the desired angle.
To adjust the ELR length:
1. Remove the two adjustment screws from the side
of each leg rest extension.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.
1
3
4
2
Figure 19. Elevating Leg Rests
1. SFR Release Lever
2. Adjustment Screws
3. Footrest Extension
Identification Key
1. Release Lever A
2. Release Lever B
3. Adjustment Screws
4. Leg Rest Extension
Identification Key
