34 www.pridemobility.com Jazzy Select Series
VII. CARE AND MAINTENANCE
6
1
3
5
2
4

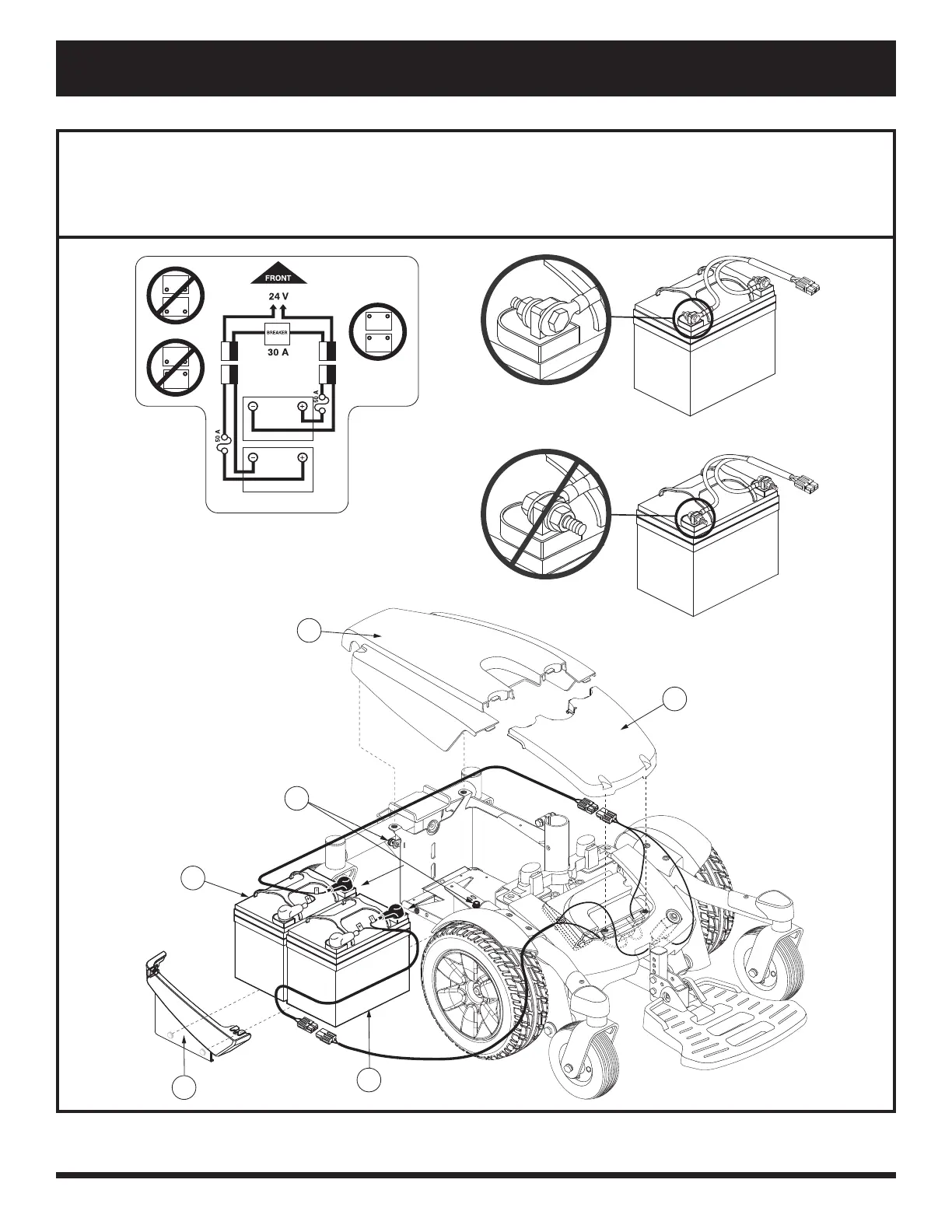

Figure 24. Battery Installation (Seat Removed for Clarity—Select 6 Shown)
CORRECT
CONNECTION
INCORRECT
CONNECTION
1. Rear Shroud
2. Top Shroud
3. Front Battery
4. Side Cover
5. Rear Battery
6. Yellow Thumbscrews
Identification Key
BATTERY SET CONFIGURATION:
+ = POSITIVE (RED) TERMINAL POST
- = NEGATIVE (BLACK) TERMINAL POST
CONNECT RED WIRE TO RED POSITIVE (+) TERMINAL POST.
CONNECT BLACK WIRE TO BLACK NEGATIVE (-) TERMINAL POST.
