Pride Mobility PURSUIT - Electrical System Fuses

21
Pursuit www.pridemobility.com
III. YOUR SCOOTER
Hi-Low Switch
This switch toggles the scooter’s speed between HI
and LOW. Toggle the switch forward (HI) and your
scooter’s maximum speed is 12.87 km/h (8 mph).
Toggle the switch rearward (LOW) and your-
scooter’s maximum speed is 6.43 km/h (4 mph).
Off-board Charger Port
The off-board charger power cord plugs into this port
during battery charging. The off-board charger port
will be located on the tiller. See figure 5.
Electrical System Fuses
Your scooter is equipped with a series of electrical
system fuses, which help protect the off-board charg-
ing system, key switch, and lighting system from
receiving an overload of electrical current. These
fuses are the same type used in automobiles and are
located in a compartment on the tiller. See figure 6.
NOTE: Keep all electrical areas clean and free of
moisture and foreign material.

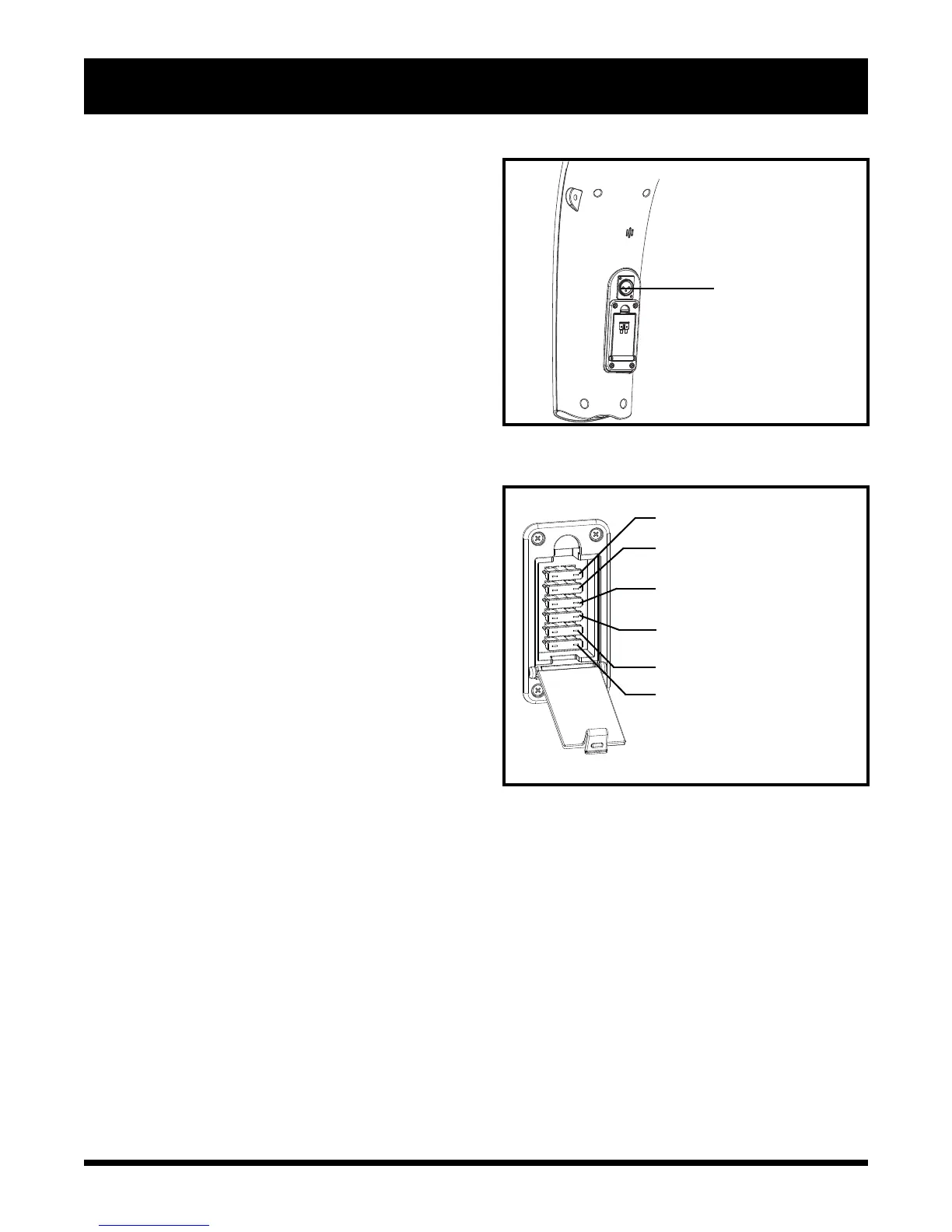

Figure 5. Off-board Charger Port (Tiller Mounted)
Figure 6. Tiller Console Fuses
OFF-BOARD
CHARGER PORT
KEY SWITCH (5A)
OFF-BOARD CHARGER (10A)
REAR TAIL LIGHTS (1A)
LOWER HEADLIGHT (1A)
RIGHT TURN SIGNAL (1A)
LEFT TURN SIGNAL (1A)
