III. YOUR POWER CHAIR
THE QUANTUM 600 SERIES POWER CHAIR
Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typi-
cally, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two
motor/brake assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figure 5,
6, and 7.
REAR
SHROUD
DRIVE WHEEL

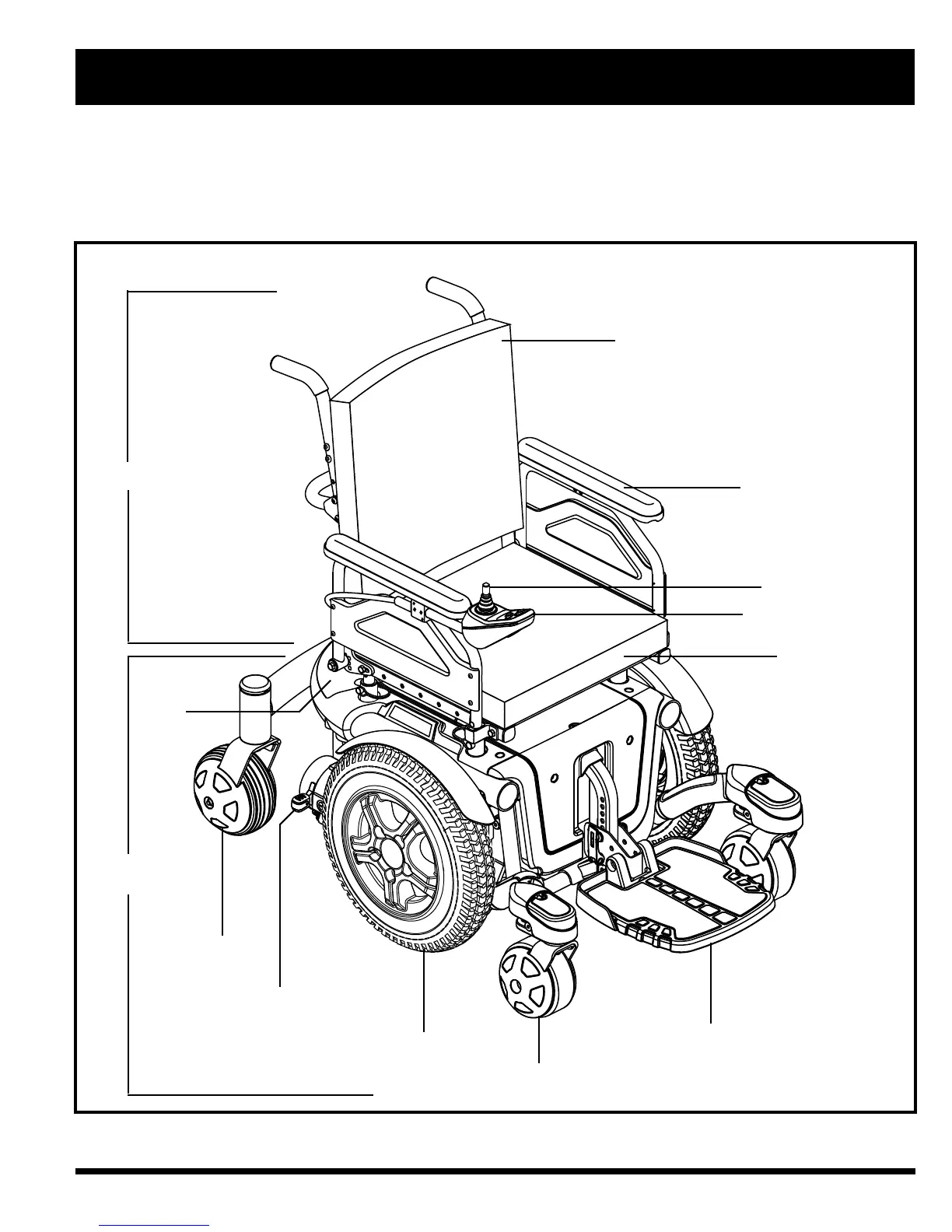

Figure 5. The Quantum 600 Series Power Chair
FRONT RIGGING
(FOOT PLATFORM SHOWN)
CASTER WHEEL
MANUAL FREEWHEEL LEVER
CASTER WHEEL
SEAT ASSEMBLY
POWER BASE
ASSEMBLY
SEATBACK (SOLID SEATBACK SHOWN)
JOYSTICK
SEAT BASE
CONTROLLER
ARMREST
