18 www.pridemobility.com Quantum 600 Series
III. YOUR POWER CHAIR
Electrical Components
The electrical components are located inside the power base. The main circuit breaker is located on the front of
the battery tray. The controller connector(s) are located inside the power base. See figure 7.
Motor Connectors: This is where the controller connects to the motors.
Battery Connector: This is where the controller connects to the batteries.
Controller Connector: This is where the controller connects to the power base. Each controller uses a different
type of harness. Regardless of which type of controller is used, the harness must be secured to the seat assembly
and not allowed to drag on the floor.

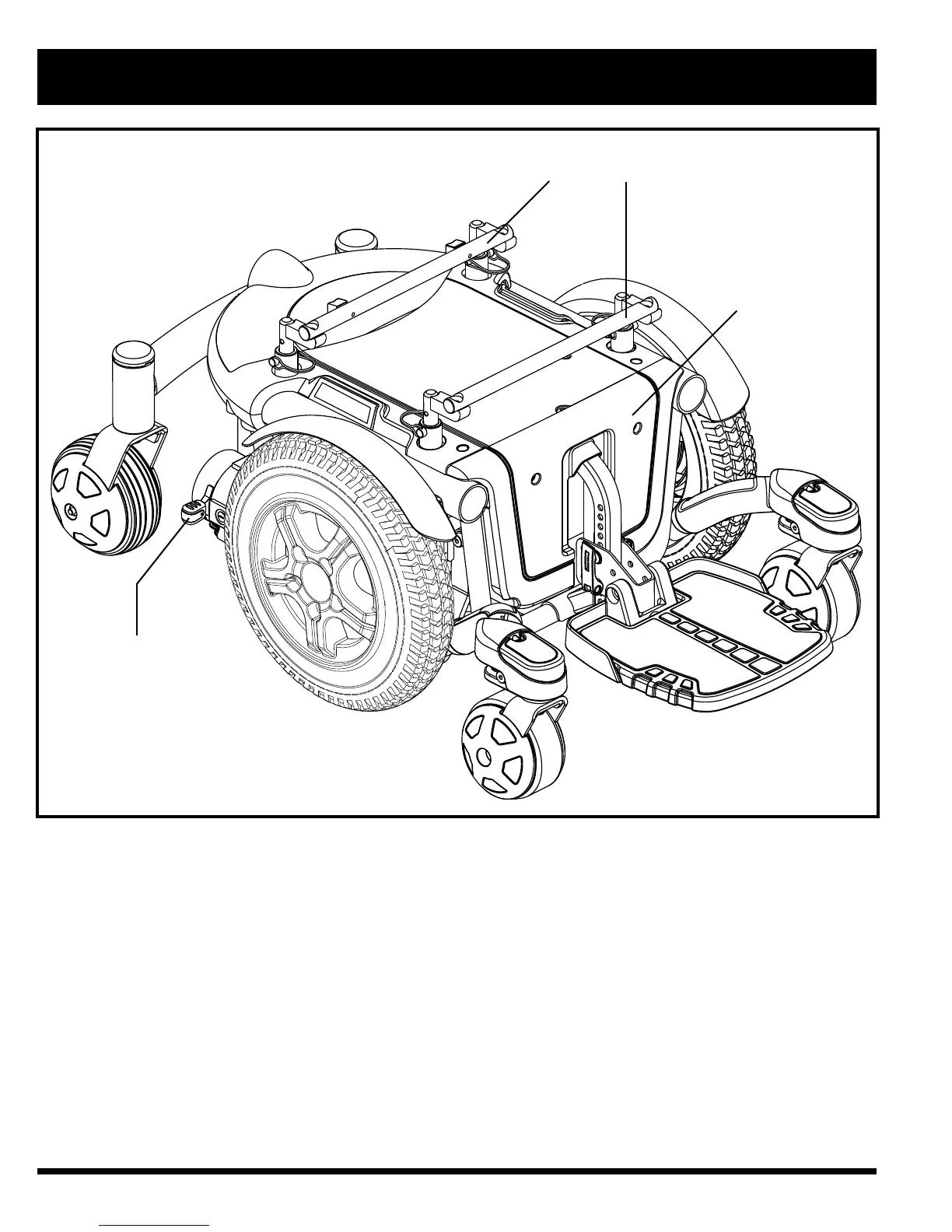

Figure 6. The Quantum 600 Series Power Base
MOTOR/BRAKE
ASSEMBLY
TRAPEZE BARS
FRONT COVER
