INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly
to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and
assembled by an end user or by a qualified carer before using the product or making comfort adjustments.
IV. ASSEMBLY
ARMREST ANGLE ADJUSTMENT

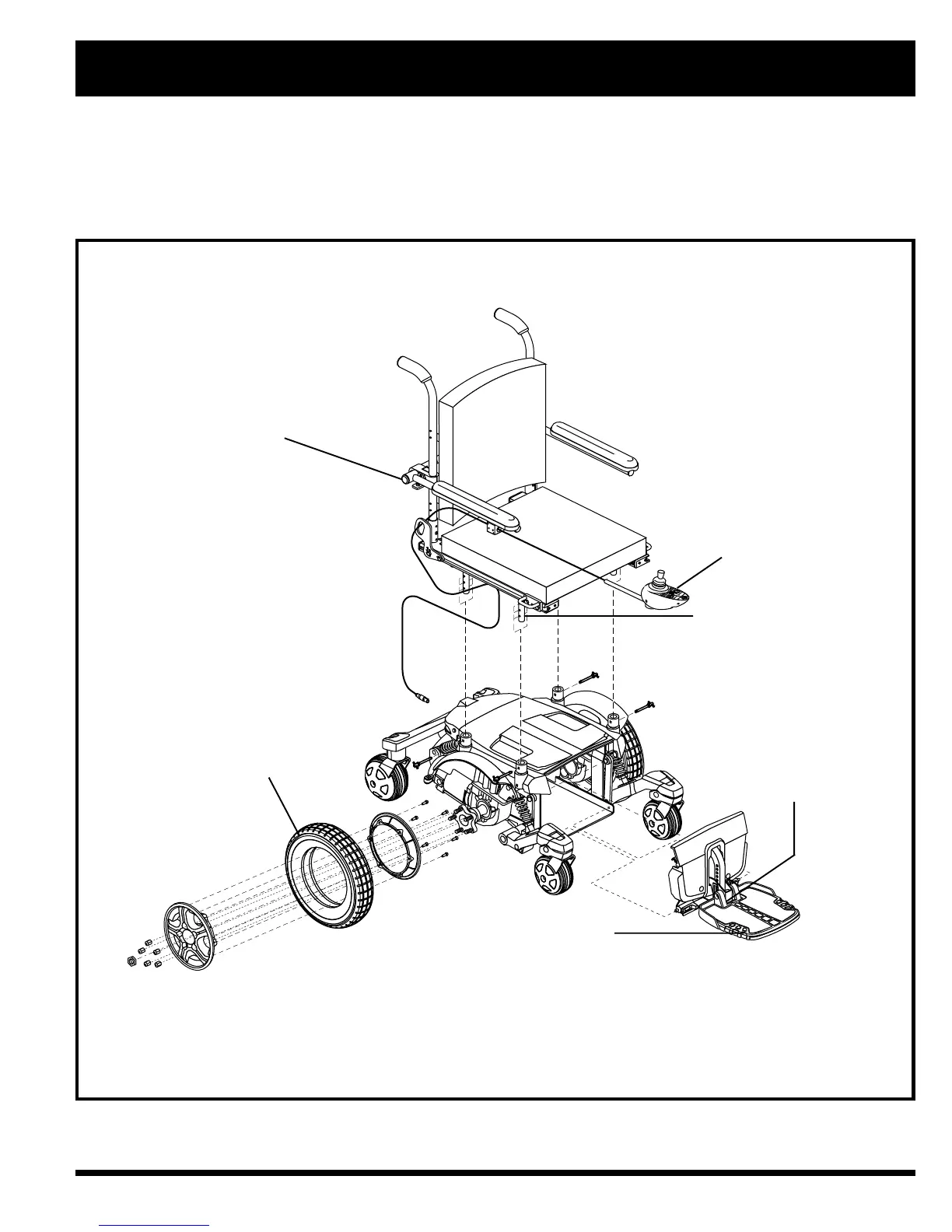

Figure 10. Quantum 6000 Assembly View (Synergy Seat Shown)
TYRE/TUBE
REPLACEMENT
FOOT PLATFORM HEIGHT/DEPTH
ADJUSTMENT
SEAT HEIGHT/ANGLE ADJUSTMENT
CONTROLLER POSITION
FOOT PLATFORM
ANGLE ADJUSTMENT
