Quantum 6000 www.quantumrehab.com 23
IV. ASSEMBLY
Power Seat Option Installation
Your power chair may be equipped with the power seat op-
tion. While the seat itself may be any one of the styles offered
for this model, the way the seat base attaches to the power
base is different.
To install the power seat:
l. Place the seat plate interface bracket over the power
seat actuator.
2. Secure the bracket to the actuator with the mounting
hardware. See figure 14.
3. Tilt the seat back and slide the rear extrusion onto the
rear bar of the seat plate interface.
4. Lower the front extrusion onto the front bar of the seat
place interface.
5. Flip the seat latch safety down.

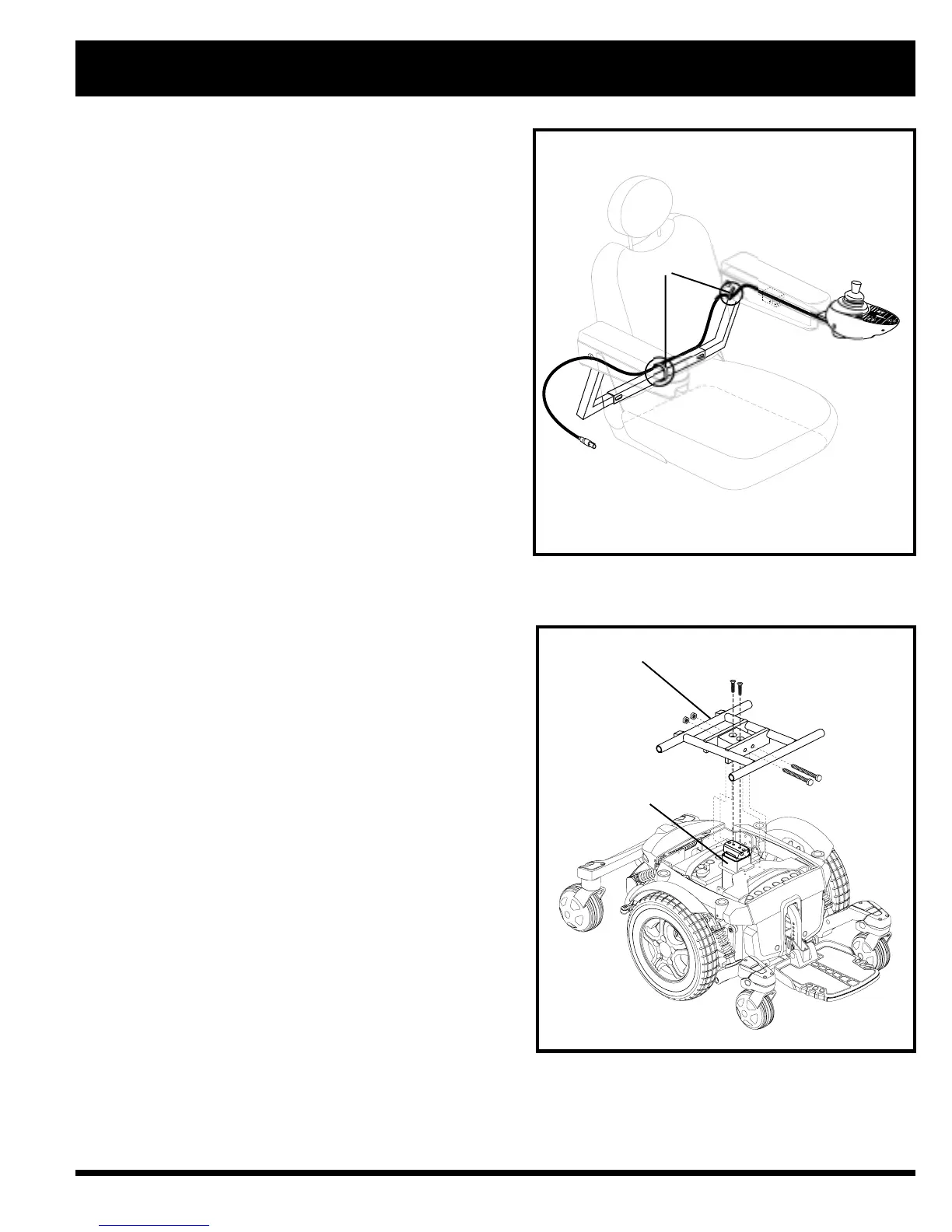

Figure 14. Power Seat Actuator
ACTUATOR
SEAT PLATE INTERFACE BRACKET
WIRE TIES
Figure 13. Remote Plus Controller Routed on a
Contour Seat
