V. YOUR SCOOTER
Horn Button
These buttons activates a warning horn. Your scooter must be turned on for the horn to be operational. Do not
hesitate to use the warning horn when doing so may prevent accident or injury.
Status LED
The status LED will alert you to electrical problems that may occur with the scooter. The LED remains constantly
lit while your scooter is on. If the scooter develops an electrical problem, the status LED will flash a code. See X.
“Basic Troubleshooting” for flash codes. If the status LED flashes a code other than a code listed, contact your
authorized Pride Provider.
Battery Condition Meter
The battery condition meter indicates the approximate strength of your batteries while the scooter is on.
Speed Adjustment Dial
This dial allows you to select a maximum speed.
! The picture of the tortoise represents the slowest speed setting.
! The picture of the hare represents the fastest speed setting.
REAR SECTION
The manual freewheel lever, anti-tip wheels, battery packs, and the motor/transaxle assembly (not shown) are
located on the rear section of your scooter. See figure 6.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your scooter. Do not, under any circumstances,
remove the anti-tip wheels from your scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is
not authorized by Pride.

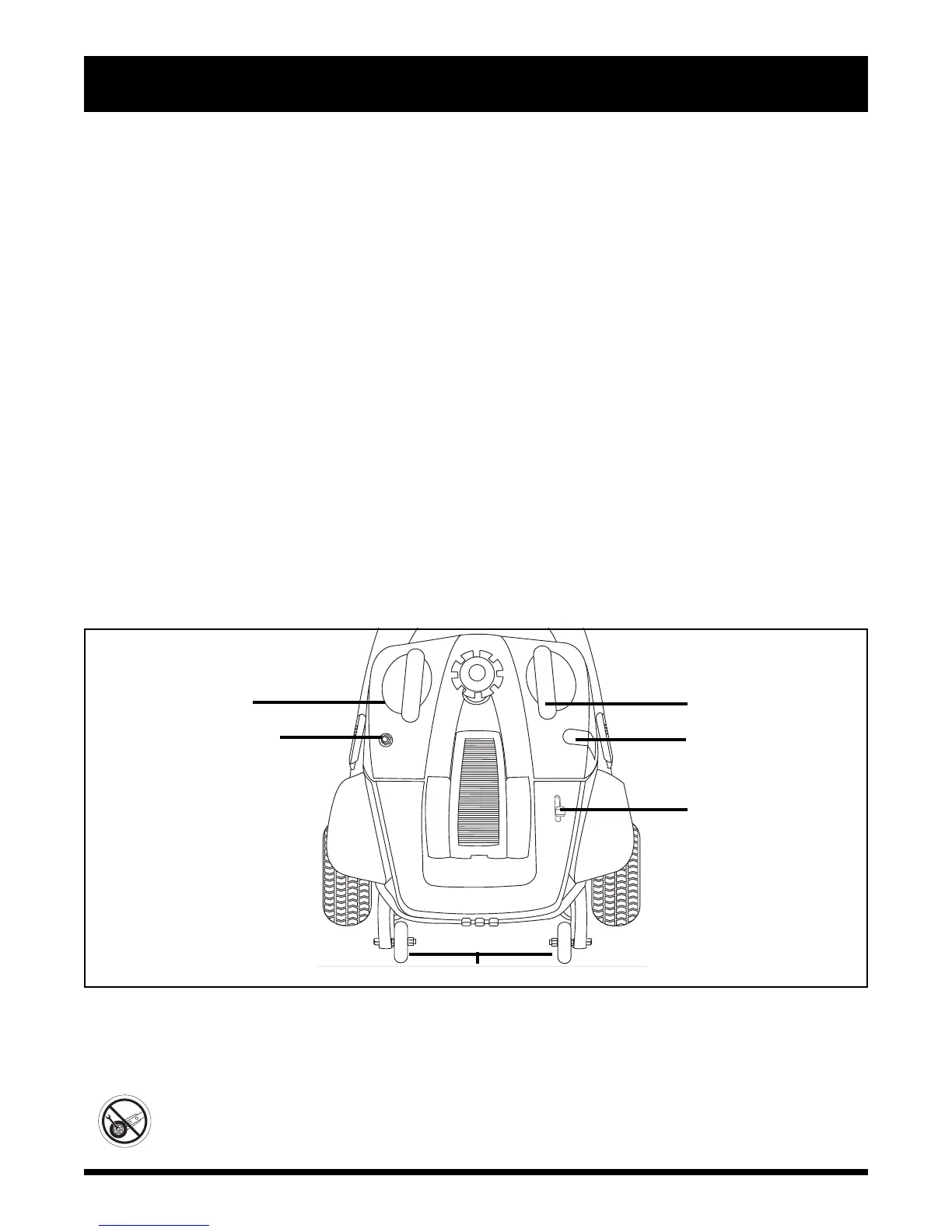

Figure 6. Rear Section
RIGHT BATTERY PACK
MANUAL FREEWHEEL
LEVER
CHARGER POWER CORD
RECEPTACLE
LEFT BATTERY PACK
MAIN CIRCUIT BREAKER
(RESET BUTTON)
ANTI-TIP WHEELS
To Next Page
