III. YOUR POWER CHAIR
THE TSS300 POWER CHAIR
The TSS300 Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure
5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes
two motor/brake assemblies, two drive wheels, two rear caster wheels, two front anti-tip wheels, two batteries,
and wiring harnesses.

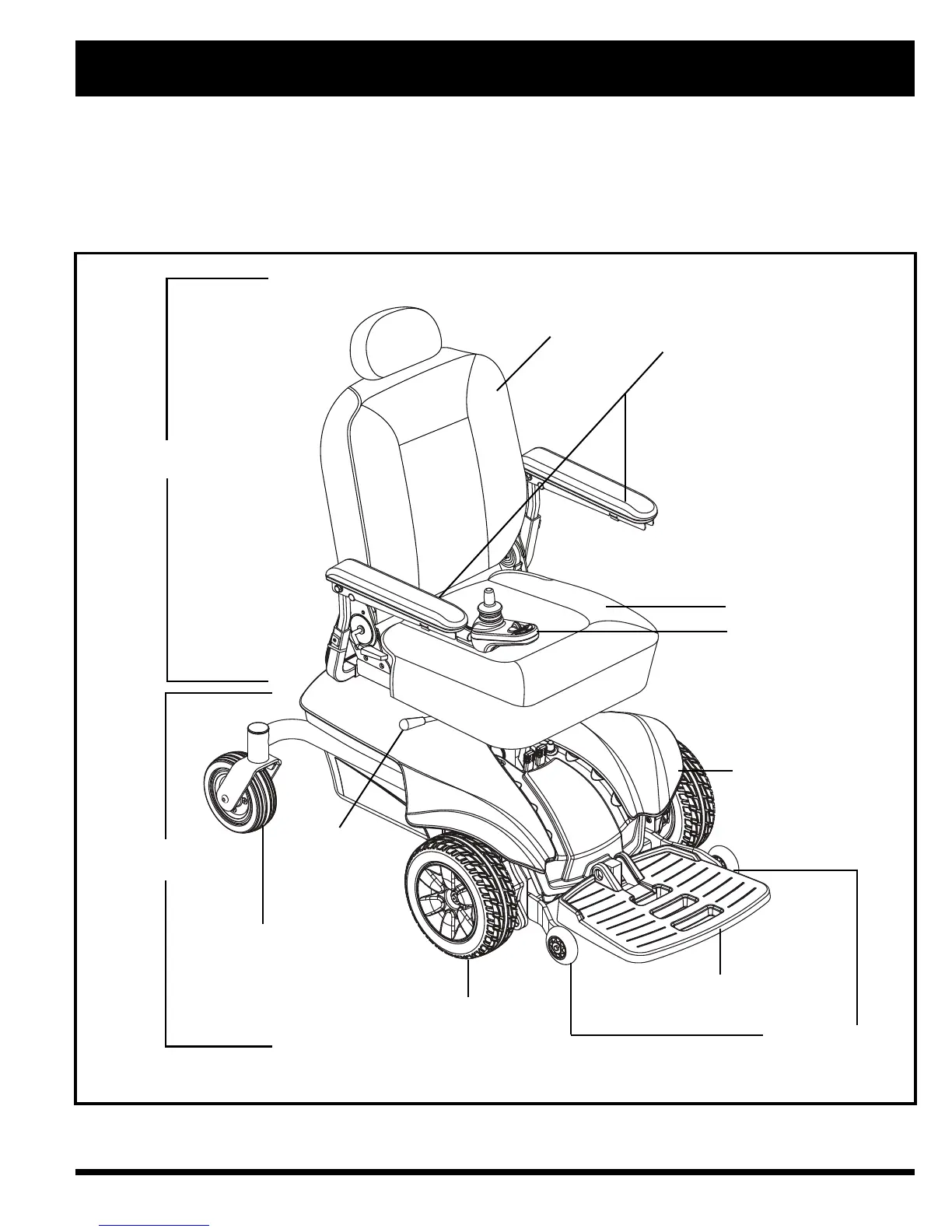

Figure 5. The TSS300 Power Chair
SEAT
ASSEMBLY
FRONT RIGGING
(FOOT PLATFORM SHOWN)
DRIVE WHEEL
ANTI-TIP WHEELS
SEATBACK
ARMRESTS
BODY SHROUD
CONTROLLER
SEAT BASE
POWER BASE
ASSEMBLY
CASTER WHEEL
SEAT
RELEASE
LEVER
