IV. ASSEMBLY/DISASSEMBLY
Your lift chair may require some assembly before initial use. It may also require disassembly to
make servicing the chair more convenient. If your lift chair is a Knock-Down (KD) model, follow
the instructions in “Lift Chair Set Up.” If your lift chair is not a KD model, proceed to “Lift Chair
Placement.”
LIFT CHAIR SET UP

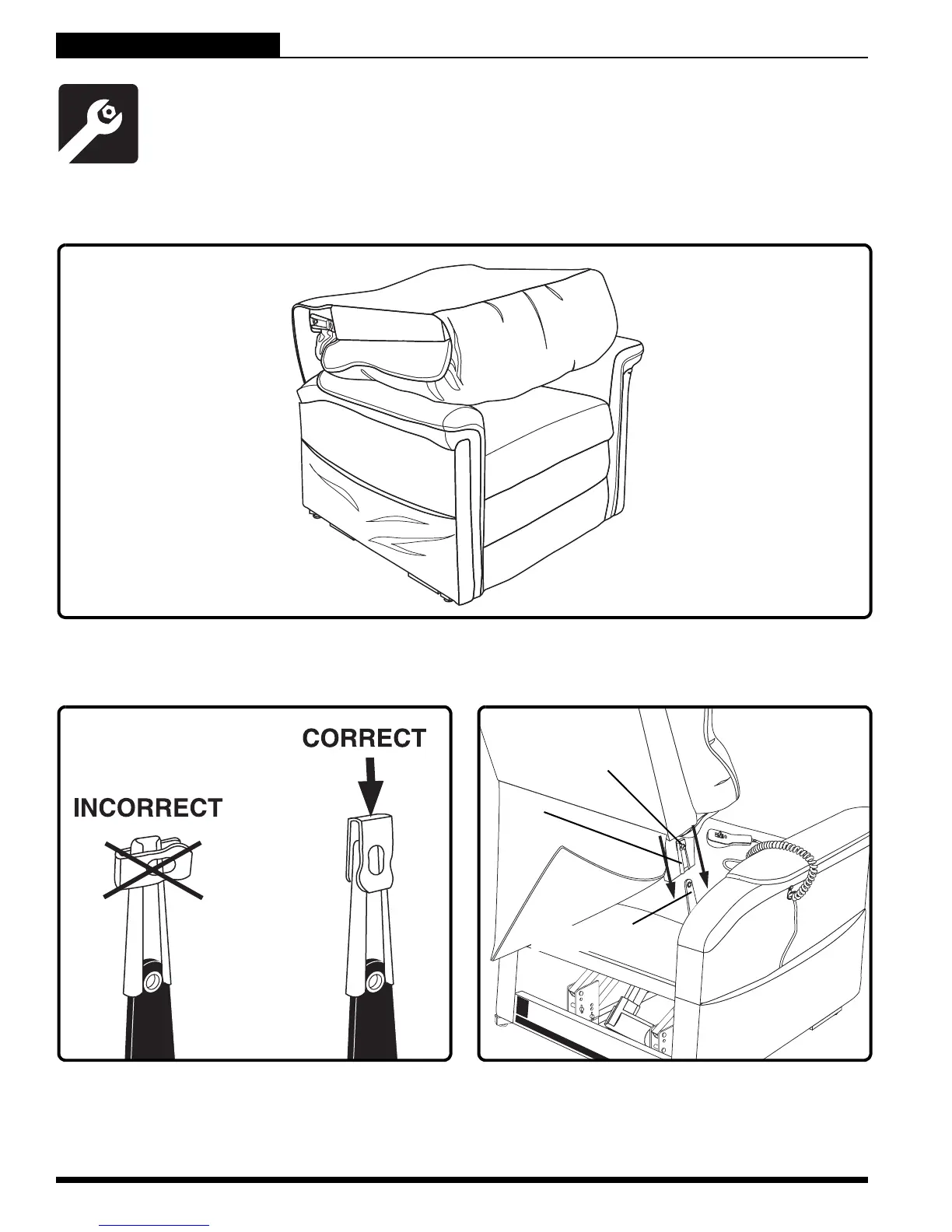

KD models will arrive in the knock-down position (Fig. 4.1).
Figure 4.1 Knock-down (KD) Position
Follow these steps to assemble the lift chair:
4.1.1 Remove the packaging from the back portion
of the chair and check that the locking clip is in
the vertical position. Reposition if necessary.
4.1.2 Slide the left and right KD sleeves of the
chair-back onto the KD connections on the
arms and seat of the chair.
LOCKING CLIP
