Pride C1 - Page 17

Lift Chair Series www.pridemobility.com 17
LIFT CHAIR SERIES
IV. ASSEMBLY/DISASSEMBLY

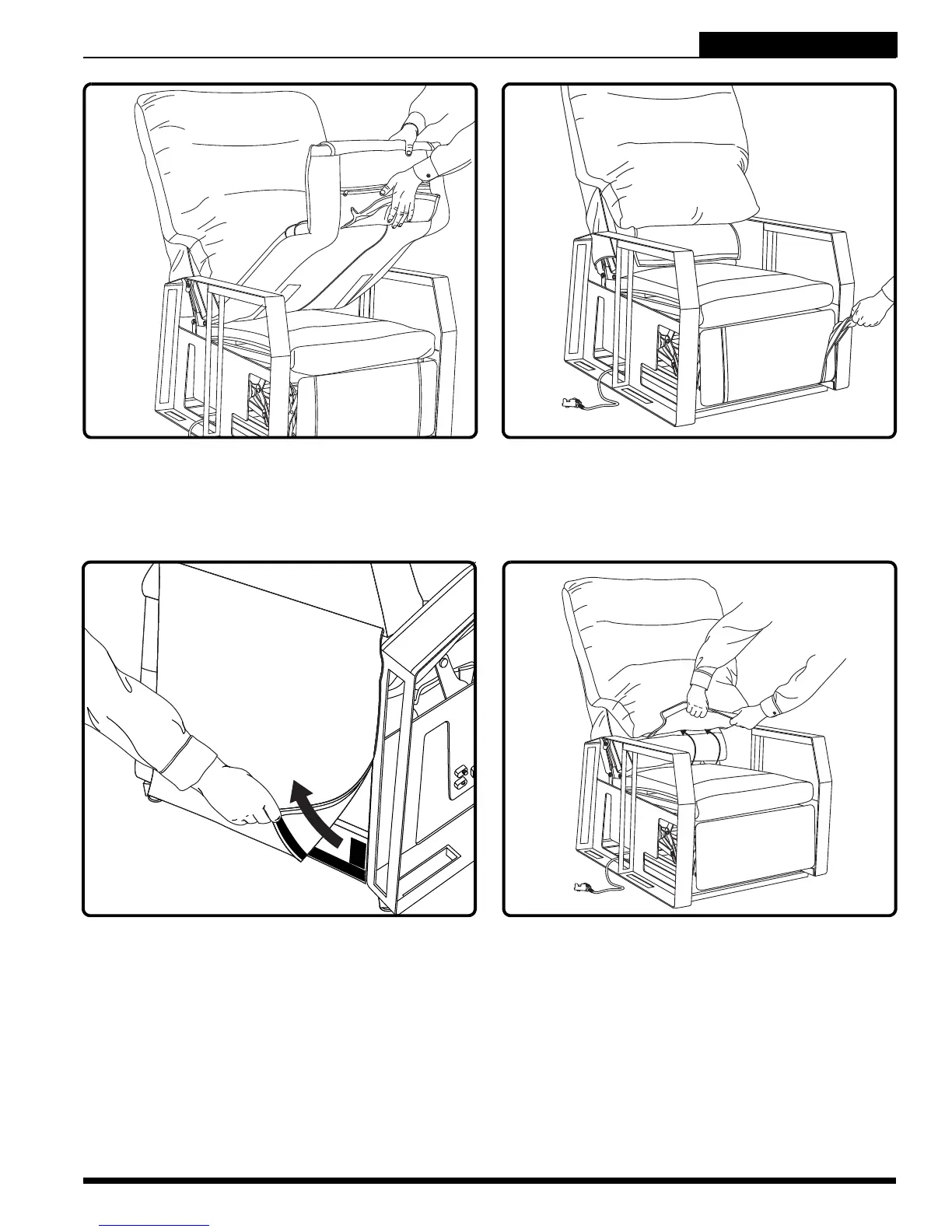

4.4.5 Loosen the front portion of the chaise pad
from the footrest and remove the chaise pad
from the lift chair.
4.4.6 Remove the footrest side covers.
NOTE: This feature does not apply to the C1 Lift
Chair.
4.4.7 Disengage the bottom flap of the chair-back
cover from the bottom seat rail.
4.4.8 Loosen the bottom chair-back cover flaps
from the bottom of the chair-back.
