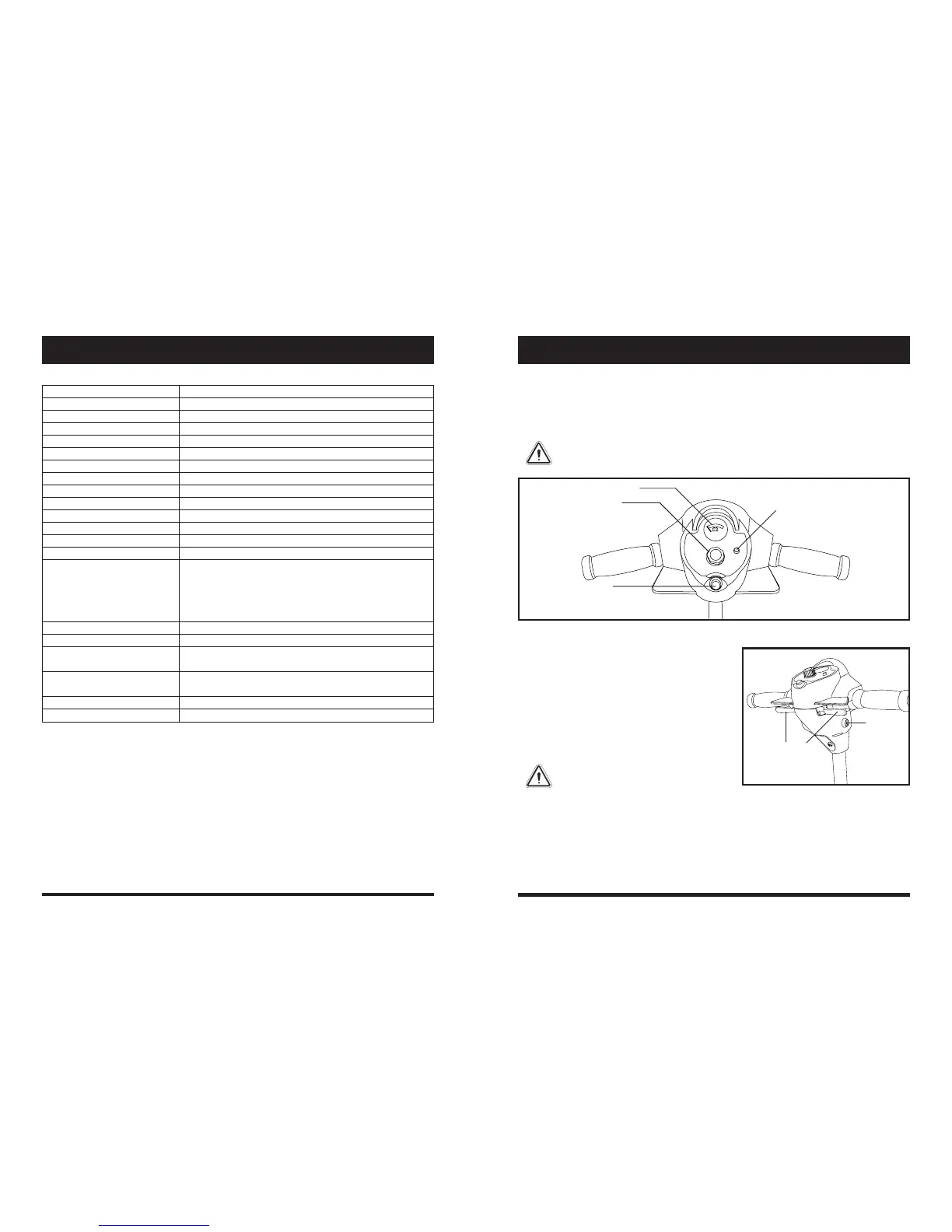

TILLER CONSOLE COMPONENTS
The tiller console houses all controls needed to drive your scooter, including the key switch, throttle control
lever, horn button, speed adjustment dial, the battery condition meter, and the off-board battery charger port.
See figures 5, 5A and 5B.
WARNING! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your scooter until the tiller
console has dried thoroughly.
IV. YOUR SCOOTER
Figure 5. Upper Tiller Console Components
SPEED ADJUSTMENT DIAL
HORN BUTTON
BATTERY CONDITION METER
STATUS LED
THROTTLE
CONTROL LEVER
KEY SWITCH
Figure 5A. Lower Tiller Console Components
Key Switch
! Insert the key into the key switch and turn it clockwise to
power up (turn on) your scooter.
! Turn the key anticlockwise to power down (turn off) your
scooter.
Although the key can be left in the key switch when the scooter
is powered down, we recommend removing it to prevent
unauthorised use of your scooter.
WARNING! If the key is moved to the “off”
position while your scooter is in motion,
the electronic brakes will engage and your
scooter will come to an abrupt stop!
III. SPECIFICATIONS
Model Number SC1710AUS
Class of Use B
Maximum Safe Slope See figure 1.
Maximum Climbing Ability See figure 1.
Maximum Obstacle Climbing Ability 5 cm
Colour Red
Overall Length
2
120.65 cm
Overall Width
2
60.33 cm
Heaviest Piece When Disassembled Front Section: 21.77 kg
Turning Radius
2
147 cm
Speed (Maximum) Variable up to 8.04 km/h
Range Per Charge
1
Up to 25.75 km
Ground Clearance
2
5 cm
Weight Capacity 136 kg
Standard Seating Type: High-back with headrest; manual recline
Material: Black vinyl
Dimensions: 44.45 cm width
40.64 cm depth
43 cm height (not including headrest)
Drive System Rear-wheel drive, sealed mini transaxle, 24 volt DC motor
Dual Braking System Electronic, regenerative and electromechanical
Tyres Front: 25.40 cm, pneumatic
Rear: 25.40 cm, pneumatic
Battery Requirements
3
Type: Two (2) 12-volt, deep-cycle
Size: 36 Ah
Battery Weight 10.43 kg each
Battery Charger 5-amp, off-board
1
Varies with user weight, terrain type, battery charge, battery condition, tyre type, and tyre condition.
2
Due to manufacturing tolerances and continual product improvement, this specification can be subject to variance of
(+ or – ) 3 %.
3
AGM or Gel-Cell type required. See V. “Batteries and Charging.”
NOTE: All specifications subject to change without notice.
