Pride Fusion - Key Electrical Components

Fusion www.pridemobility.com 19
MAIN CIRCUIT
BREAKER
III. YOUR POWER CHAIR

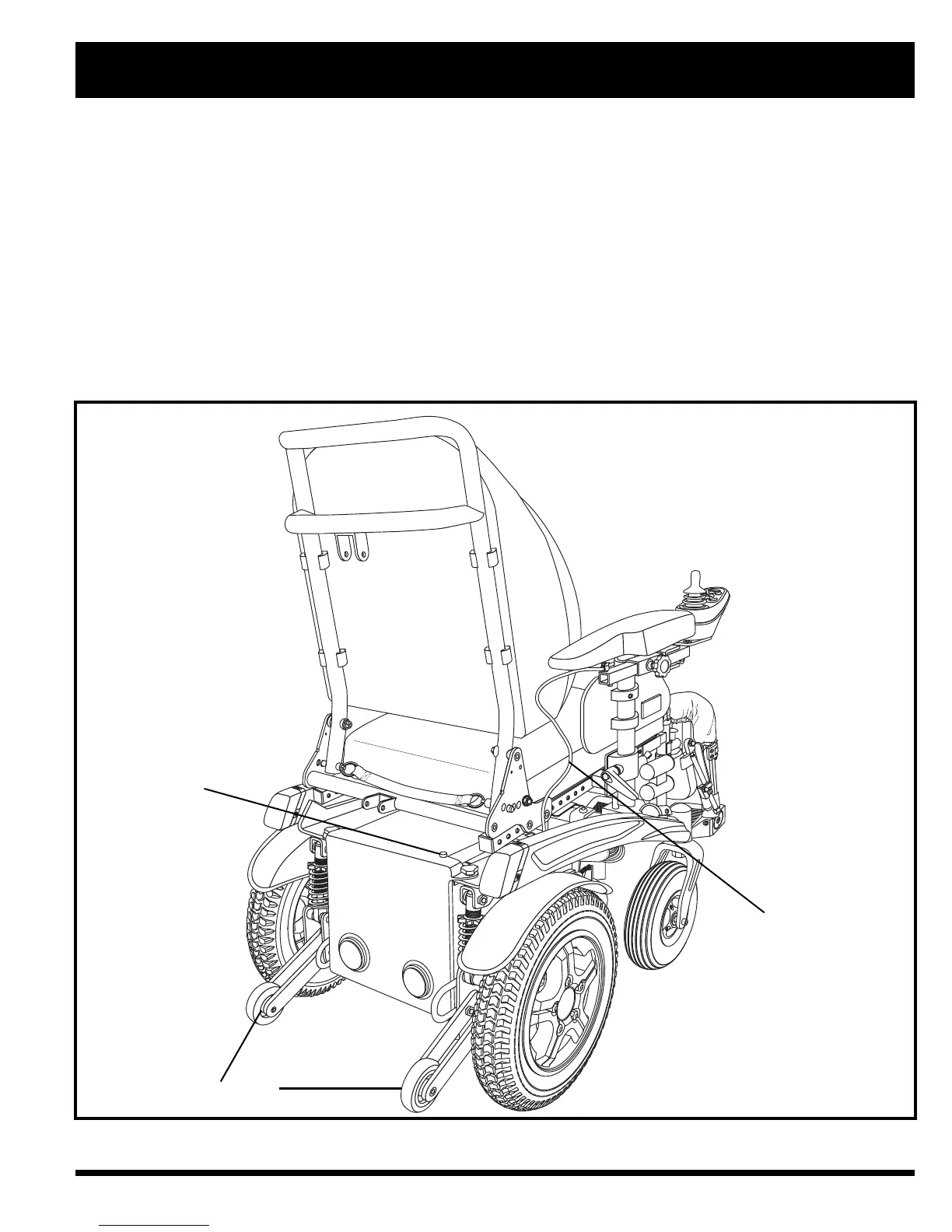

Figure 6. The Fusion Power Base
CONTROLLER
HARNESS
ANTI-TIP WHEELS
Electrical Components
The electrical components are located at the rear of the power base. See figure 6.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your Quantum Rehab Provider. The main circuit breaker is
located on the rear of your power chair. See figure 6.
Controller Connector: This is where the controller connects to the power base. The controller connector is
located at the front of the power base.
