31
Go-Go Ultra www.pridemobility.com

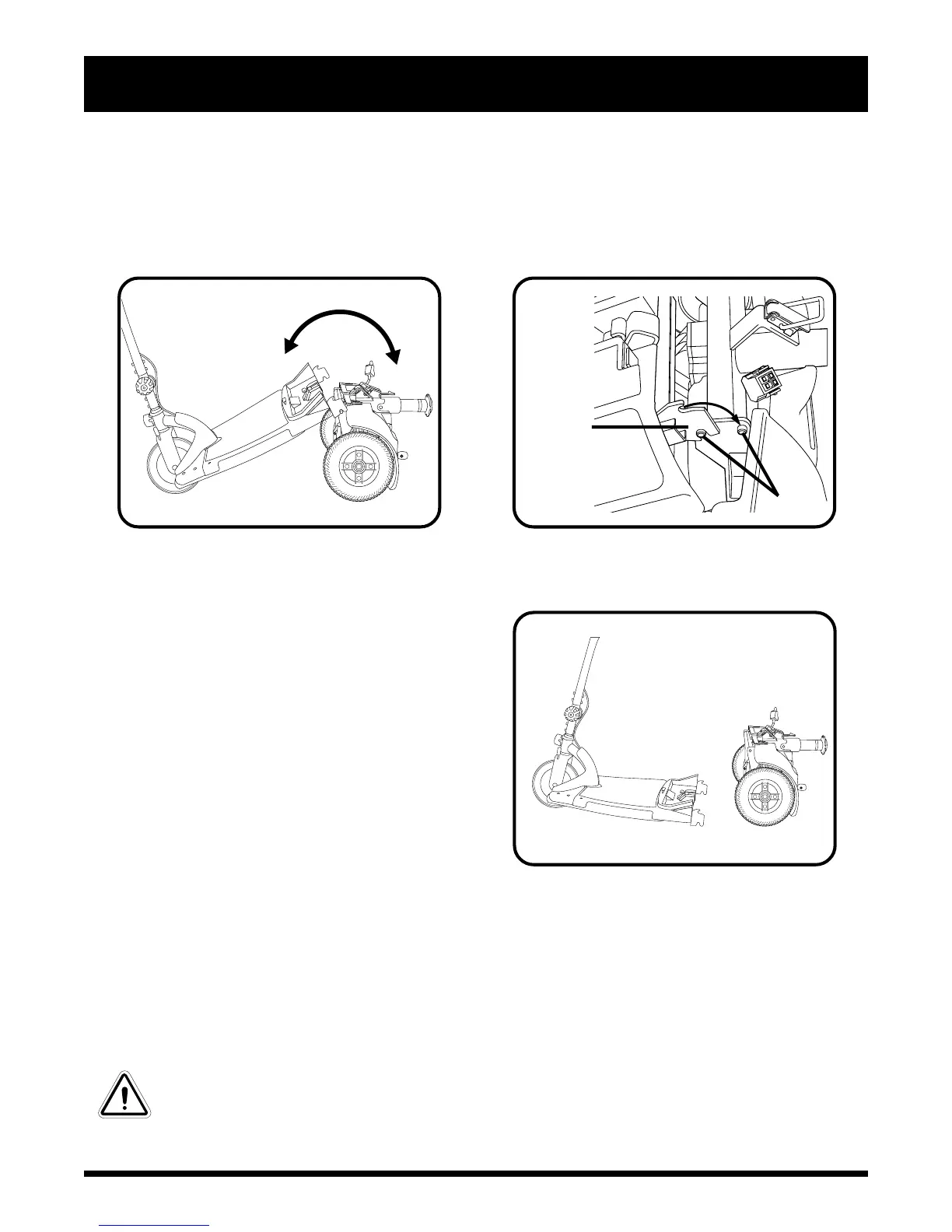

Figure 18. Frame Sections
VIII. DISASSEMBLY AND ASSEMBLY
Frame Separation
1. Push back on the seat post to pivot the scooter’s rear section rearward until the rear section is standing
vertically on its bumper. See figure 16.
2. Lift the front section up until the lower pegs are no longer in the curved locking brackets. See figure 17.
3. Carefully lift the front section away from the rear section. See figure 18.
ASSEMBLY
1. Position the front and rear sections of your scooter as shown
in figure 18.
2. Align the lower curved locking brackets of the front
section with the corresponding pegs on the front of the
rear section. See figure 17.
3. Holding the seat post, slowly pivot the rear section
forward until the curved locking brackets are fully con-
nected onto the top rear pegs. See figure 16.
4. Loosen the tiller adjustment knob, raise the tiller, then
retighten the tiller adjustment knob.
5. Secure the toggle latch. See figure 15.
! Lower the toggle latch buckle.
! Push the toggle latch so it locks into place.
6. Connect the front-to-rear harness.
7. Reinstall the battery pack by lowering it straight down
until it is securely in place.
8. Replace the seat and rotate it until it locks into its cor-
rect position.
9. Unlock the front wheel by turning the tiller lock knob
90° anticlockwise. See figure 12.
Figure 16. Frame Positioning
PEGS
CURVED
LOCKING
BRACKET
Figure 17. Frame Lockup
WARNING! After assembling the scooter, make absolutely certain the tiller lock knob is in
the unlocked position before attempting to ride your scooter.
