J6 Series 17
III. YOUR POWER CHAIR
THE J6
The J6 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat
assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figure 5, 6, and 7.
SEATBACK
REAR
SHROUD
DRIVE WHEEL
CASTER WHEEL

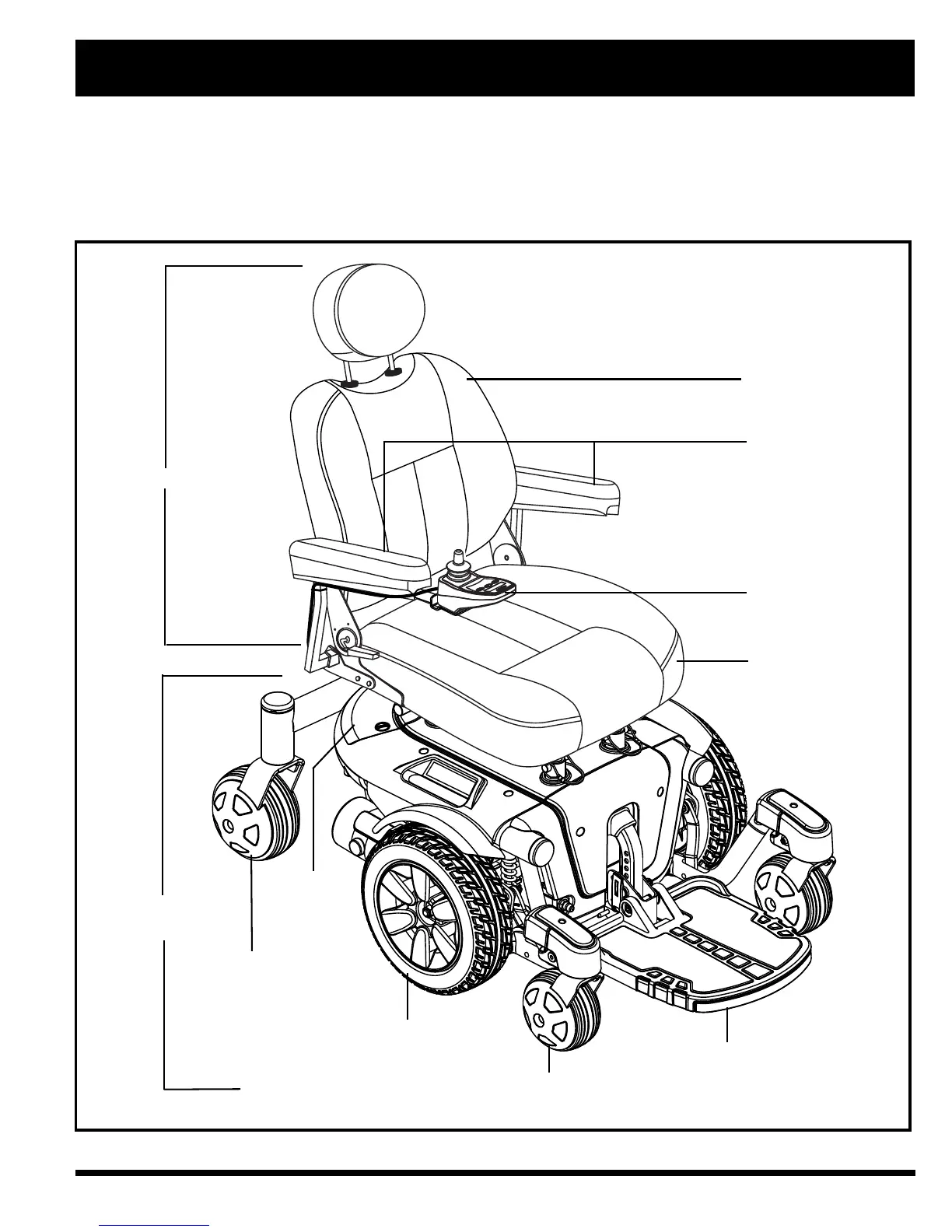

Figure 5. The J6 Power Chair
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
FRONT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
ARMRESTS
CONTROLLER
CASTER WHEEL
