III. YOUR POWER CHAIR
THE JAZZY 1122
Your power chair has two main assemblies: the seat and the power base. See figure 5. Typically, the seating
assembly includes the armrests, seatback, and controller. The power base assembly includes two drive wheels,
two anti-tip wheels, two rear caster wheels, a power seat connector (optional), harness connectors, and a body
shroud. See figures 5 through 9.

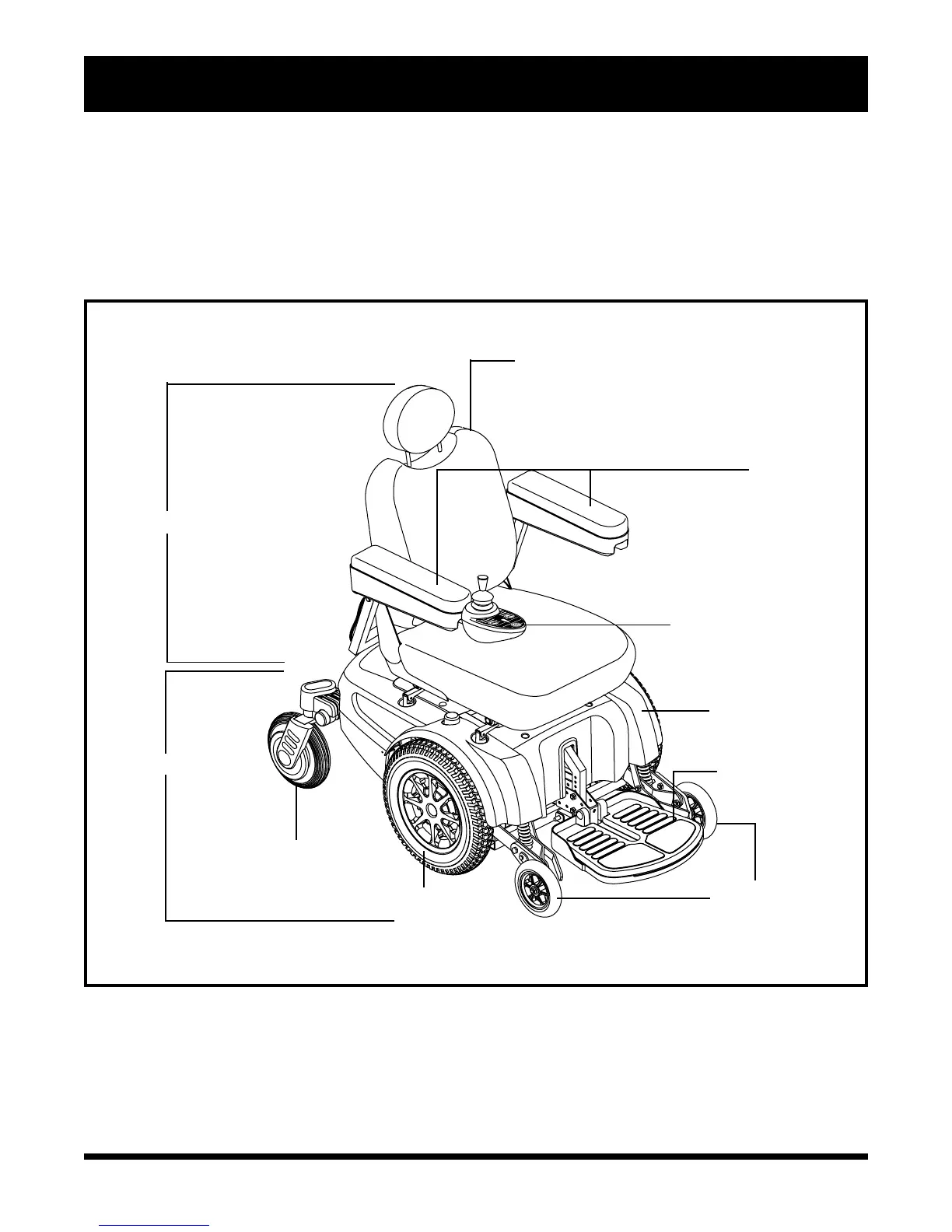

Figure 5. The Jazzy 1122
SEAT ASSEMBLY
SEATBACK
CONTROLLER
(REMOTE PLUS SHOWN)
ARMRESTS
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
REAR CASTER WHEEL
FOOTRIGGING
(FOOT PLATFORM
SHOWN)
POWER BASE ASSEMBLY
