4

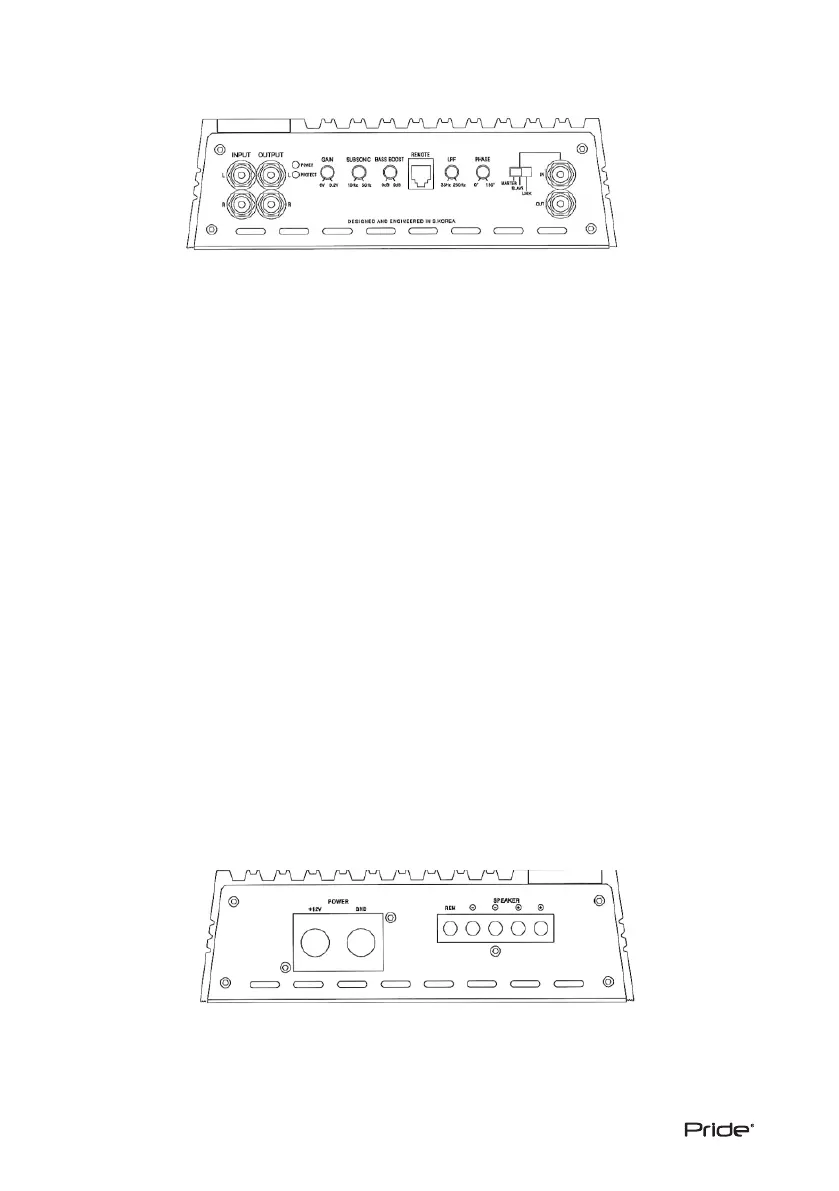

Digital Monoblock Input & Output Connection
RCA INPUTS
e RCA inputs ensure the highest qual-
ity contacts and the lowest noise in your au-
dio system.
RCA OUTPUTS
e RCA outputs connect another ampli-
er for multi car ampliers system.
POWER & PROTECT INDICATORS
When the unit is powered on and oper-
ating correctly the power LED illuminates.
When the unit is malfunction or faulty, the
protect LED is on
GAIN
is adjusts the normal operating level of
the amplier by matching the level from the
headunit.
SUBSONIC FILTER
is allows you to tune the response of
the amplier at very low frequencies.
BASS BOOST
is allows you to tune amplier re-
sponse with up to 9dB of boost centered at
45 Hz
REMOTE CONTROL
Use this to control level of the amplier from
your driver's seat.
LOW PASS CROSSOVER FRE-
QUENCY CONTROL
is allows you to tune the response of
the amplier at higher bass frequencies to
roll o for a seamless integration into your
mid bass.
PHASE
It is adjustable from 0 to 180 degree.
MASTER/SLAVE / LINK
CONNECTION
Using one amplier set this to Master.
Second amp is set to Slave In Strapped
mode, Minimum impedance is 2ohm
Subwoofer speakers impedance should
be checked vey carefully to prevent any
damages to subwoofers and the ampliers.
In Link mode, Entire pre-amp of all Link
amps is bypassed and feed durectly from
Master amp pre-amp andd giving exact and
perfect gain and crossover matching across
all ampliers
SPEAKER TERMINAL BLOCK
Connect speaker cables from speaker ter-
minal block to subwoofers. Subwoofers im-
pedance should be checked carefully.
GROUND ( GND ) & POWER ( +12V)
e power and ground will accommo-
date 0 or 4 AWG wire. Use high quality pure
copper wire only.
