Quantum 610 www.pridemobility.com 15
V. COMFORT ADJUSTMENTS
Seat Position
You can move the seat forward or rearward by changing the
extrusion mounting position.
To change the position:
1. Turn off the power to the controller.
2. Loosen the rear shroud fasteners and remove the rear
shroud. See fi gure 2.
3. Unplug the controller connector(s) from the power base.
4. Remove the seat from the power base.
5. Remove both extrusions from the bottom of the seat.
6. Reposition the extrusions on a different set of mounting
holes. You must move both extrusions the same number
of holes either forward or rearward. See fi gure 13.
7. Fasten the extrusions back onto the bottom of the seat.
8. Reinstall the seat.
9. Reconnect the controller.
10. Reinstall the rear shroud and tighten the fasteners.
Manual Recline Seatback Adjustment
If your power chair is equipped with a reclining seat, you
can adjust the seatback angle with the seatback release lever.
The lever is located on the right side of the seat base.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or rearward to the desired position.
3. Release the lever.
Seatback Angle Adjustment
If your power chair is equipped with an adjustable seatback,
you can adjust it to four (4) different angles: 90°, 102°, 105°
or 107°.
To adjust the seatback angle:
1. Remove the adjusting screws from each seat hinge. See
fi gure 14.
2. Set the seatback at the desired angle.
3. Reinstall the adjusting screws to each seat hinge and
tighten.
Armrest Width Adjustment
You can change each armrest’s width independently of the
other.
NOTE: Changing the armrest width may increase the
overall width of your power chair.

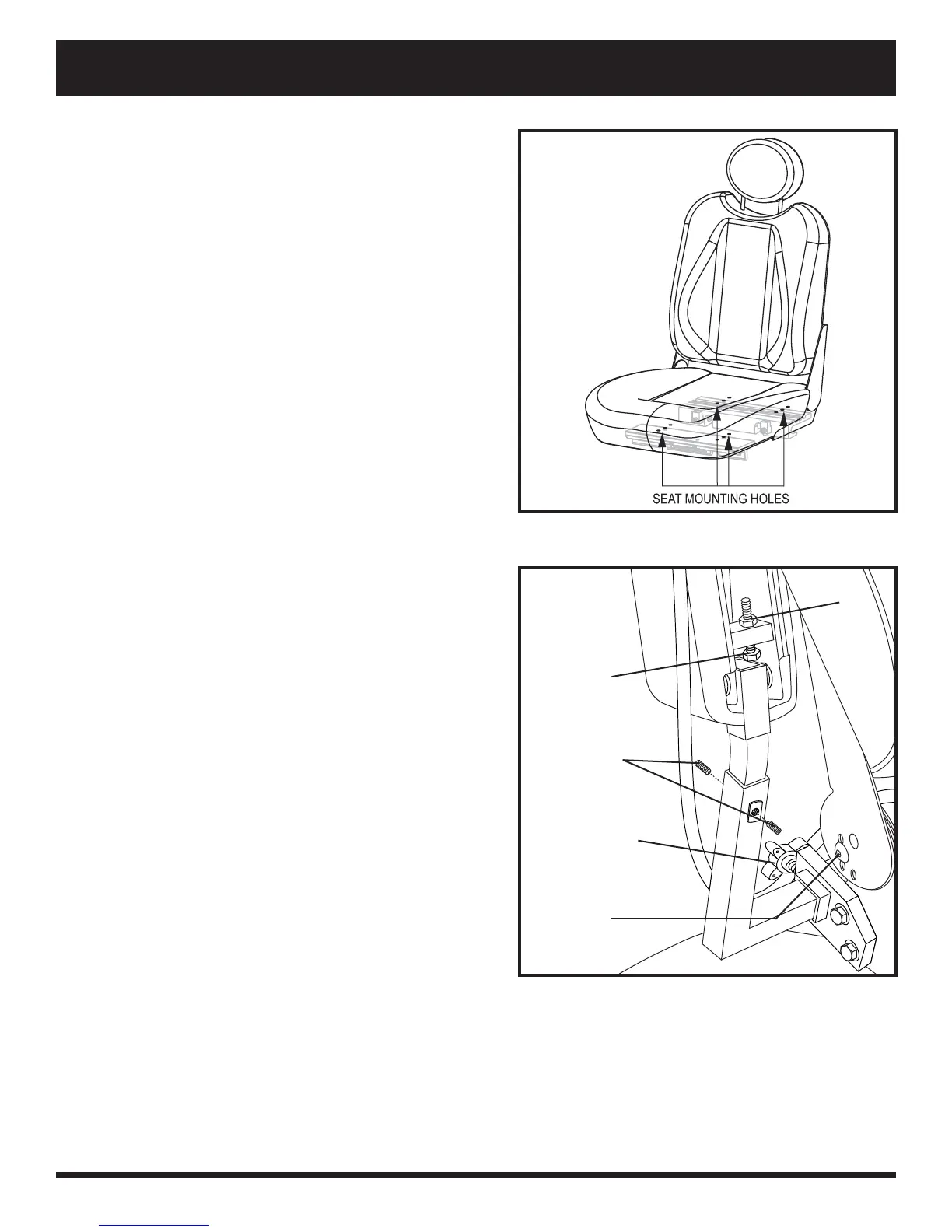

Figure 13. Seat Position Adjustment
Figure 14. Seatback Angle Adjustment
LOCKING NUT
ARMREST ANGLE
ADJUSTING
SCREW
SEATBACK
ANGLE
ADJUSTING
SCREW
ARMREST HEIGHT
ADJUSTMENT
SETSCREW
ARMREST KNOB
