8 www.pridemobility.com Quantum 610
III. YOUR POWER CHAIR

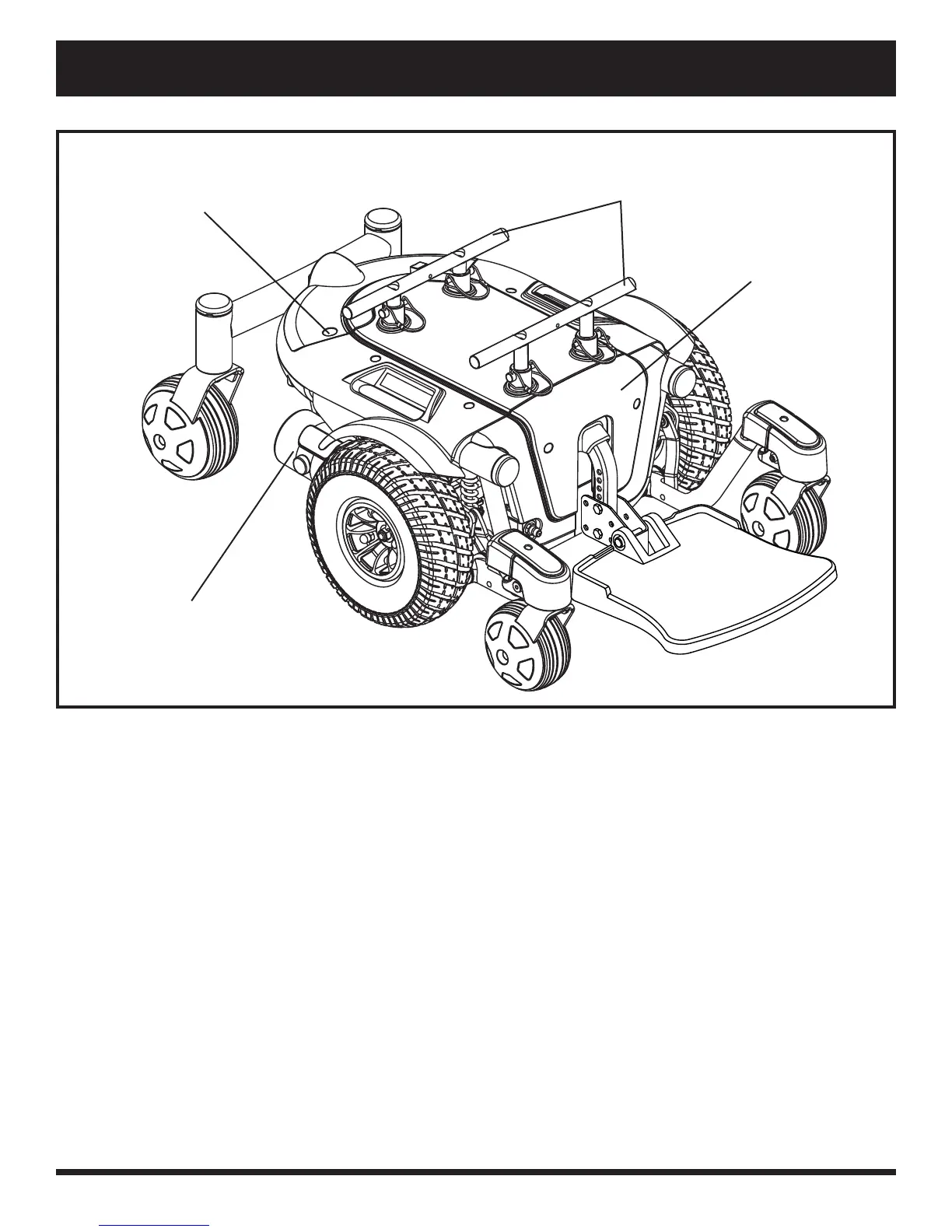

Figure 2. The Quantum 610 Series Power Base
Electrical Components
The electrical components are located inside the power base. The main circuit breaker is located on the front of
the battery tray. The controller connector(s) are located inside the power base. See fi gure 3.
Motor Connectors: This is where the controller connects to the motors.
Battery Connector: This is where the controller connects to the batteries.
Controller Connector: This is where the controller connects to the power base. Each controller uses a different
type of harness. Regardless of which type of controller is used, the harness must be secured to the seat assembly
and not allowed to drag on the fl oor.
FRONT COVER
TRAPEZE BARS
REAR SHROUD FASTENER
MOTOR/BRAKE ASSEMBLY
