Manual Calf Roping Chute
Operating Instructions (RC98M)
Roping Chute Hook-Up
The RC98M Roping Chute can attach to almost any steer alley or panel conguration with standard
chain connections. Lubricate all working parts including tailgate before operating the RC.
Use WD-40 or other light lubricant. Heavier oil collects dust and restricts proper operation.
Frequent lubrication will be necessary until excess paint is worn o working parts.
Note: Be aware of specic locations that should not be lubricated.
These locations are noted with decals stating DO NOT OIL
Roping Chute Operation

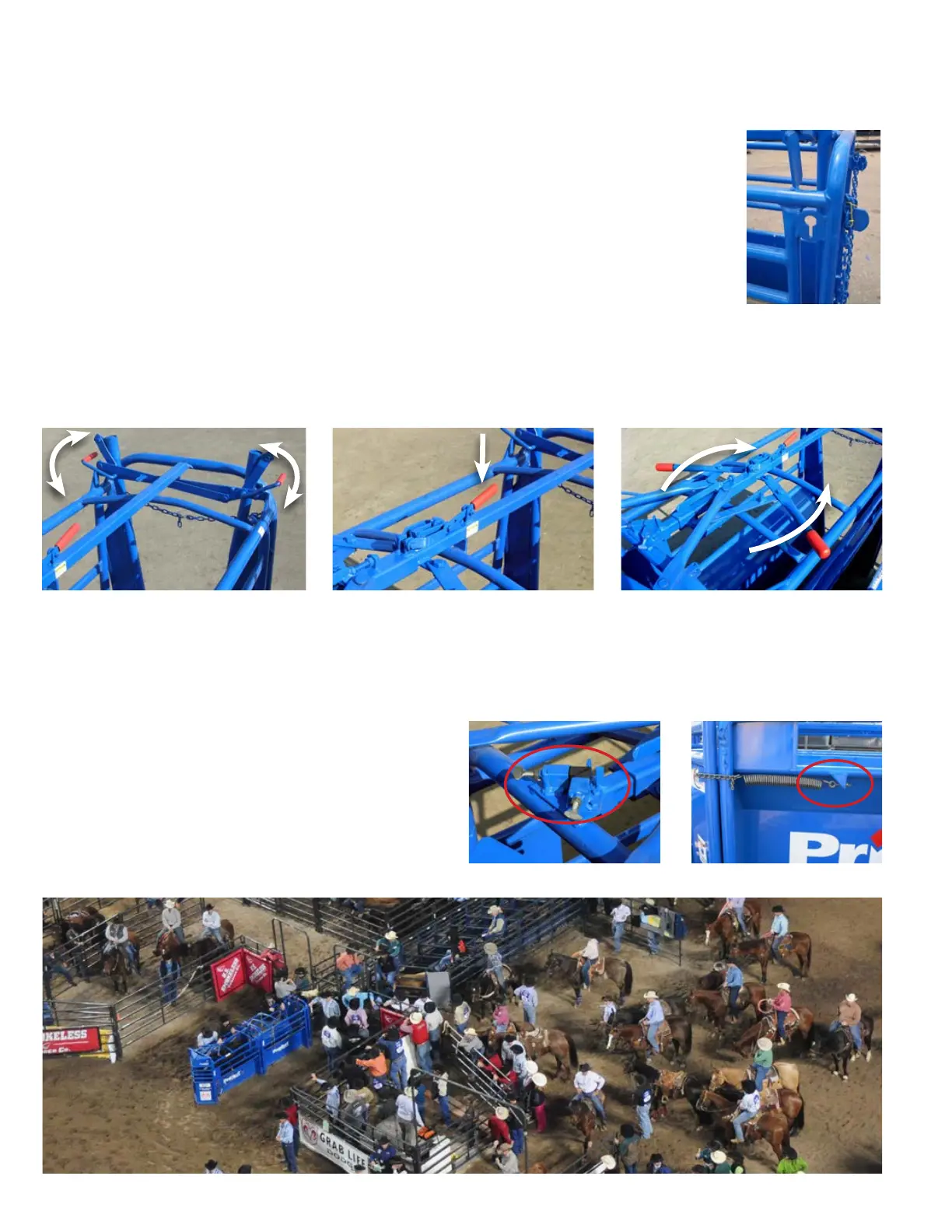

All of the RC98M controls are accessible from Header or Healer side.
Familiarize yourself with their operation using the illustrations provided below.
Front Gate Close Handle
Pull Handle back to close spring-
loaded front gate and reset for
next release.
Front Gate Release Handle
Push Handle down to open spring-
loaded front gate and release calf;
resets automatically.
Tailgate Handle
Pull Handle to open Tailgate and
allow steer to enter chute.
Push Handle to close Tailgate.
Front Gate Brake
The urethane brake system on top front of chute
& springs on each side of the chute are pre-
adjusted at the factory and should not need to be
adjusted until chute has considerable use on it.
