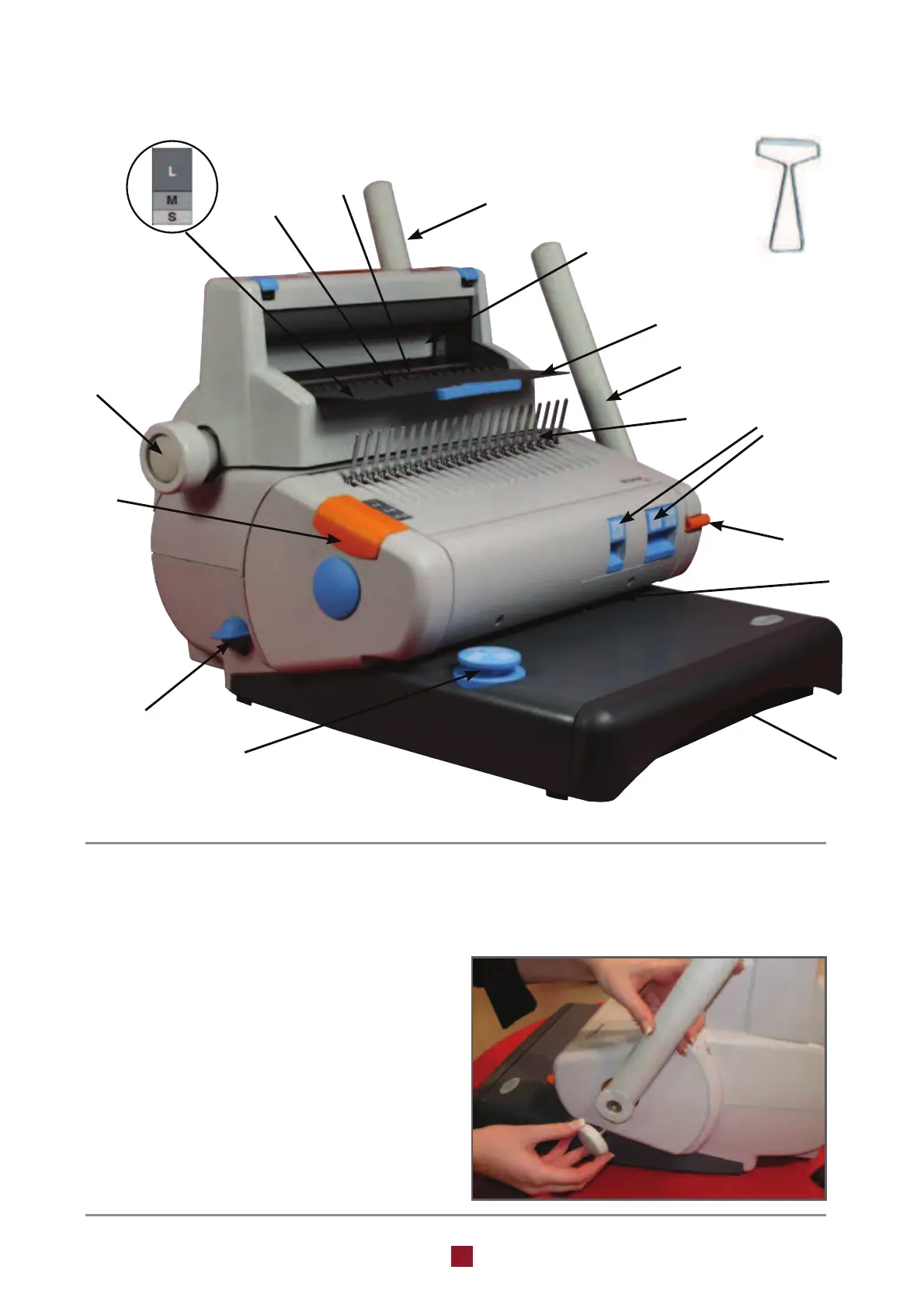

OPERA 42 COMPONENTS
1 – plastic comb diameter selector
2 – punches control deactivator
3 – plastic combs opening device
4 – paper comb binding operation handle*
5 – paper comb metal closing hatch
6 – paper comb binding slot
7 – paper comb lever*
8 – paper comb binding operation handle
9 – paper comb insertion guide
10 – paper comb size indicator
11 – opening and closing binding slot round knob
12 – punching margins distance indicator
13 – height booklet regulator control knob
14 – paper size control knob
15 – paper cutting drawer
16 – paper punching slot
17 - “manual pressure roller”
4
11
8
6
4
3
2
1
16
15
14
13
7
12
10
5
9
* LEVERS ASSEMBLING
Fit the lever in its appropriate place (12x12 axel) lo-
cated on the right side of the machine and fit it by
using the related threaded knob.
