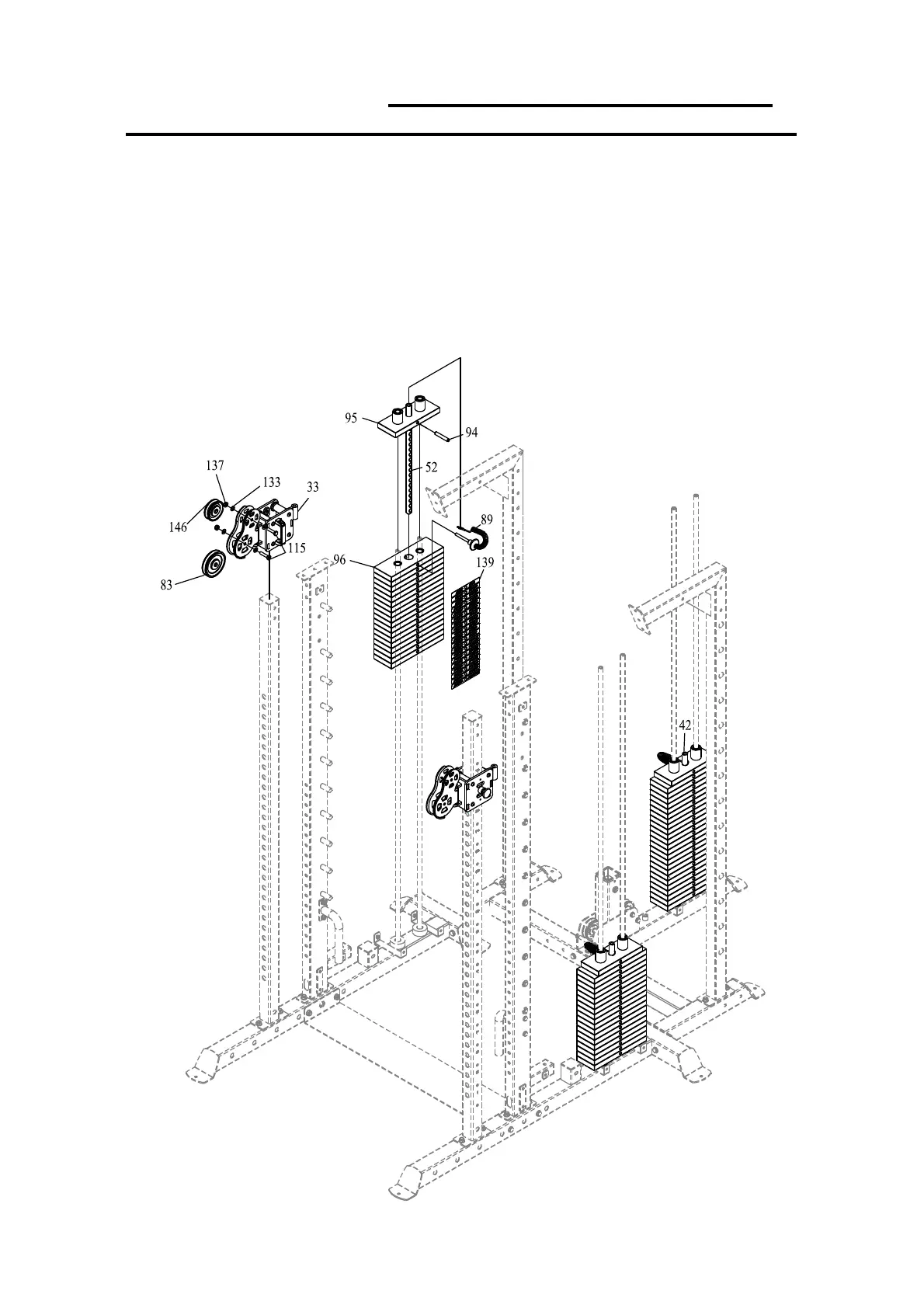

ASSEMBLY DIAGRAM 3 USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: Only hand tighten all nuts and bolts until whole machine is assembled
1.
AttachPULLEY&BIGPULLEY(146&83)toDOUBLEPULLEYBRACKET(33)withBOLTM10*50
(115),WASHER10(133)andLOCKNUTM10(137).
2.
InsertTOPPLATE(95)andWEIGHTPLATE(96)toGUDEROD(10)
3.
Insert WEIGHT SELECTOR B&A (52&42) to TOP PLATE (95) and WEIGHT PL ATE (96) with
ROUND SHAFT (94) and WEIGHT SELECT PIN (89).
( Attach WEIGHT LABELING (139)) to TOP
WEIGHT (95) and all WEIGHTS (96).
