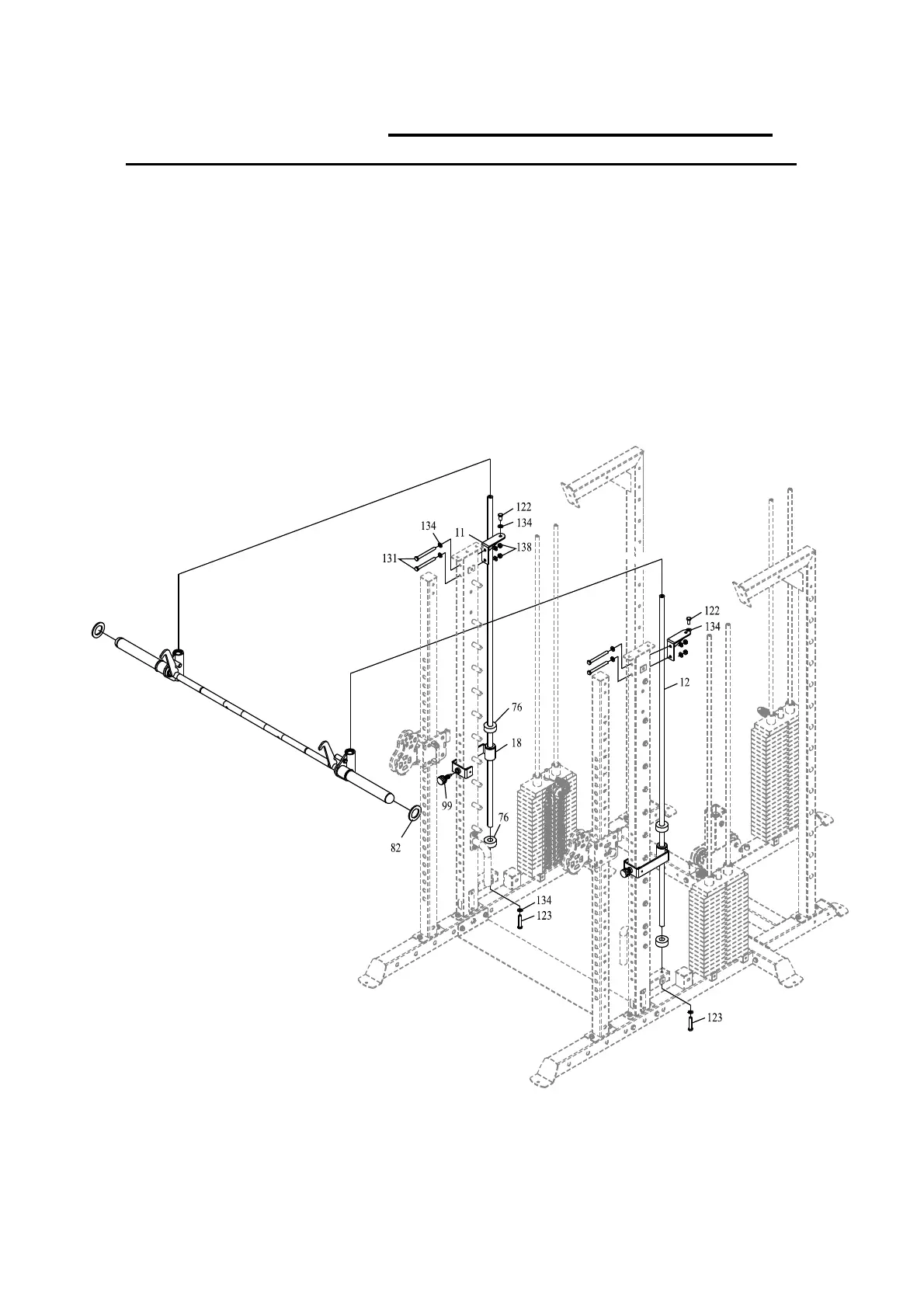

ASSEMBLY DIAGRAM 4 USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: Only hand tighten all nuts and bolts until whole machine is assembled
1.
InsertBUFFERSUPPORT(18)andRUBBERBUFFER(76)toSLIDEGUIDEROD(12)withFAST
PIN(99).AttachSLIDEGUIDEROD(12)toREARSLIDEFRAME(5)withBOLTM12*65(123)
andWASHER12(134).
2.
InsertLEFT&RIGHTSIDER(13&14)toSLIDEGUIDEROD(12).
3.
Attach BOTTOM HOLDER (11) to REAR SLIDE FRAME (5) and SLIDE GUIDE ROD (12) with
BOLTM12*120(131),BOLTM12*25(122),WASHER12(134)andLOCKNUTM12(138).
