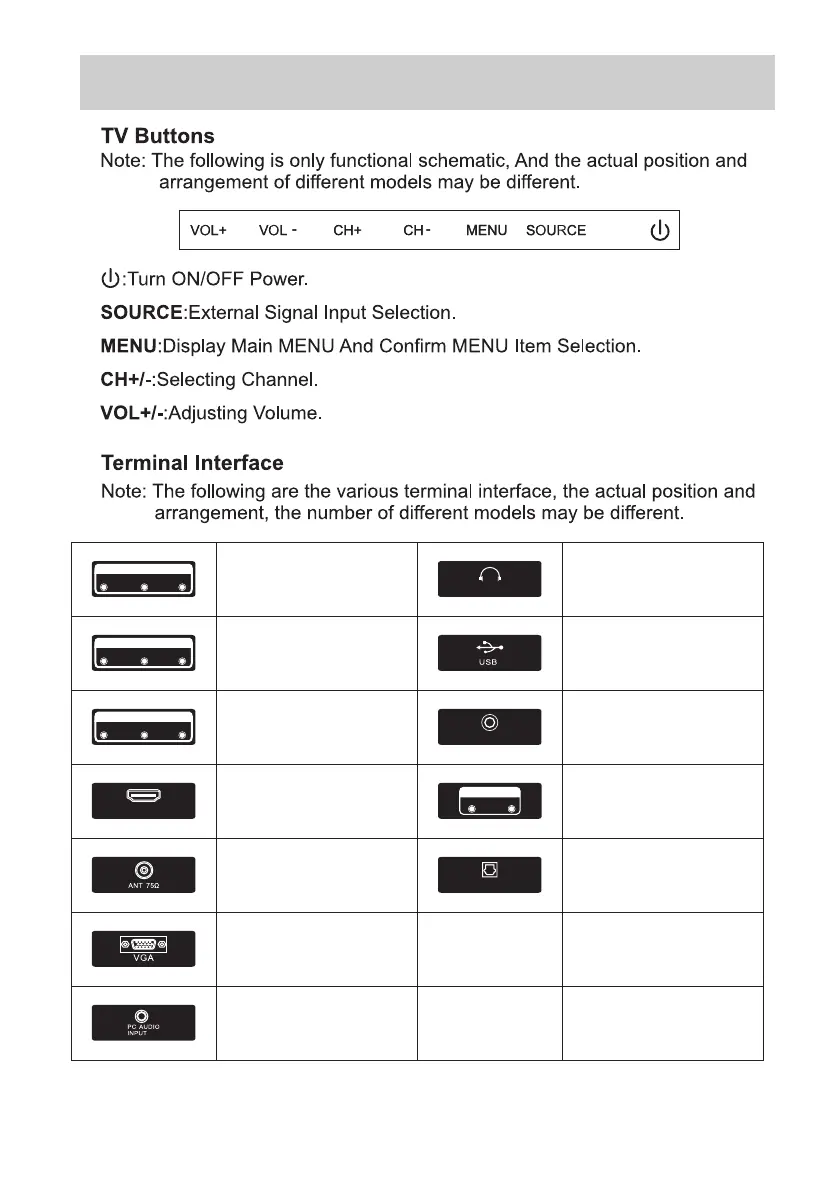

TV Buttons and Connections
AV input
External AV Signal Input and
Right/Left Audio Inputs.
AV Output
Right/Left Audio Outputs.
External AV Signal Output and
Component Input
Connect to a component output
connection on your external device.
HDMI Input(HDMI1,2,3)
Connect to a HDMI output
connection on your external device.
ANT 75/RF Connection
Connect to the antenna/cable TV
output of your device or wall plate.
VGA Input
Connect to your PC using a VGA
cable(not provided).
PC Audio Input
Connect to your PC Audio Out
using 1/8 line cord.
HEADPHONE JACK
Plug earphones into jack for private
listening. Overrides speakers.
USB Input
Connect to your USB device.
COAXIAL Output
Connect to your SPDIF device
Output
Audio Out Right/Left
Connect to your external device.
OPTICAL
Digital Audio Output.
Y Pb Pr
INPUT
VIDE O R L
OUTPUT
VIDE O R L
INPUT
OPTICAL
OUTPUT
R
L
COAXIAL
HDMI
8
HEADPHONE
