Description of device
GmbH 23560 HeartSave AED Trainer / GB / B02 7 / 24

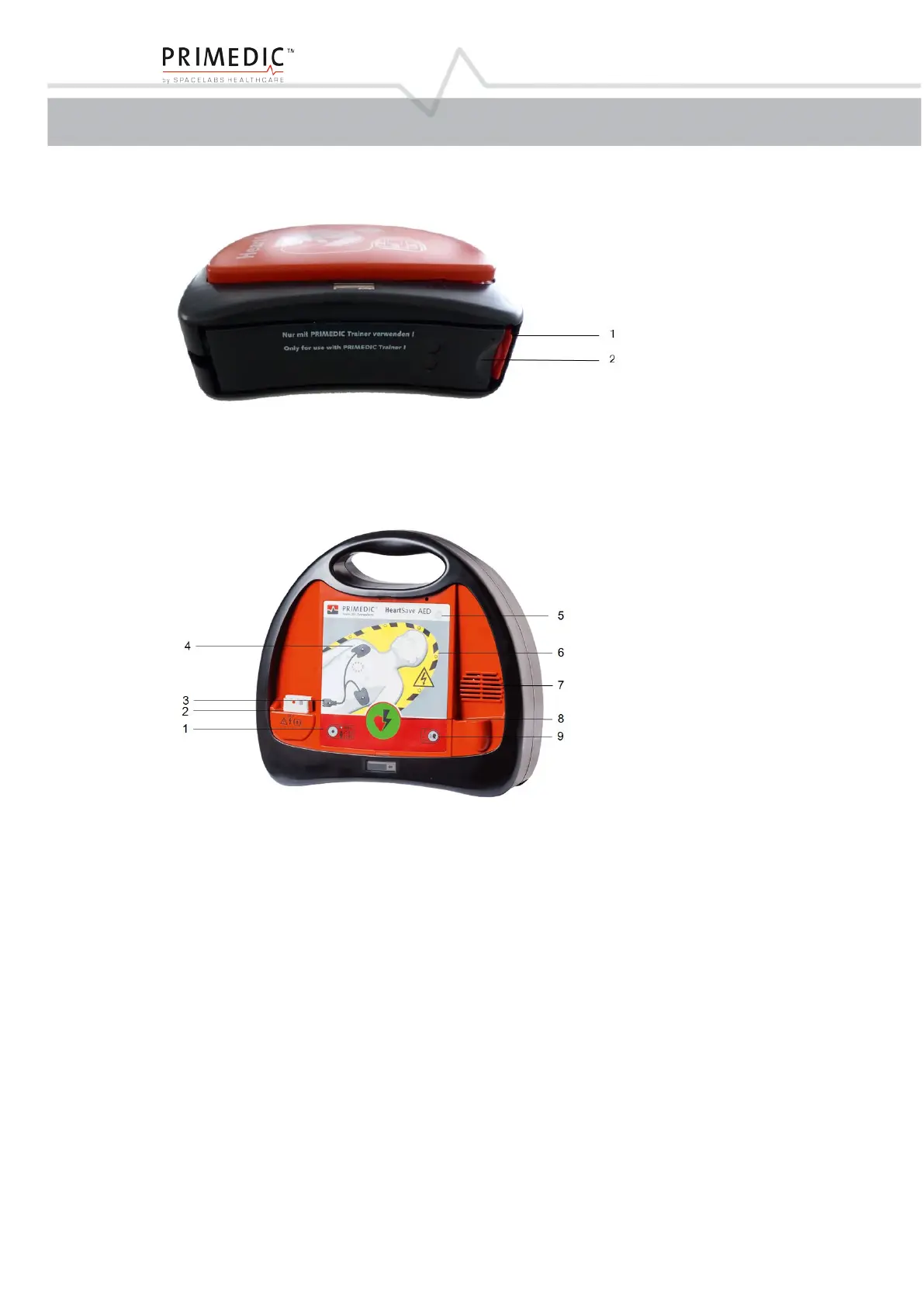

Fig. 3: Bottom view (with power module)
(1) Release button power module
(2) Power module
Fig. 4: Front View (similar)
(1) Pediatric button
(2) Jack for electrode connectors
(3) Connector symbol with LED
(4) Electrode symbol with LED
(5) On/Off switch
(6) "Do not touch patient" symbol (lights up during ECG analysis)
(7) Loudspeaker
(8) Shock button (release button for defibrillation)
(9) Language change button (When a training device without function)
