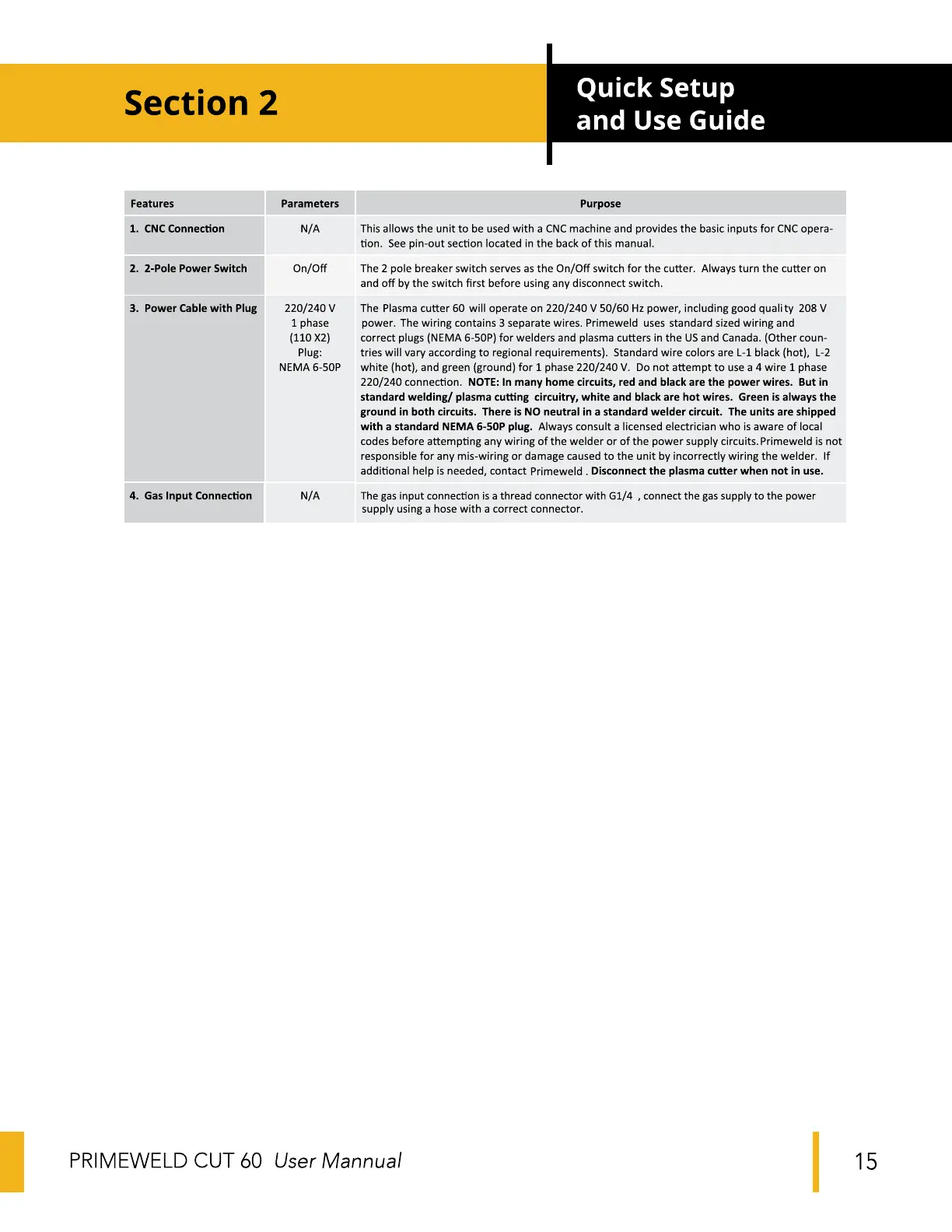

Section 2
Features
CNC Connection
1.
2-Pole Power Switch
2.
Power Cable with Plug
3.
4. Gas Input Connection
Parameters
N/A
On/Off
220/240 v
1 phase
(110 X2)
Plug:
NEMA 6-50P
N/A
Quick Setup
and Use Guide
Purpose
This allows the unit to be used with a CNC machine and provides the basic inputs for CNC opera-
tion. See pin-out section located in the back of this manual.
The 2 pole breaker switch serves as the On/Off switch for the cutter. Always turn the cutter on
and off by the switch first before using any disconnect switch.
The Plasma cutter 60 will operate on 220/240 V 50/60 Hz power, including good quality 208 V
power. The wiring contains 3 separate wires. Primeweld uses standard sized wiring and
correct plugs (NEMA 6-50P) for welders and plasma cutters in the US and Canada. (Other coun-
tries will vary according to regional requirements). Standard wire colors are L-1 black (hot), L-2
white (hot), and green (ground) for 1 phase 220/240 V. Do not attempt to use a 4 wire 1 phase
220/240 connection. NOTE: In many home circuits, red and black are the power wires. But in
standard welding/ plasma cutting circuitry, white and black are hot wires. Green is always the
ground in both circuits. There is NO neutral in a standard welder circuit. The units are shipped
with a standard NEMA 6-50P plug. Always consult a licensed electrician who is aware of local
codes before attempting any wiring of the welder or of the power supply circuits. Primeweld is not
responsible for any mis-wiring or damage caused to the unit by incorrectly wiring the welder. If
additional help is needed, contact Primeweld . Disconnect the plasma cutter when not in use.
The gas input connection is a thread connector with GI/4 , connect the gas supply to the power
supply using a hose with a correct connector.
PRIME-WELD CUT 60
User Mannual
15
