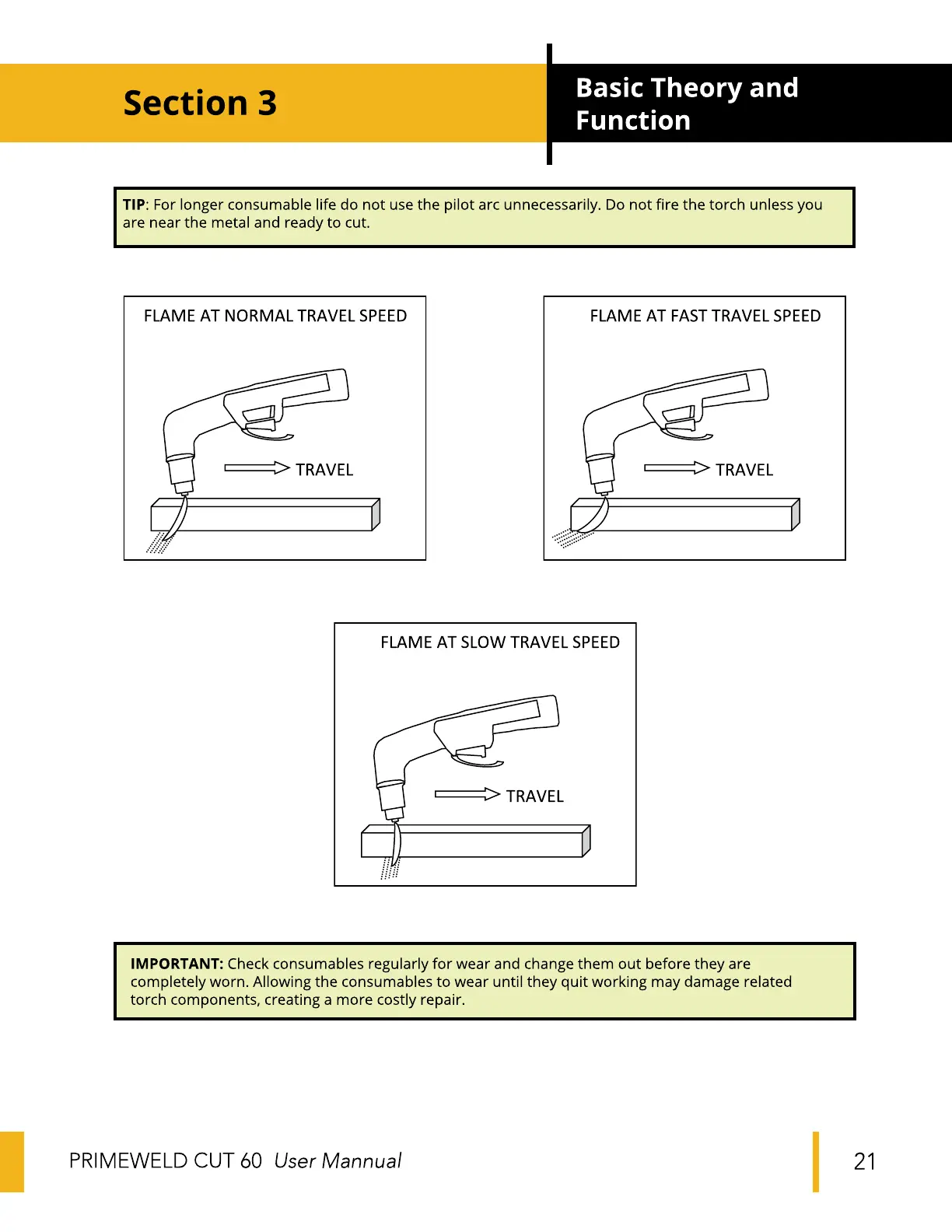

Section 3
Basic Theory and
Function
TIP: For longer consumable life do not use the pilot arc unnecessarily. Do not fire the torch unless you
are near the metal and ready to cut.
FLAME AT NORMAL TRAVEL SPEED
TRAVEL
FLAME AT FAST TRAVEL SPEED
TRAVEL
FLAME AT SLOW TRAVEL SPEED
TRAVEL
IMPORTANT: Check consumables regularly for wear and change them out before they are
completely worn. Allowing the consumables to wear until they quit working may damage related
torch components, creating a more costly repair.
PRIME-WELD CUT 60 User Mannual
21
