ASSEMBLING YOUR MARQUEE
Step 1 – The roof frame
Requires the following parts (please refer to parts list):
Part 1 – 1590mm galvanized pipe
Part 2 – 1940mm galvanized pipe
Part 4 – 120° 3 way connector
Part 5 – 120° 4 way connector
Part 12 – Screws
Please note: Make sure all pipes are pushed firmly into connectors otherwise the roof fabric will not fit.
a)To create the two end apex frames.

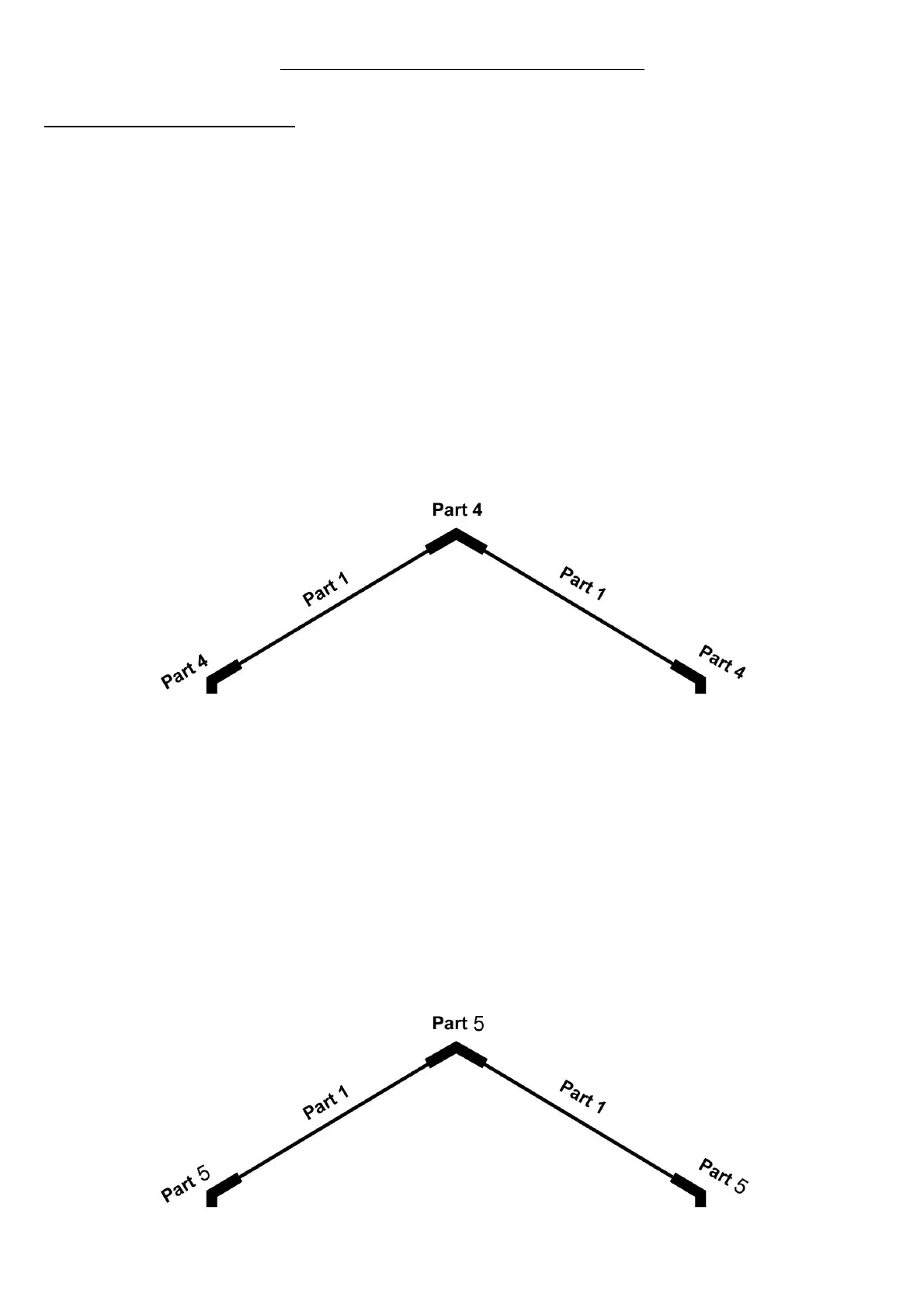

Lay all parts on the ground as shown in the diagram below.
Make sure that the frame is laying flat on the ground, if not then you may need to swap parts 4
over (parts 4 should now provide 3 vertical tubes facing upwards).
Attach poles (parts 1) to connectors (parts 4) using the small screws (part 12). Make sure that
the poles are fully inserted into the connectors before screwing in place.
Repeat for the other end. You should now have two assembled end roof frames.
b) Create the central apexes.
Assemble the central apexes as per the diagram.
