The number of central apexes that you will have to construct depends on the size of your
marquee:
Marquee Size Number of Central Apexes
3m x 10m 4
3m x 8m 3
3m x 6m 2
3m x 4m 1
Unlike the two end apexes that you have just constructed, these middle frames will not lay flat
on the ground.
Attach poles (parts 1) to connectors (parts 5) using the small screws (part 12). Make sure that
the poles are fully inserted into the connectors before screwing in place.
Repeat for the remaining central apexes. You should now have assembled all of the roof frames.
Please refer to the table above.
c) Join the roof frames together.
Connect all of the central and end apexes together using poles (part 2) and small screws (part
12). It is easiest to start from one end and work your way to the other and to insert the top most
poles first to give your frame stability when erecting. It is also recommended that you assemble
your roof frame in the exact location that you intend your marquee to stand.

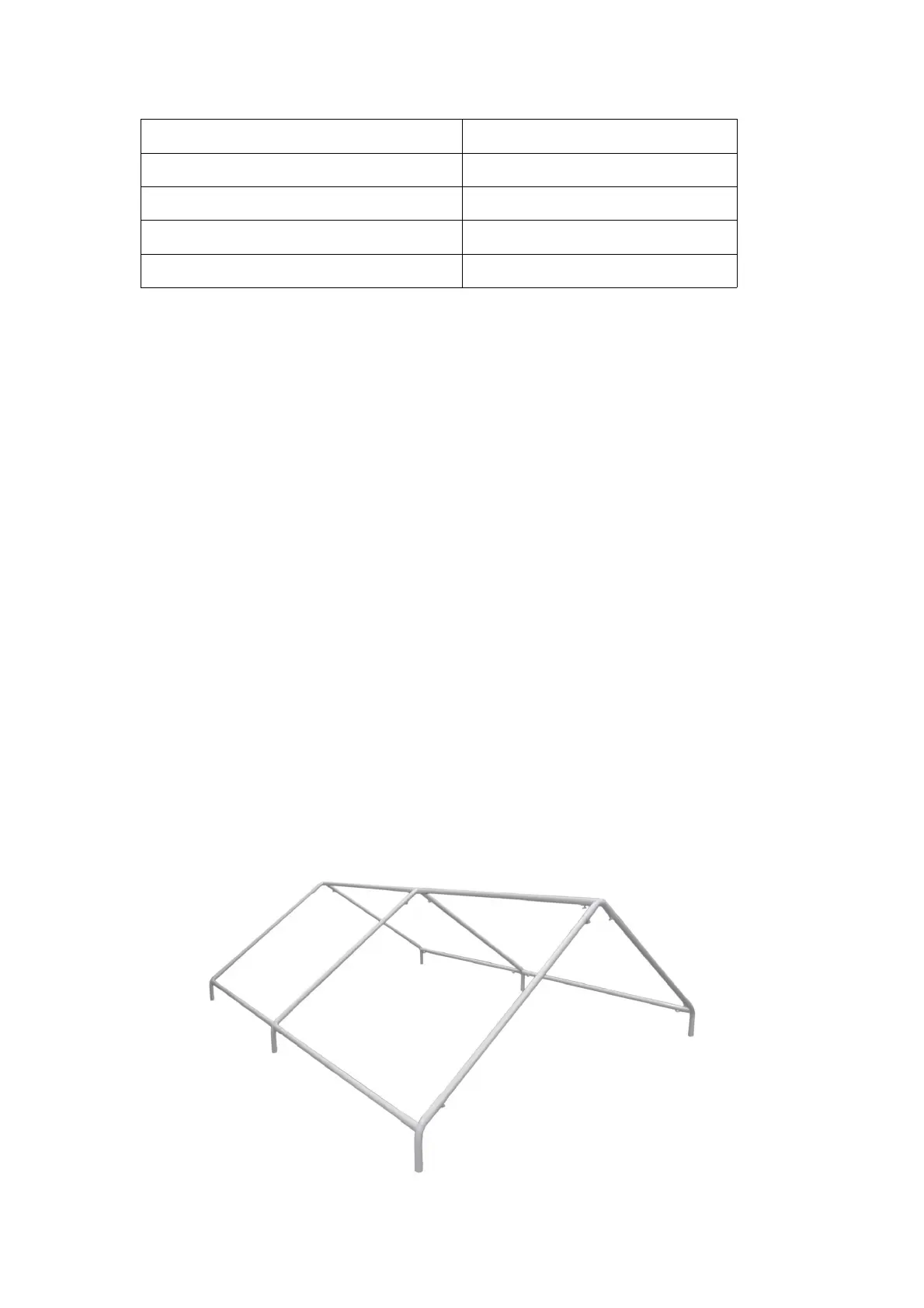

The picture below shows the roof frame for a larger 4m x 4m marquee, with 2 end apexes and 1
central apex.
