12 INSTALLATION AND MAINTENANCE MANUAL PUBLICATION DATE 03/02 504 766

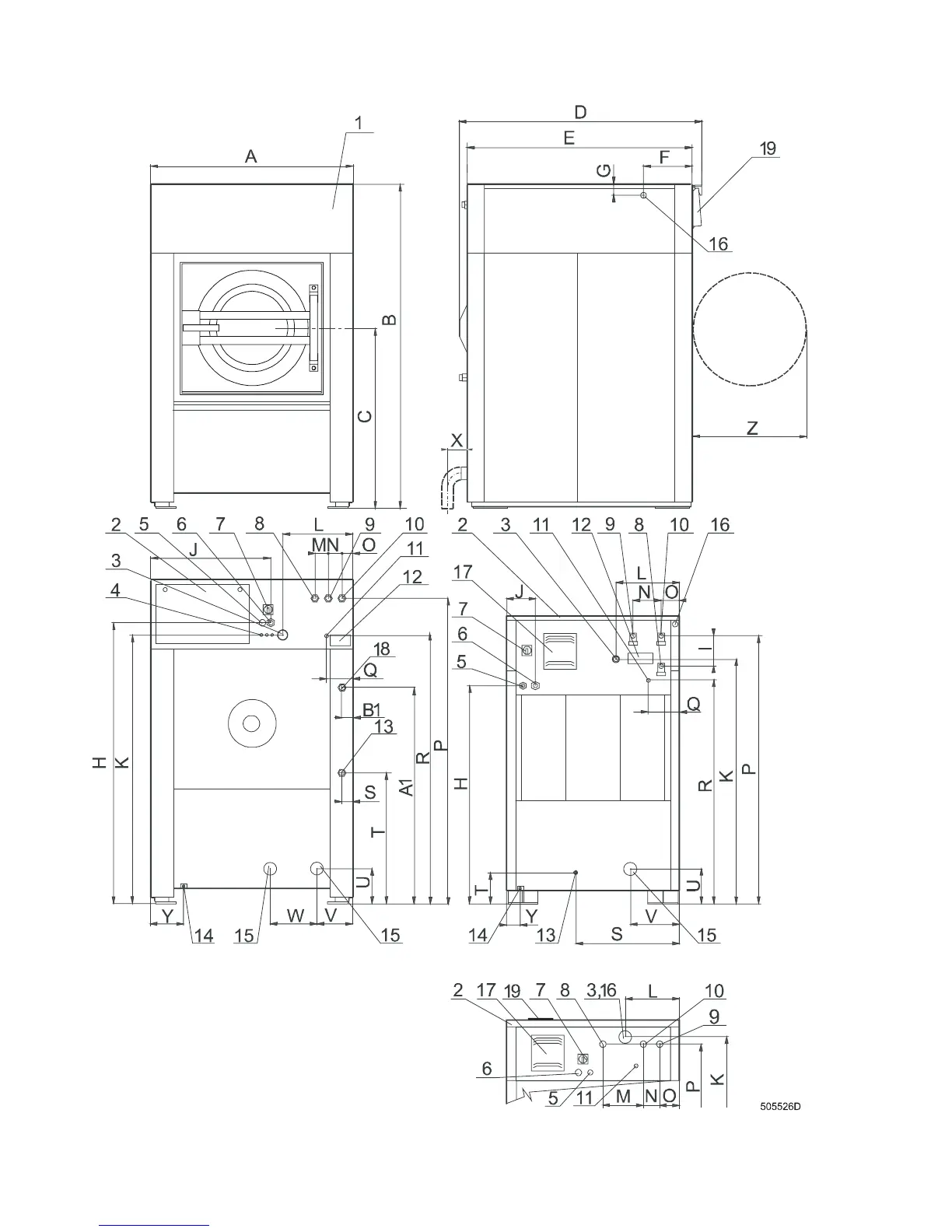

3.5. DIMENSIONS AND CONNECTIONS OF THE MACHINE
33/40/55 kg 80/100/125 lbs 22 kg / 50 lbs - „5 soaphoppers“
22 kg / 50 lbs - „3 soaphoppers“
Fig. 3.5.
