525928 Instruction AC-reactor FS16-55 RS27-35 P4/15

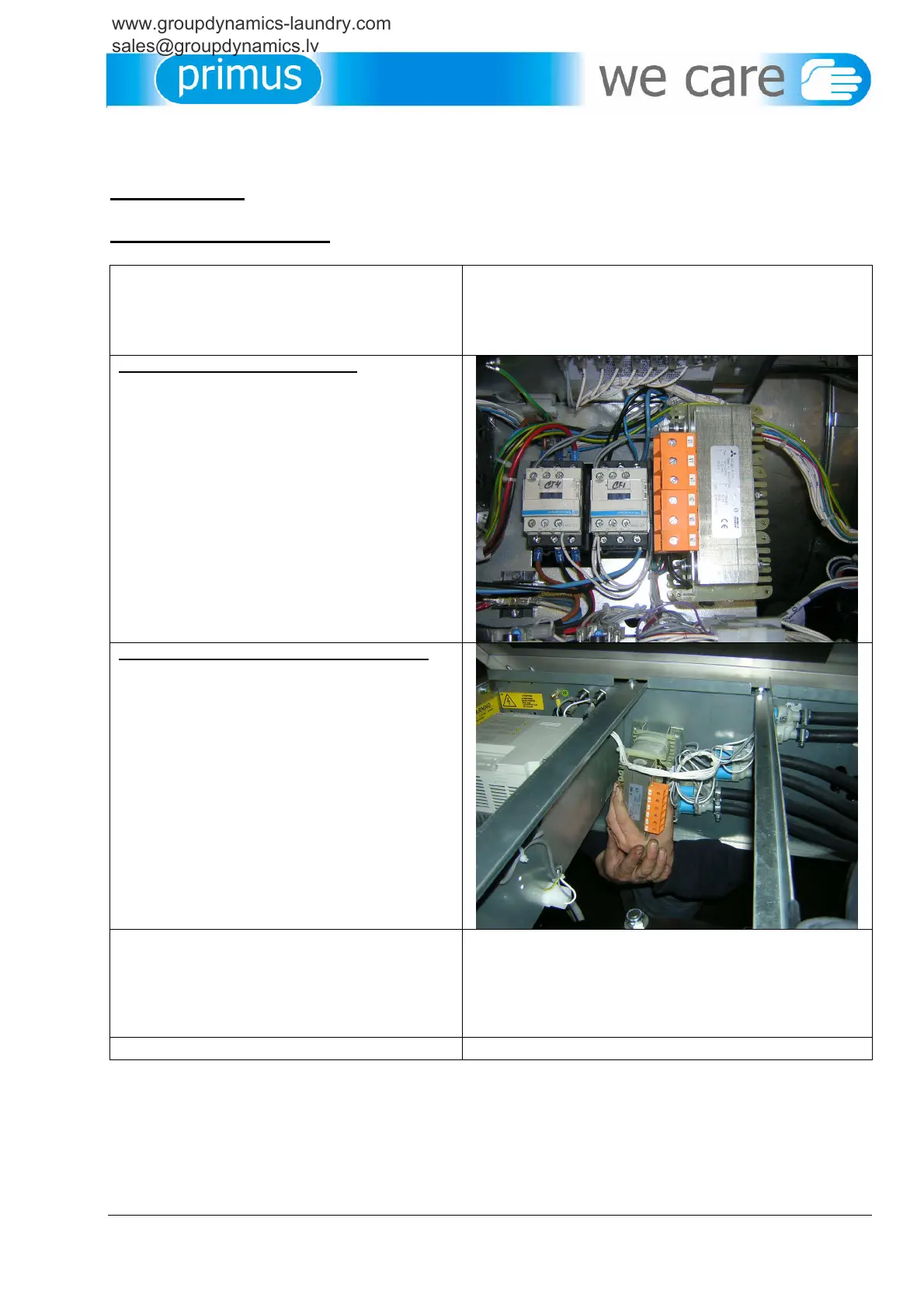

4) Instructions:
4.a) Instruction for FS16:
Place the AC-reactor on a suitable place in the
machine.
1-ph inverter (standard version):
Mount the AC-reactor in the contactor box. Move
the wirings where necessary.
3-ph inverter (3x380-480V without N only):
Since there is used a transformer for the control
circuit, it is not possible to mount the AC-reactor
in the contactor box.
Therefor mount the AC-reactor on the rear-
bridge, beside the water valves.
Drill 4 holes (diam. 10mm) and fix the AC-
reactor with the included bolts and nuts.
Make sure that no burs from the drilling can
enter the frequency inverter or other
components.
