This document provides assembly, installation, and maintenance instructions for a mini bike, specifically the DRIFTHERO model. It covers various aspects from uncrating to starting the engine, along with important safety warnings and technical specifications.

Function Description

The DRIFTHERO mini bike is a personal recreational vehicle designed for off-road use. It features a compact design with an internal combustion engine, a chain drive system, and front and rear suspension (implied by fork and axle assembly). The manual guides users through the process of assembling the bike from its crated state, installing key components like the engine, front fork, front rack, fender, and wheels, and preparing it for operation by adjusting brakes, throttle, and filling with oil and fuel. It also outlines essential pre-ride checks and maintenance procedures to ensure safe and reliable operation.

Important Technical Specifications

Engine:

Oil Type: SAE 10W-30 Motor Oil.
Oil Capacity: 0.63 quarts (0.6 liters).
Fuel Type: Clean unleaded regular gasoline with a minimum octane rating of 86 or higher.

Fasteners and Torque Specifications:

M8*16 Bolts (Engine Assembly): Torque 13-18 ft.lbs.
M5/16-24*4/3 Bolt (Clutch): Torque 13-18 ft.lbs.
M8*30 Bolt (Engine Mount): Torque 13-18 ft.lbs.
M8*20 Bolt (Jackshaft to Frame Mount): Torque 13-18 ft.lbs.

Tires:

Front Tire Pressure: 10 psi.
Rear Tire Pressure: 10 psi.
Front Tire Orientation: Arrow on tire must face forward.

Chain:

Chain Tension (Slack): 1/2 - 3/4 inches (15-20 mm).

Brakes:

Front Brake Lever Free Play: 2.0 - 4.0 mm (0.08 - 0.16 inches).

Throttle:

Throttle Grip Free Play: 0.078 - 0.24 inches (2-6 mm).

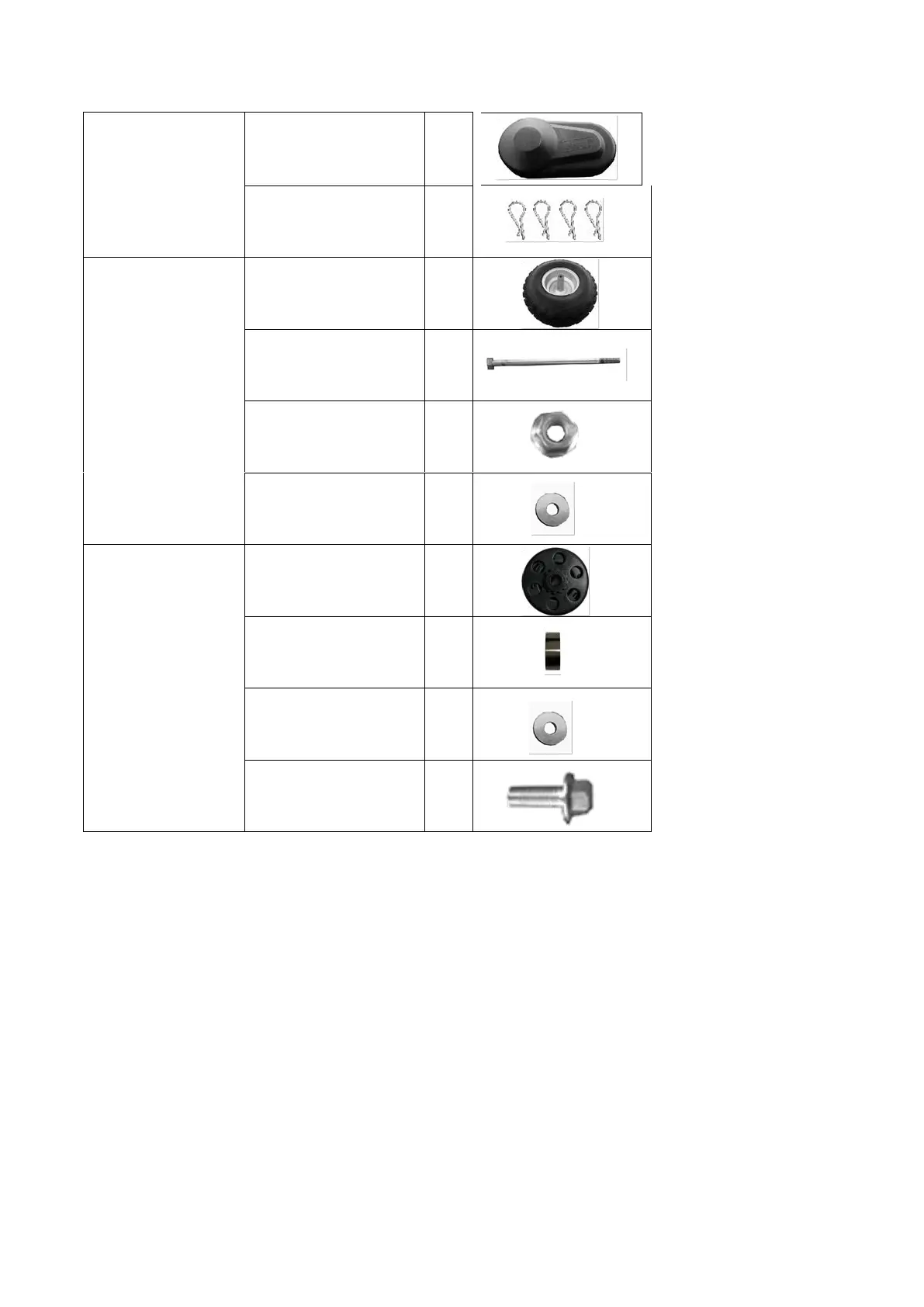

Components Included (Partial List from "REMOVAL FROM CRATE" section):

Front Fork Assembly Hardware: M10 Steering Bolt (1), 10mm Washers (2), M10 Self-Lock Nut (1).
Front Rack and Fender Assembly: Front Rack (1), Front Fender (1), M8*20 Bolt (4), M8 Nuts (4), 8mm Washers (2).
Engine Mount Bolt: M830 Bolt (4), M820 Bolt (1), M8 Nuts (5), 8mm Washers (1).
Clutch Cover: Clutch Cover (1), Clevis Pins (4).
Front Wheel Assembly: Front Wheel (1), M14 Axle Bolt (1), M14 Self-Lock Nut (1), 14mm Washer (2).
Clutch Assembly: Clutch Assy (1), Clutch Bushing (1), 6mm Washer (1), M5/16-24*4/3 Bolt (1).
Cables: Zip Ties (2).

Usage Features

Assembly Process:

Engine Installation: Involves installing the jackshaft, tightening engine assembly bolts, installing the clutch with specific components (clutch bushing, clutch, washer, bolt) in a precise order, and connecting the drive chain. The engine is then mounted to the frame, and the chain is tightened by moving the engine forward.
Wire and Cable Securing: Mounting the throttle cable to the engine bracket, connecting the ON/OFF switch wire, and ensuring all cables (ON/OFF switch, throttle, brake) are not kinked and allow free movement of the handlebars. Zip ties are provided for securing wires and cables to the frame.
Front Fork Installation: Involves inserting the 10mm steering bolt through the top bracket, small 10mm washer, steering neck, large 10mm washer, bottom bracket, large 10mm washer, and lock nut, then tightening the nut.
Front Rack and Fender Installation: Attaching the front rack to the steering column assembly using 8mm x 20mm bolts and 8mm nuts. The front fender is attached with 8mm x 20mm bolts, large 8mm washers, and 8mm nuts, with a note that a small portion of the fender faces forward.
Front Wheel Installation: Orienting the front tire so the arrow faces forward, inserting the axle bolt with 14mm washers between the forks and wheel assembly, and installing and tightening the 14mm lock nut.
Clutch Cover Installation: Installing the clutch cover over the 4 bracket tabs on the clutch assembly and securing it with clevis pins.

Starting the Engine:

Fuel Valve: Place to "ON" (right) position.
Choke Lever: If cold, place to "ON" (left) position; return to "OFF" (right) once warmed up.
ON/OFF Switch: Place to "ON" position on the handlebars.
Starter: Pull the starter recoil cord.

Maintenance Features

Engine Oil:

Initial Check: Mini bike may have oil from the factory, but it's recommended to drain and replace with new SAE 10W-30 Motor Oil.
Changing Oil: Remove oil fill plug (1) and drain bolt (2). Allow oil to drain into a container and dispose of it properly. Install drain plug, fill with 0.63 quarts (0.6 liters) of SAE 10W-30 motor oil up to the brim of the fill hole. Re-install fill cap, run engine for a few minutes, then re-check and refill if necessary.
Caution: Do not over or underfill with motor oil.

Fuel:

Type: Use clean unleaded regular gasoline with a minimum octane rating of 86 or higher.
Filling: Fill up to the bottom of the filler neck.
Caution: Never use leaded gasoline as it can damage the engine and affect emissions.

Tire Pressure:

Check: Always check tire pressure before each ride. Incorrect pressure affects handling, comfort, steering, tire life, and traction.
Recommended Pressure: 10 psi for both front and rear tires.

Chain Tension:

Check: The chain tension (slack) should be 1/2 - 3/4 inches (15-20 mm).
Adjustment: Loosen bolt (2) on the rear axle assembly. Adjust tension by turning tension nuts (3) (located on both sides of the mini bike). Clockwise tightens, counter-clockwise loosens. Re-tighten axle bolt (2) once tension is correct, then re-check.

Brake Adjustment:

Brake Lever Free Play: The front left brake lever (1) should have 2.0 - 4.0 mm (0.08 - 0.16 inches) of free play.
Lever Adjustment: Loosen jam nut (2) on the brake cable. Turn adjuster nut (3) until correct free play is achieved. Re-tighten jam nut (2).
Rear Brake Adjustment: Loosen the rear axle bolt (4). Locate adjustment nut (5) on the rear brake drum assembly. Turn nut (5) clockwise to increase braking, counter-clockwise to decrease braking.

Throttle Adjustment:

Throttle Grip Free Play: The hand grip throttle free play (2) should be 0.078 - 0.24 inches (2-6 mm).
Adjustment: Loosen jam nut (3). Turn adjusting nut (4) to the proper setting. Once free play is correct, re-tighten jam nut (3).

Pre-Ride Inspection (CHECKLIST):

Steering: Smoothness, no restriction of movement.
Brakes: Proper brake lever play.
Tires: Proper tire pressure.
Fuel Tank: Enough fuel, secure fuel cap, no signs of cracks or leaks in hoses.
Throttle Grip: Snaps back to idle when released, operates freely, has correct free play.
Engine Stop Switch: Shuts off engine when activated.
Engine Oil: Correct oil level.
Drive Chain: Proper tension, lubricated.
General Condition: Cotter pins on axle, all nuts and bolts tight, no rattles from engine or frame.

Safety Warnings:

Owner's Manual: Never attempt to start the mini bike without reading and understanding the owner's manual.
Pre-Ride Inspection: Always perform a pre-ride inspection to prevent injury or being stranded. Failing to inspect and maintain the mini bike could be hazardous.
Engine Operation: Never start or run the mini bike in an enclosed environment (garage, shed) due to hazardous exhaust fumes. Always start and run outdoors.
Maintenance: Performing maintenance and checks while the engine is running could be hazardous due to moving parts and hot surfaces, with the exception of checking the engine stop switch or throttle.
