Prisma JAGUAR - Connection and Initial Setup; Start-Up Procedure

DRIVE “JAGUAR REPLACEMENT KIT”
D / 1
WITHOUT OUR CONSENT THE REPRODUCTION OR COMMUNICATION TO THIRD PARTIES IS PROHIBITED BY LAW
ANNEXE “A”
SUBJECT TO CHANGE WITHOUT NOTICE
Connection
1- START UP

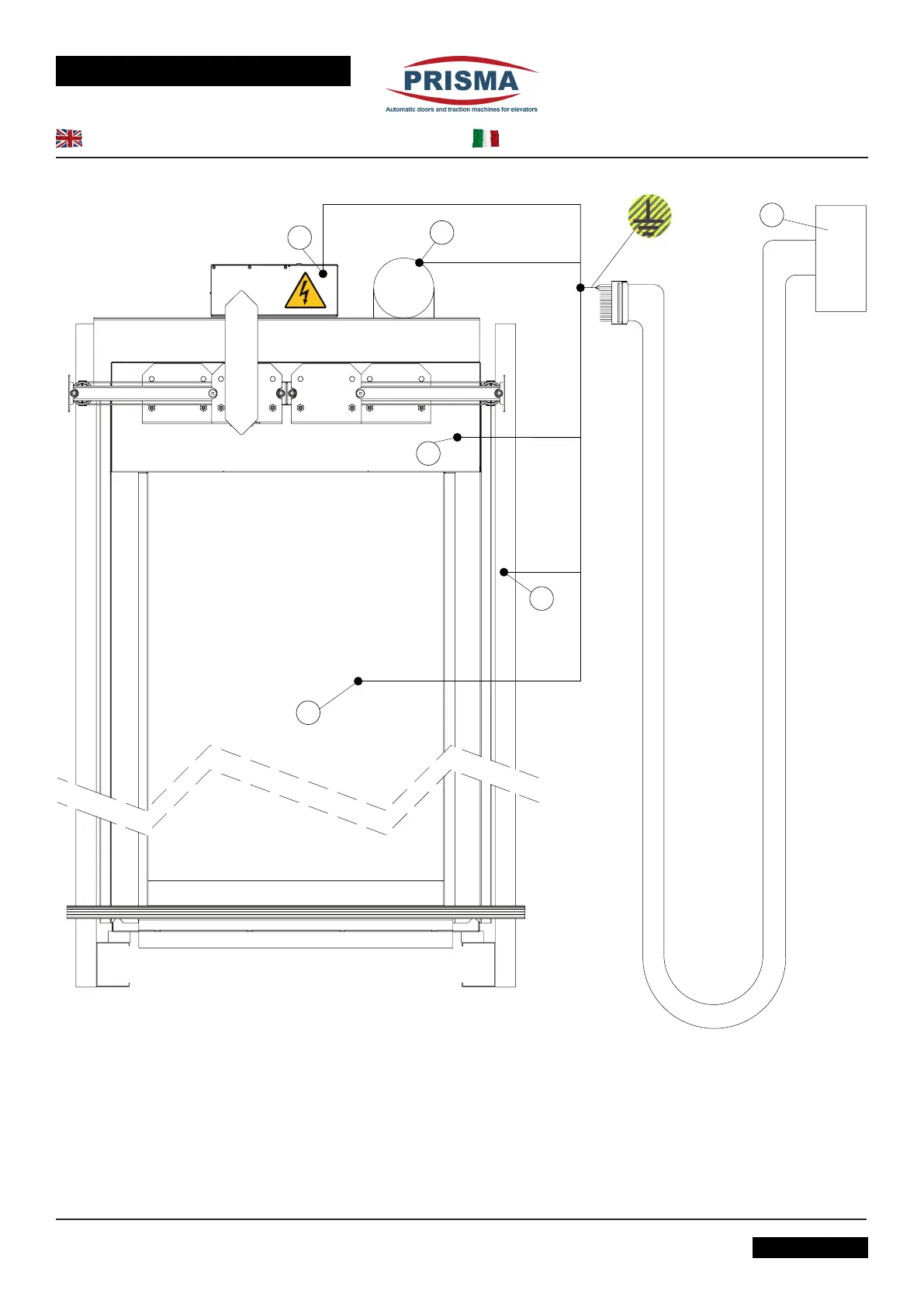

Before supplying power to the drive, ground the following
elements through the main-grounding of the lift control
panel (6):
1) Drive
2) Motor
3) Operator
4) Car
5) Sling
*ground both the yellow/green power supply cable as well
asthebrassnutalreadyxedonthedrivecasing.
M
1
2
3
4
6
5
A TERMINE DI LEGGE E’ VIETATA LA RIPRODUZIONE O COMUNICAZIONE A TERZI SENZA NOSTR A APPROVAZIONE
ALLEGATO “A”
SOGGETTO A MODIFICHE SENZA PREAVVISO
31_42_01_01REV03
Collegamento
1-MESSA IN SERVIZIO
Prima di alimentare il drive collegare a terra i seguenti
elementi mediante la massa principale del’impianto (6):
1) Drive
*
2) Motore
3) Operatore
4) Cabina
5) Arcata
*
collegare a massa sia il lo giallo/verde del cavo di
alimentazionesiailbullonediottonessatoalconteni-
tore.
